ECON Switch Test: Test

ECON Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

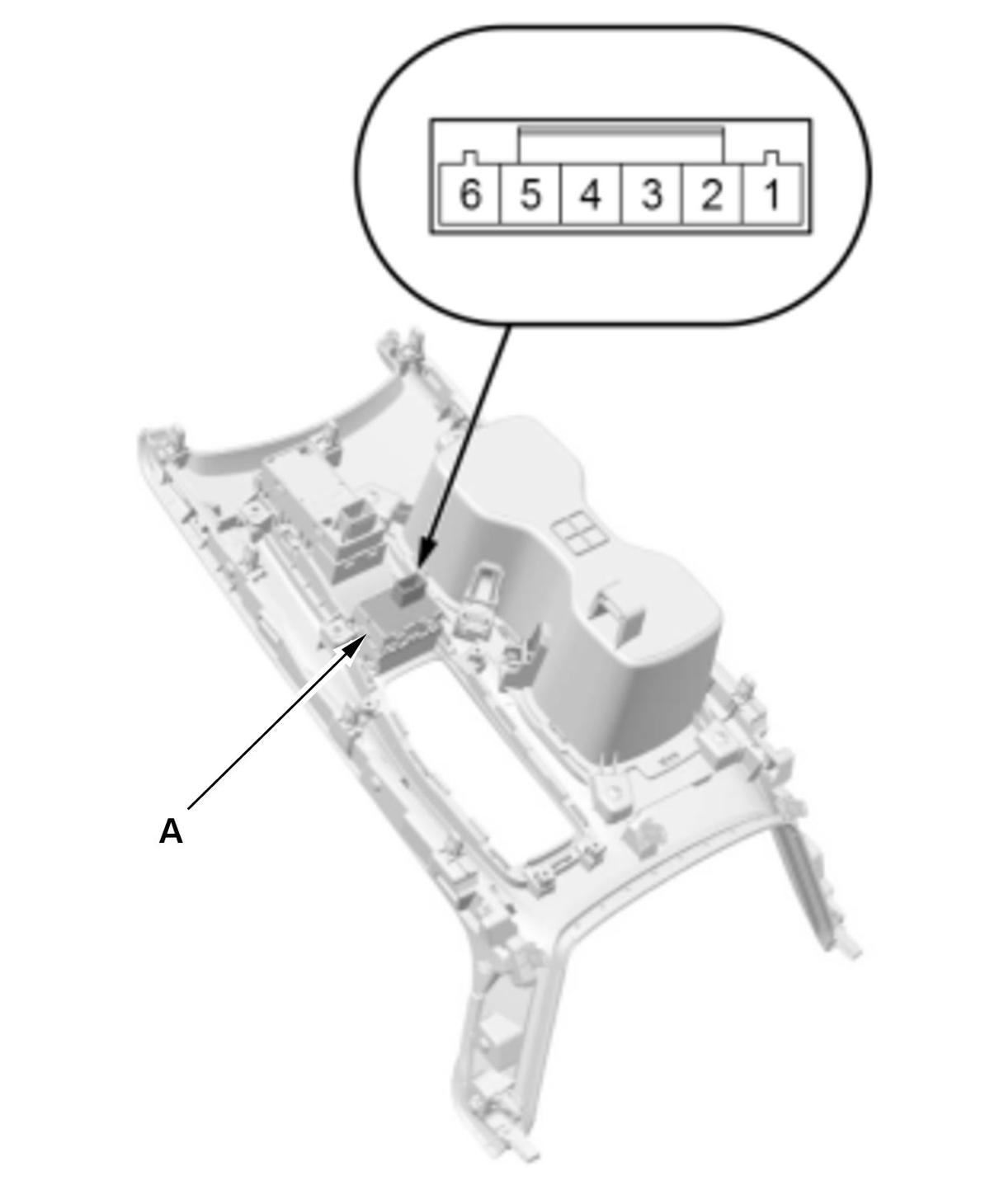

M/T Without Idle Stop Off Switch and Sport Mode Switch

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

CVT Without Idle Stop Off Switch and Sport Mode Switch

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

With Idle Stop Off Switch and Sport Mode Switch

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

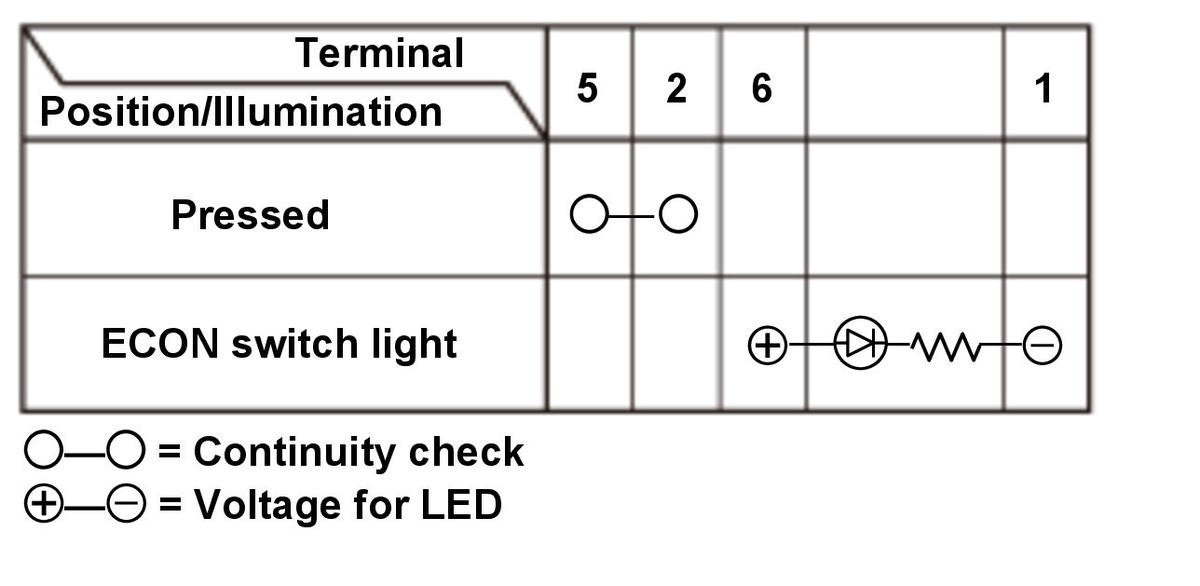

1. Check the ECON switch (A) according to the table.
NOTE:

When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
