Entering the Self-Diagnostic Function (Manual Method)
Before doing the self-diagnostic function, make sure the No. A27 and No. B36*1/ No. C6*2 fuses are OK.
*1: Without auto idle stop system
*2: With auto idle stop system

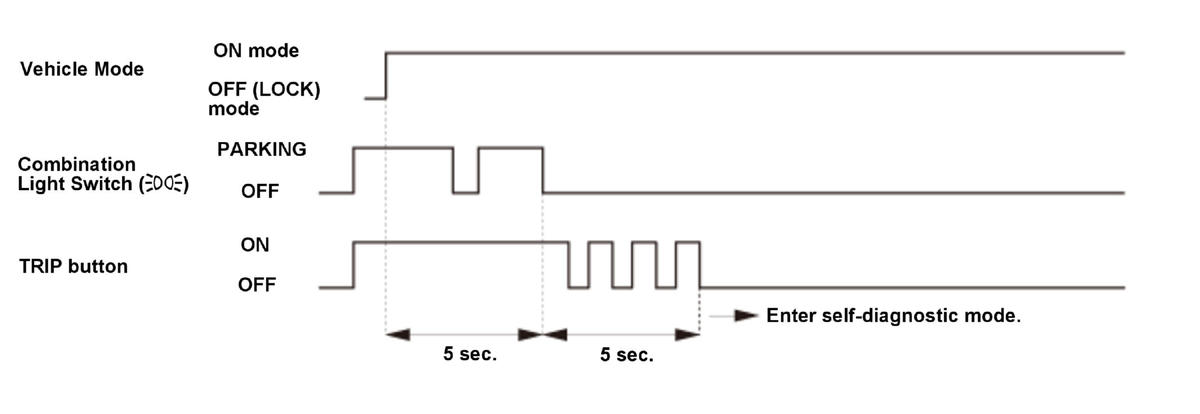

1. Push and hold the TRIP button.
2. Turn the combination light switch to the PARKING position (
).
3. Turn the vehicle to the ON mode.
4. Within 5 sec., turn the combination light switch to OFF, then to the PARKING position (
) and OFF again.Within 5 sec., release the TRIP button, and then repeatedly push and release the button three times.
NOTE:
- While in the self-diagnostic mode, the dashlights brightness controller operates normally.
- While in the self-diagnostic mode, the TRIP button is used to start the Beeper Drive Circuit Check and the Gauge Drive Circuit Check.
- If the vehicle speed exceeds 1.2 mph (2 km/h), or turn the vehicle to the OFF (LOCK) mode, the self-diagnostic mode ends.
