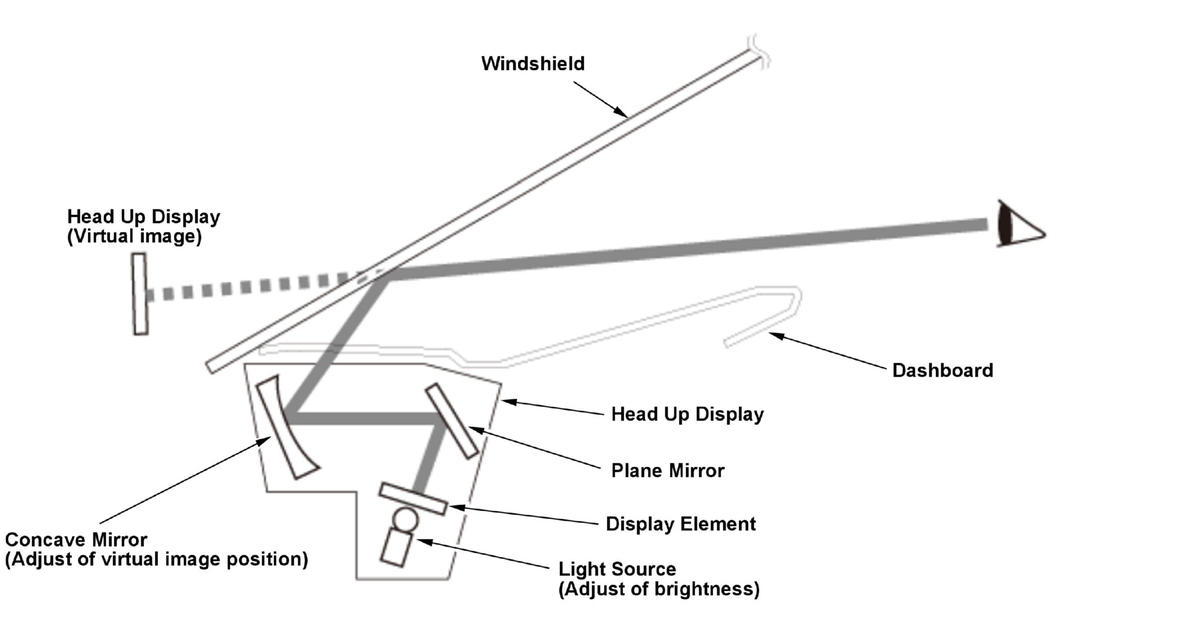

Head Up Display System Description - Components
Head Up Display Main Switch
HUD Switch
The virtual image is turned ON/OFF using the switch.
Up Switch/Down Switch
The virtual image position and brightness can be changed using the switch.
Head Up Display Sub Switch
The head up display sub switch is built into the ACC combination switch. Selects the mode of head up display.
