Safety Indicator System Component Location Index

Without Multi-Information Display (MID)

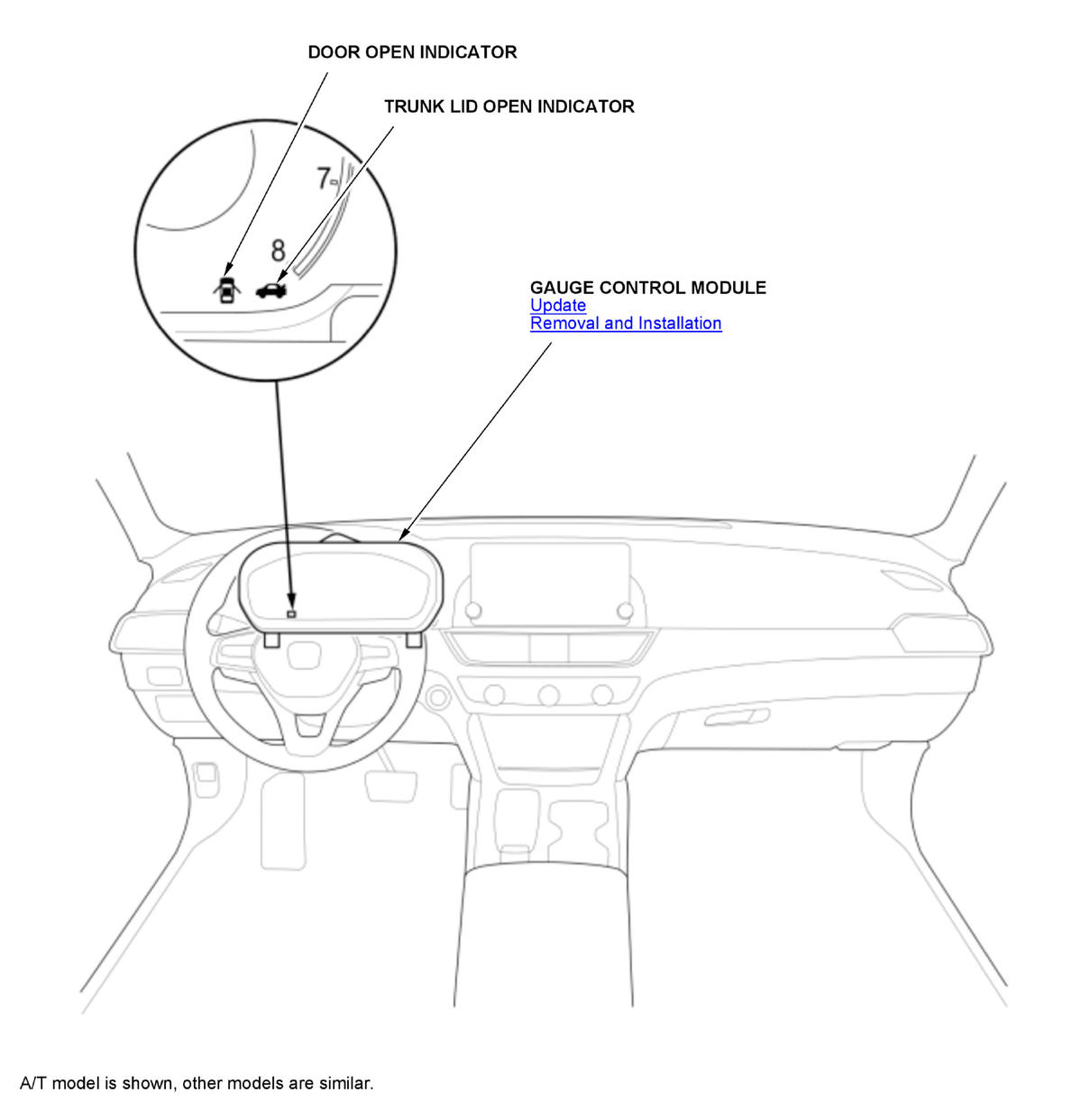

Fig 1: Safety Indicator System Component Location (Without Multi-Information Display (MID))

Courtesy of HONDA, U.S.A., INC.

With Multi-Information Display (MID)

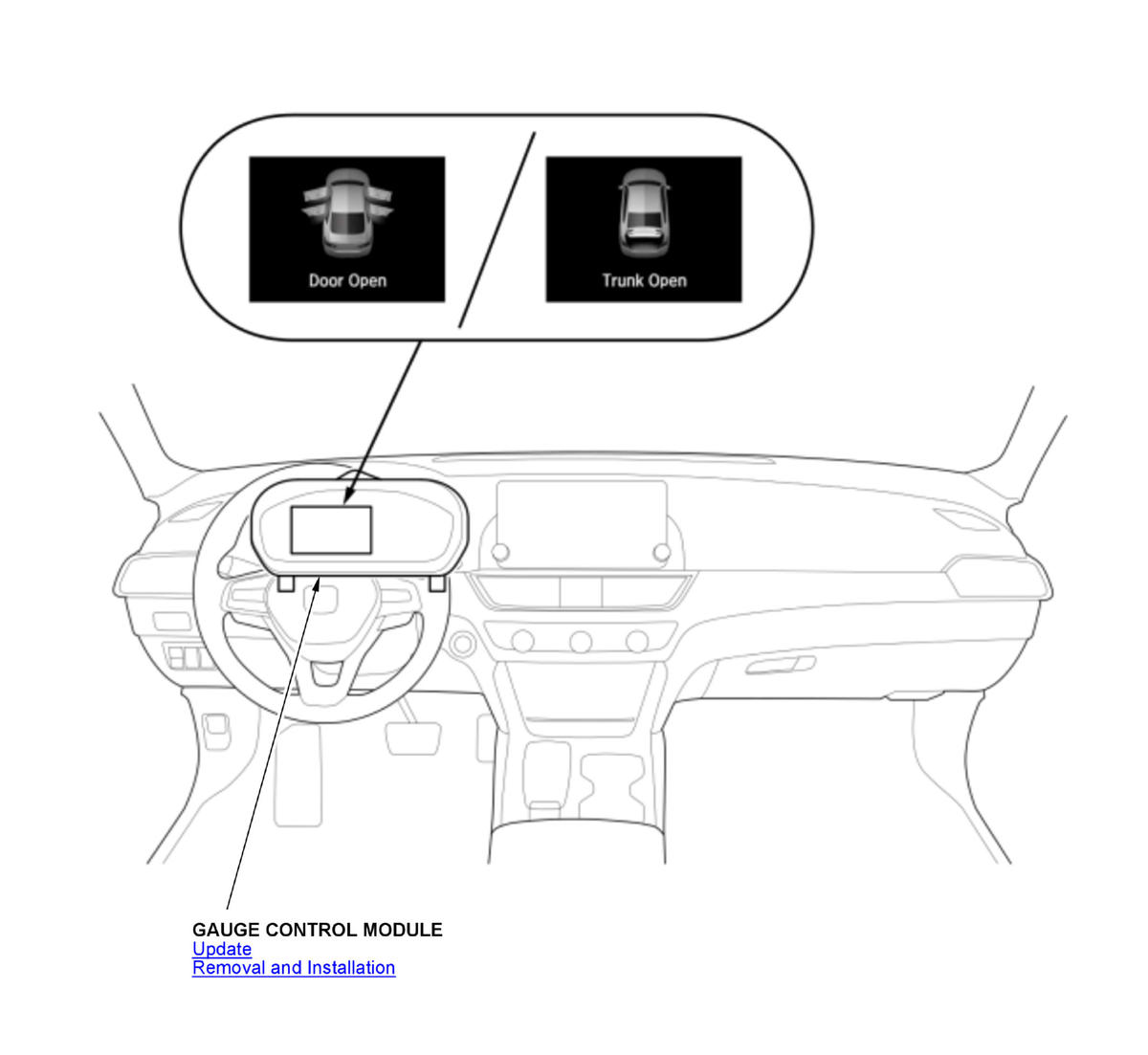

Fig 2: Safety Indicator System Component Locations (With Multi-Information Display (MID) 1 Of 2)

Courtesy of HONDA, U.S.A., INC.

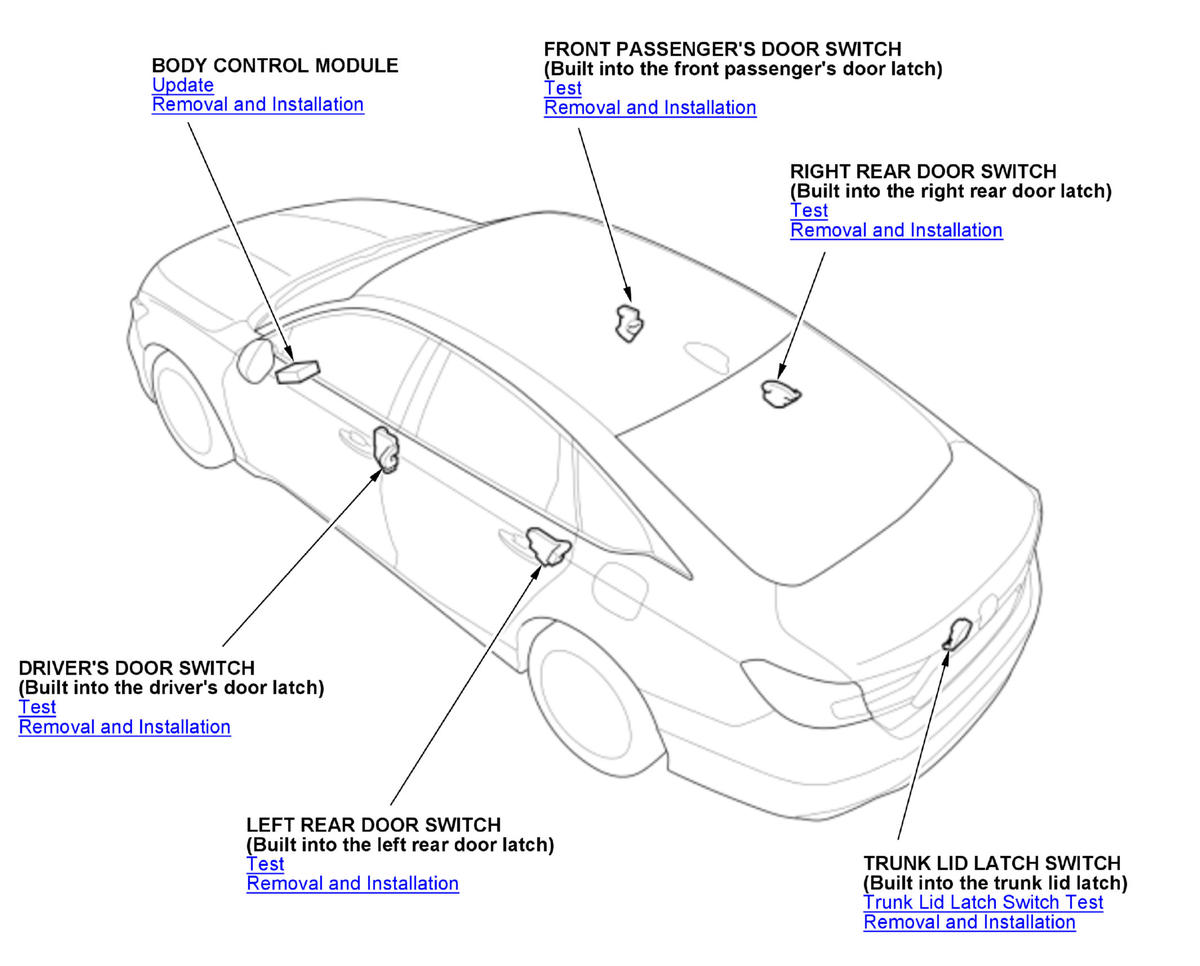

Fig 3: Safety Indicator System Component Locations (With Multi-Information Display (MID) 2 Of 2)

Courtesy of HONDA, U.S.A., INC.
