Parking and Back-Up Sensor System Component Location Index

For relationships between signals in a system, refer to System Diagram .

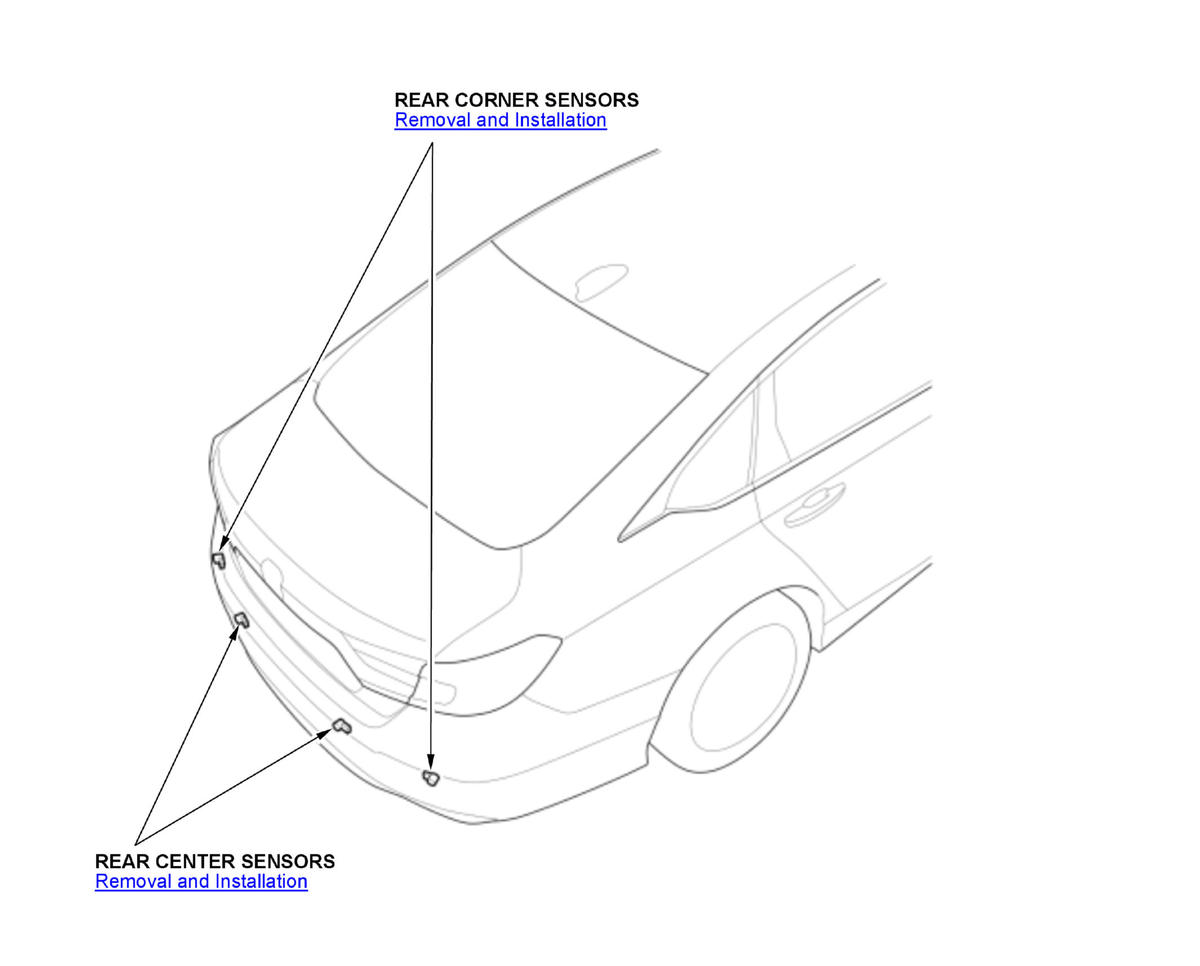

Fig 1: Parking and Back-Up Sensor System Component Locations (1 Of 3)

Courtesy of HONDA, U.S.A., INC.

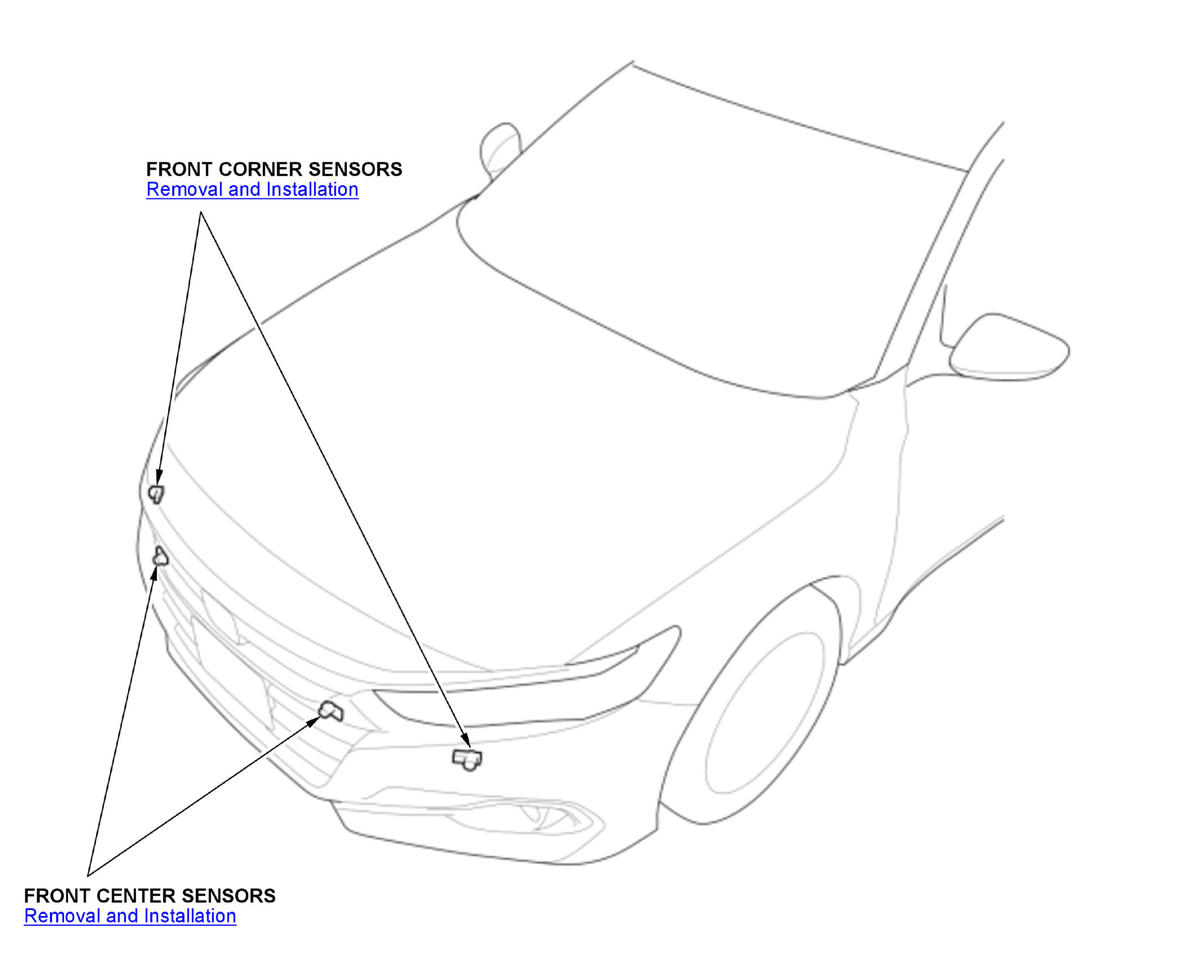

Fig 2: Parking and Back-Up Sensor System Component Locations (2 Of 3)

Courtesy of HONDA, U.S.A., INC.

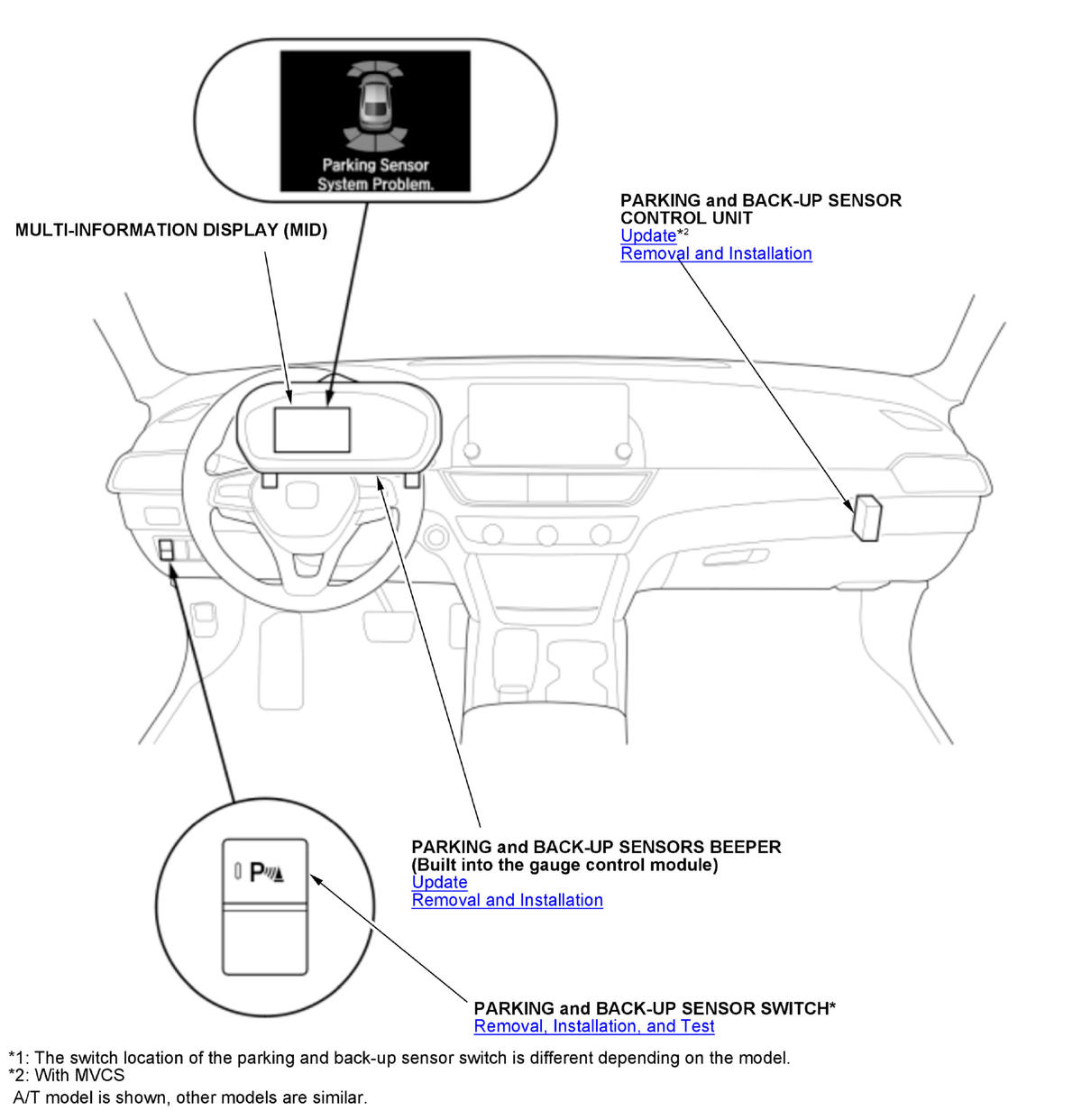

Fig 3: Parking and Back-Up Sensor System Component Locations (3 Of 3)

Courtesy of HONDA, U.S.A., INC.
