Home >> Honda >> 2021 >> Accord Touring >> Repair and Diagnosis >> Electrical >> Gauges >> Gauges - Testing & Troubleshooting (Except Hybrid) >> Circuit Diagram >> Safety Indicator System Circuit Diagram

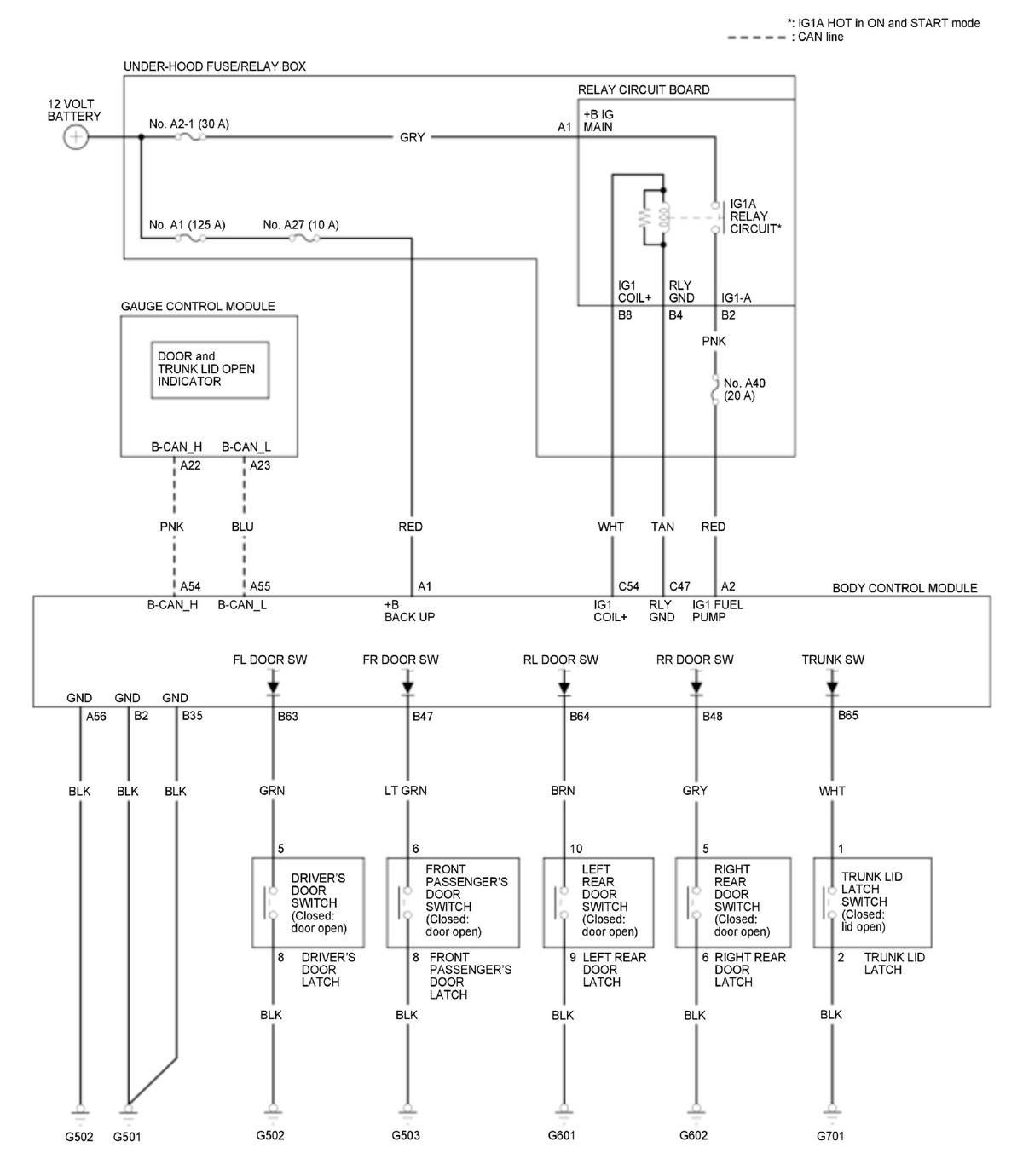

Safety Indicator System Circuit Diagram

GHH395551

Courtesy of HONDA, U.S.A., INC.
