Circuit Diagram
>>

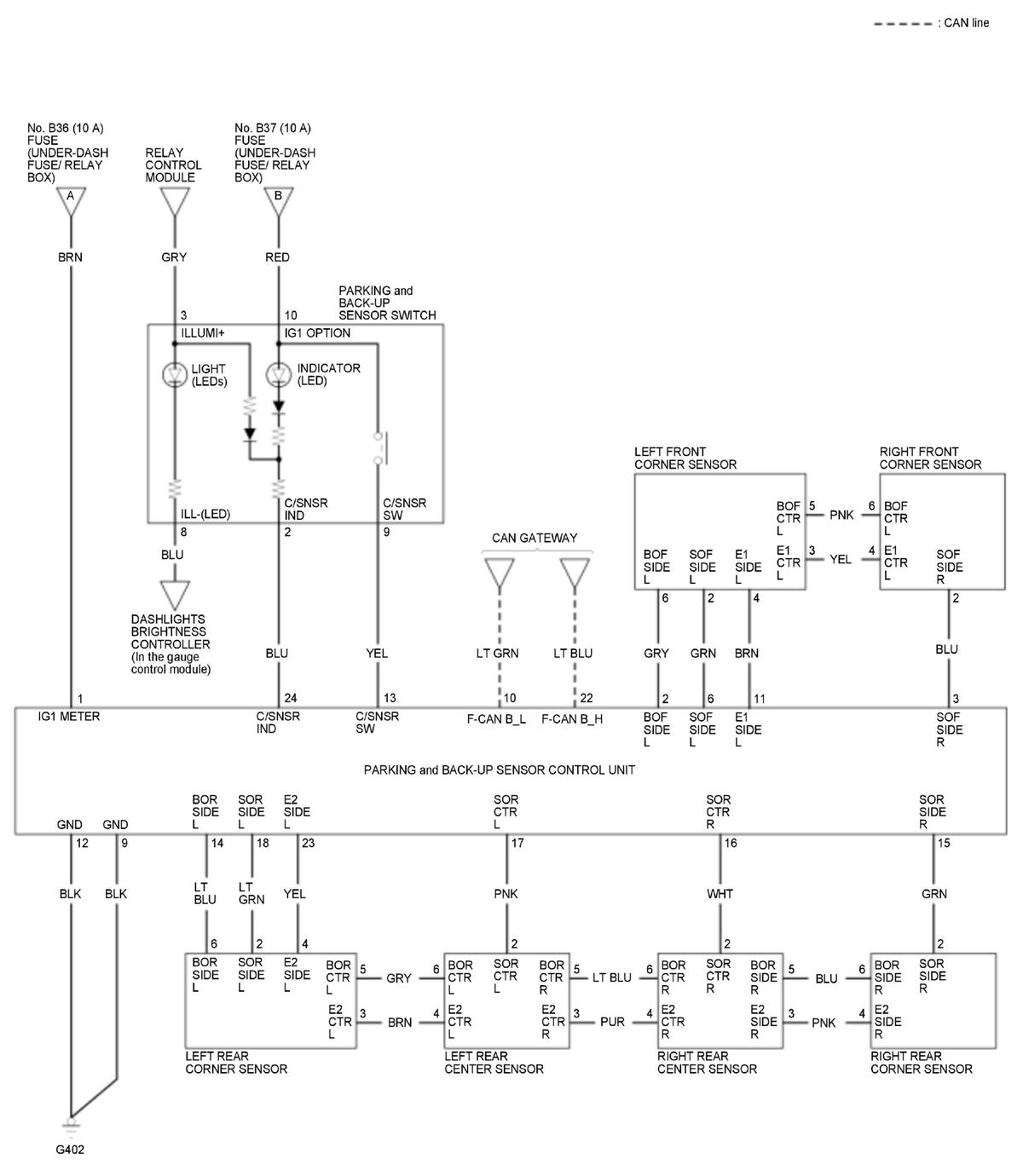

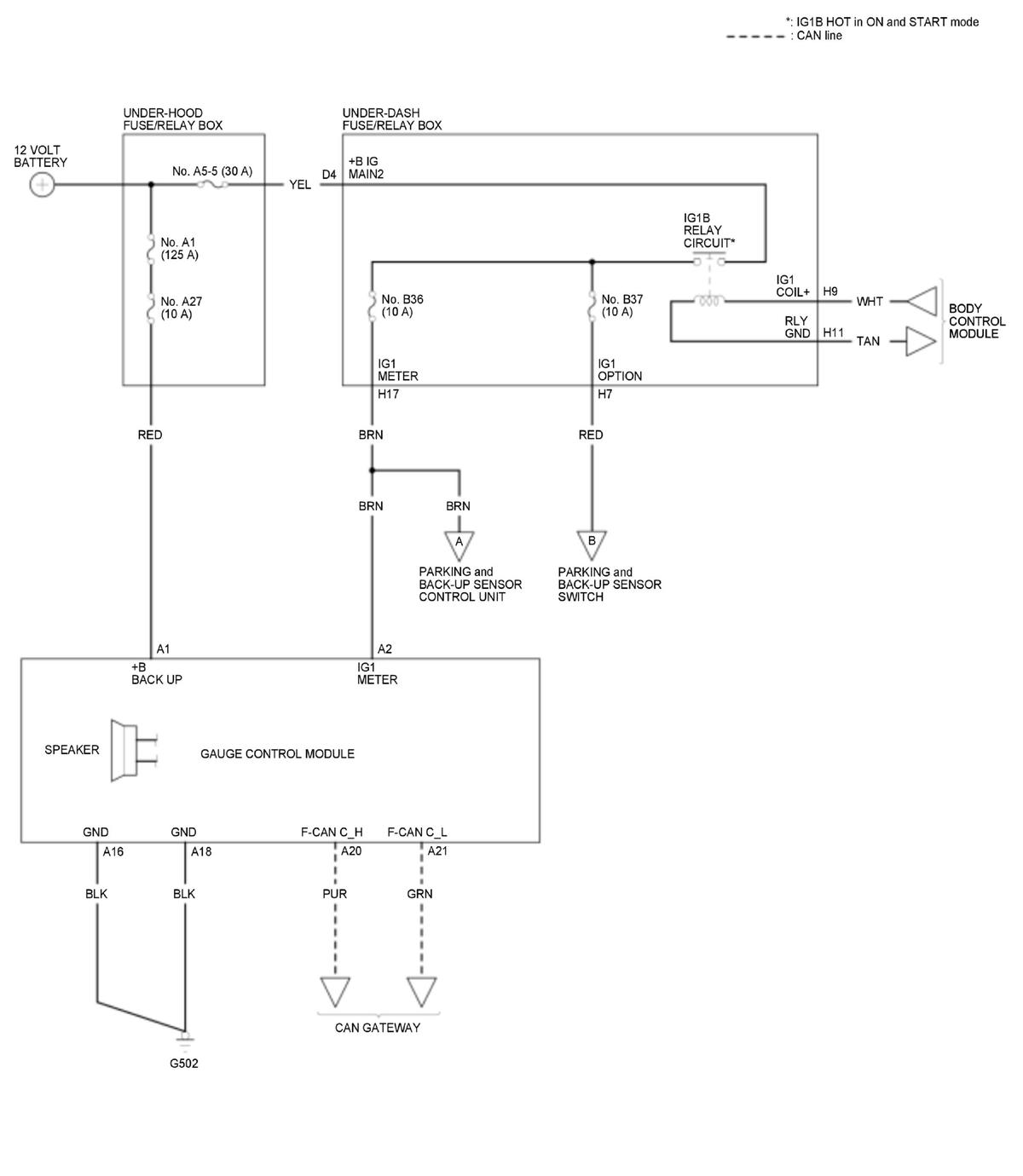

Parking and Back-Up Sensor System Circuit Diagram (2018 2019 2020)
Parking and Back-Up Sensor System Circuit Diagram (2018 2019 2020)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
