Gauges Circuit Diagram

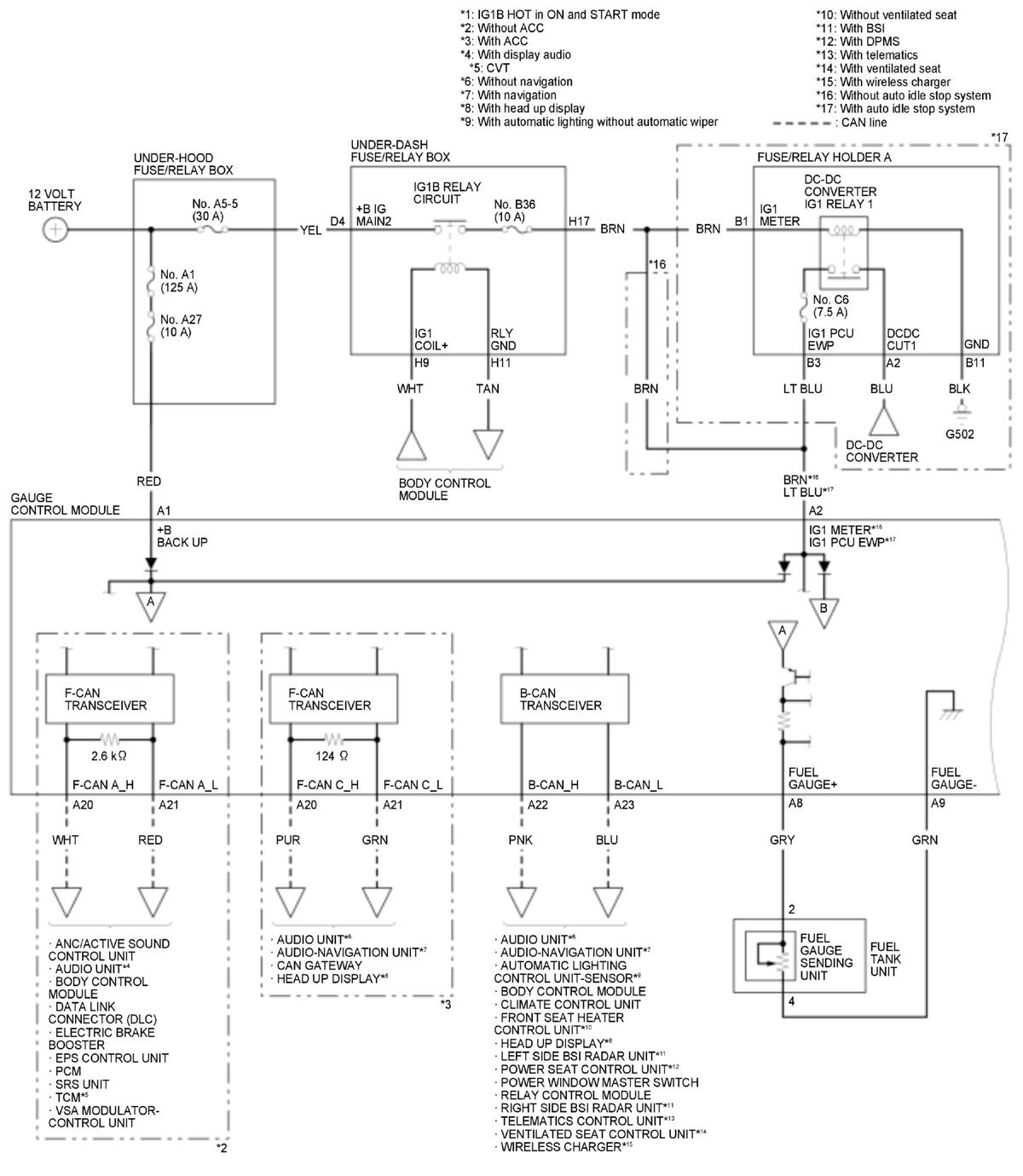

GHH395535Courtesy of HONDA, U.S.A., INC.

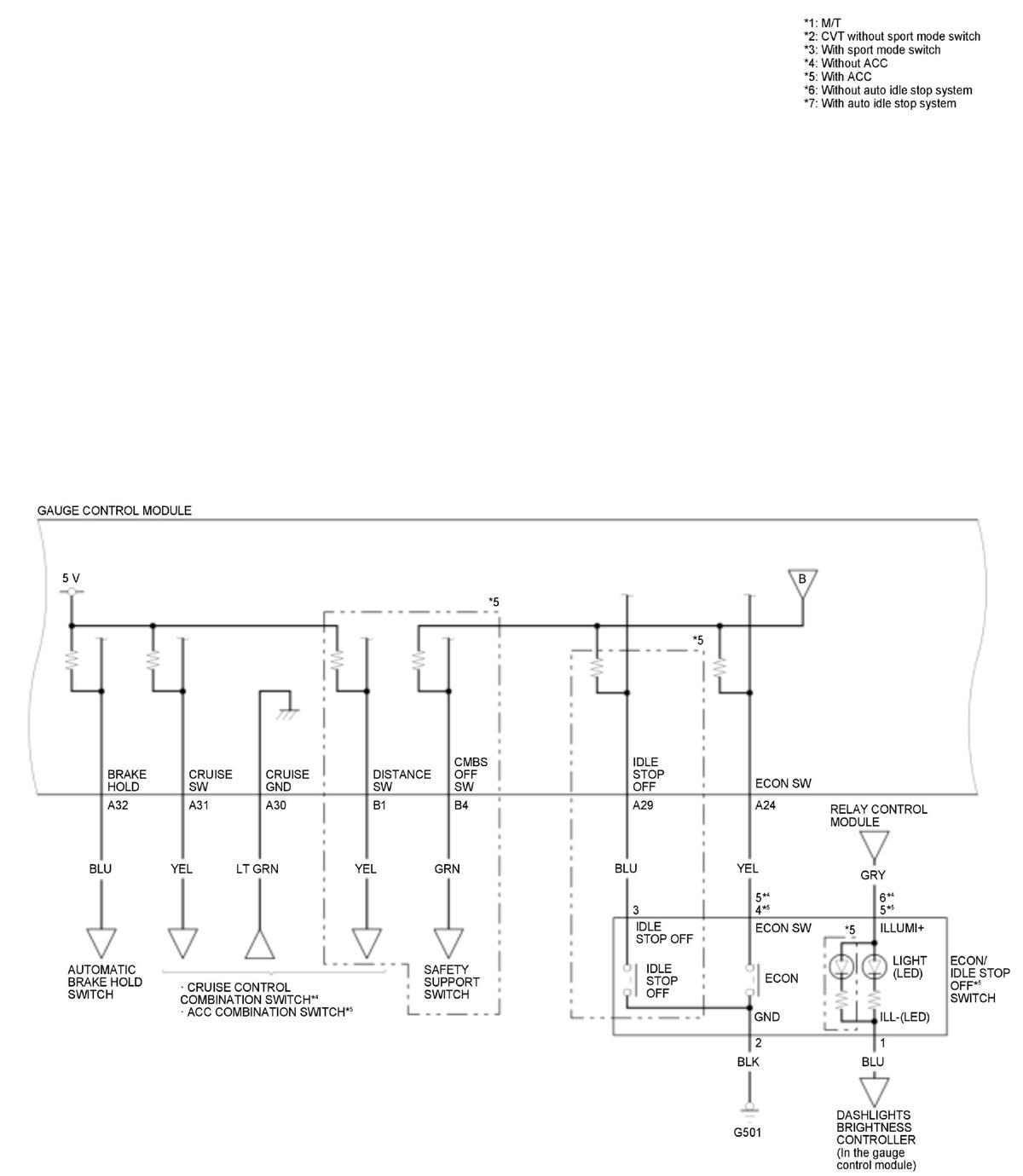

GHH395536Courtesy of HONDA, U.S.A., INC.

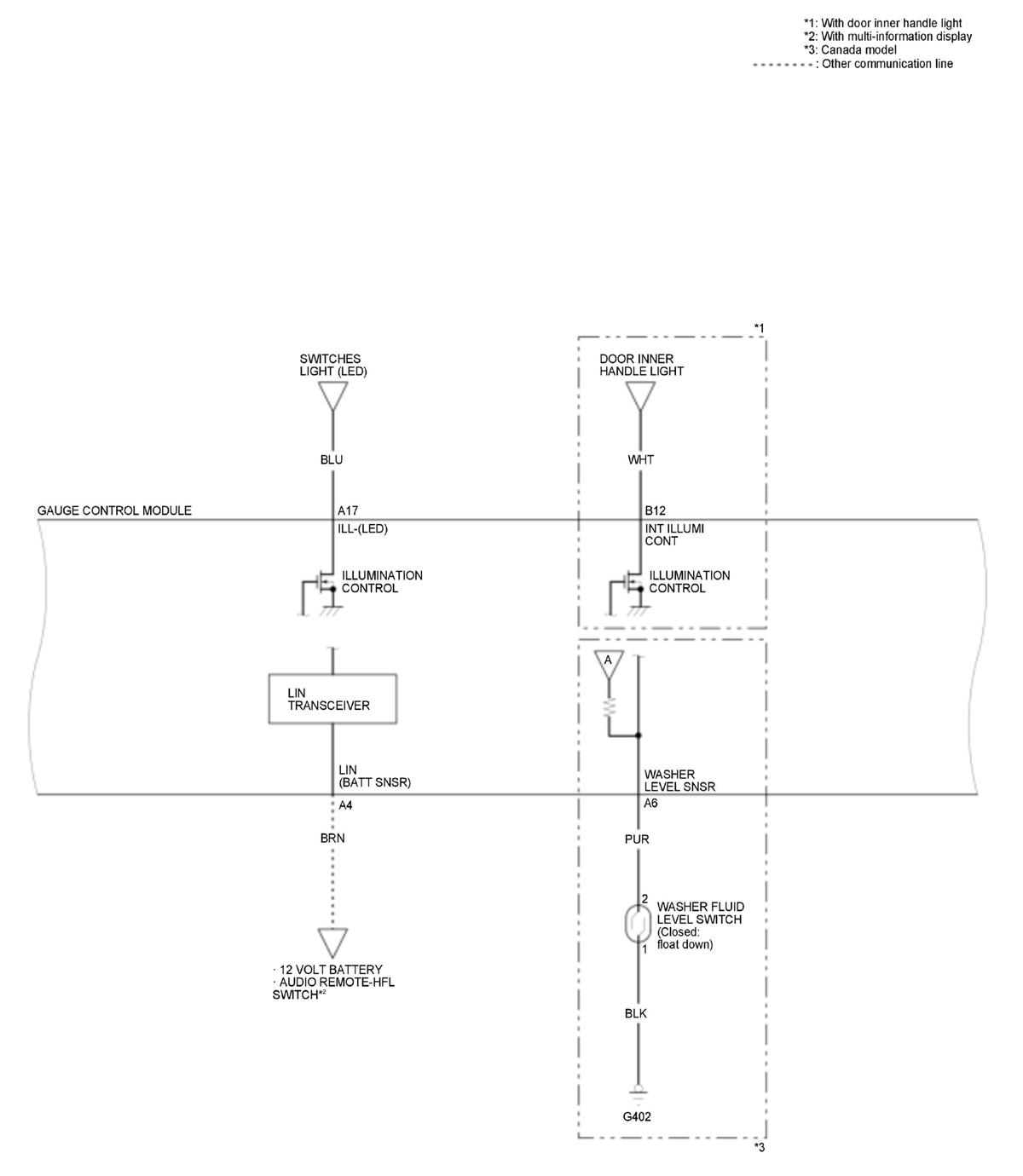

GHH395537Courtesy of HONDA, U.S.A., INC.

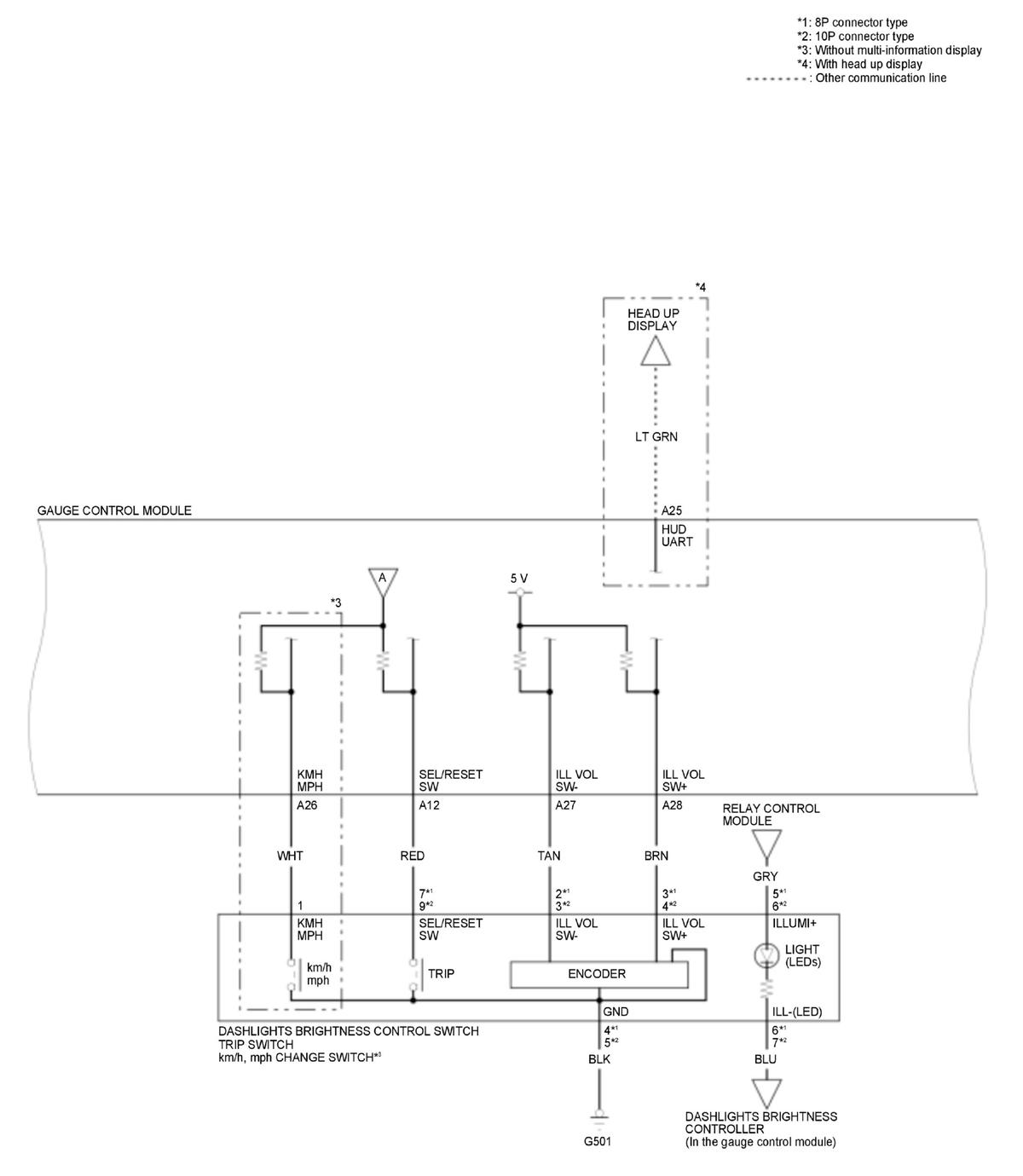

GHH395538Courtesy of HONDA, U.S.A., INC.

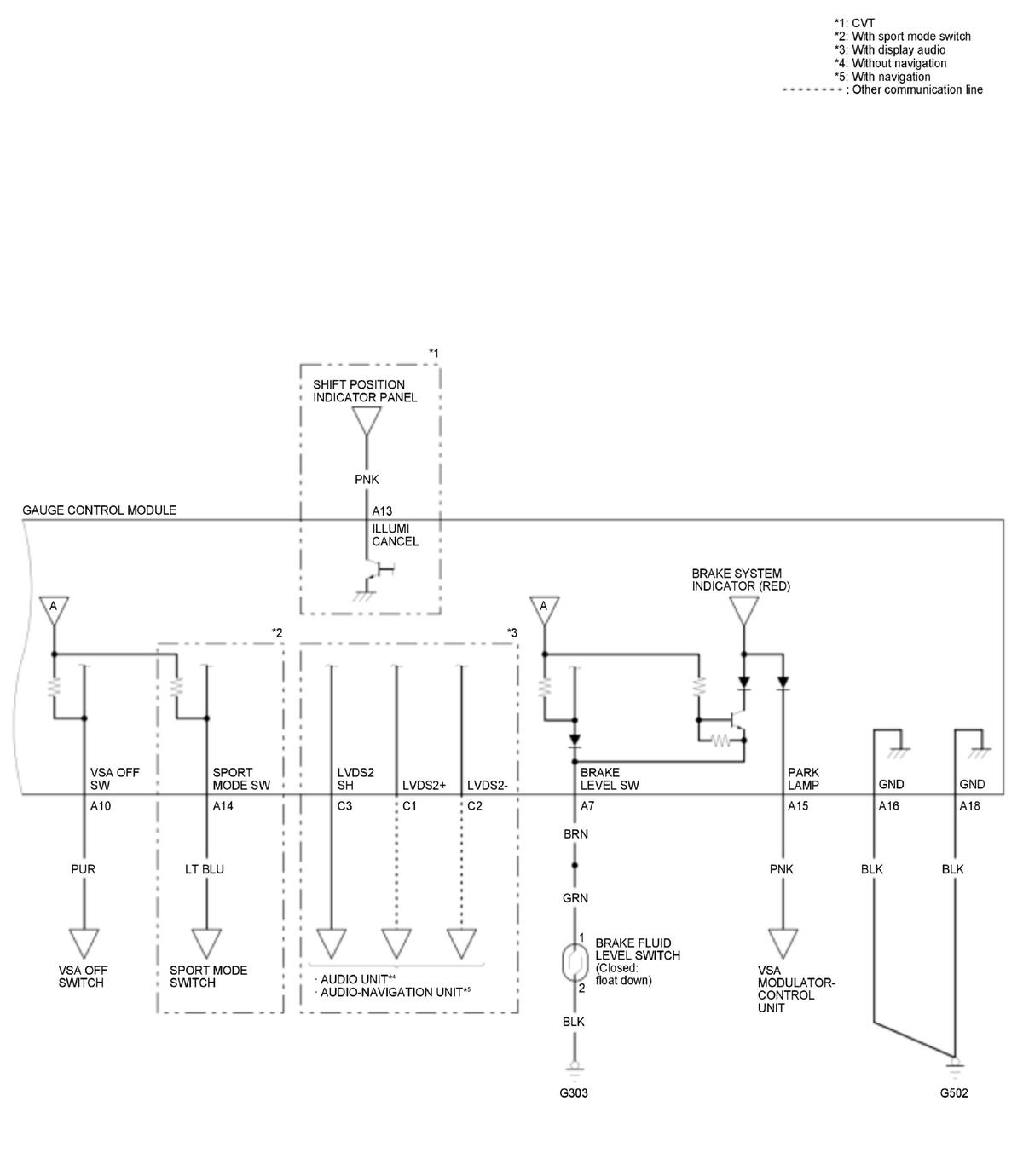

GHH395539Courtesy of HONDA, U.S.A., INC.
