Rear Brake Caliper Overhaul: Reassembly

NOTE:

• Where icon is shown, further information shown below.
• Review the Service Precautions before doing repairs or service .

1

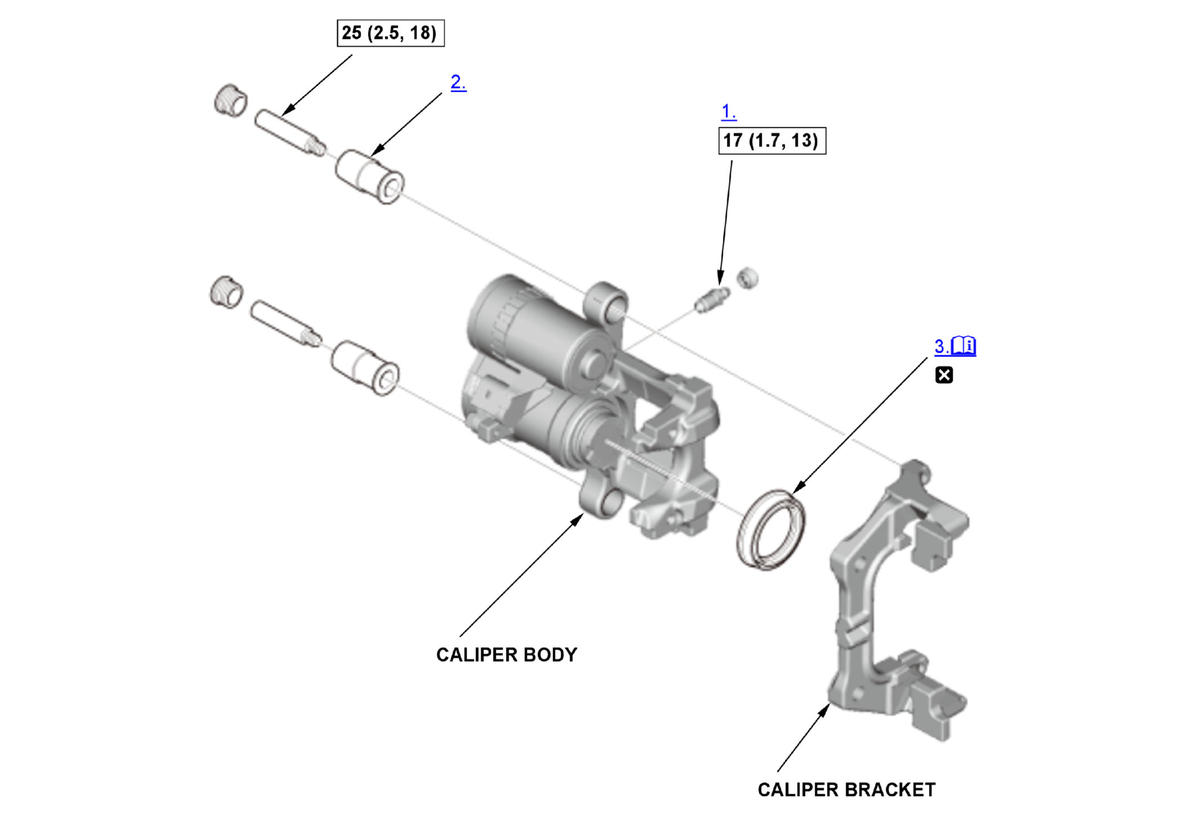

Fig 1: Bleeding Screw With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

1. Bleed Screw - Install
2. Pin Bushing - Install
3. Piston Boot - Install

   Courtesy of HONDA, U.S.A., INC.

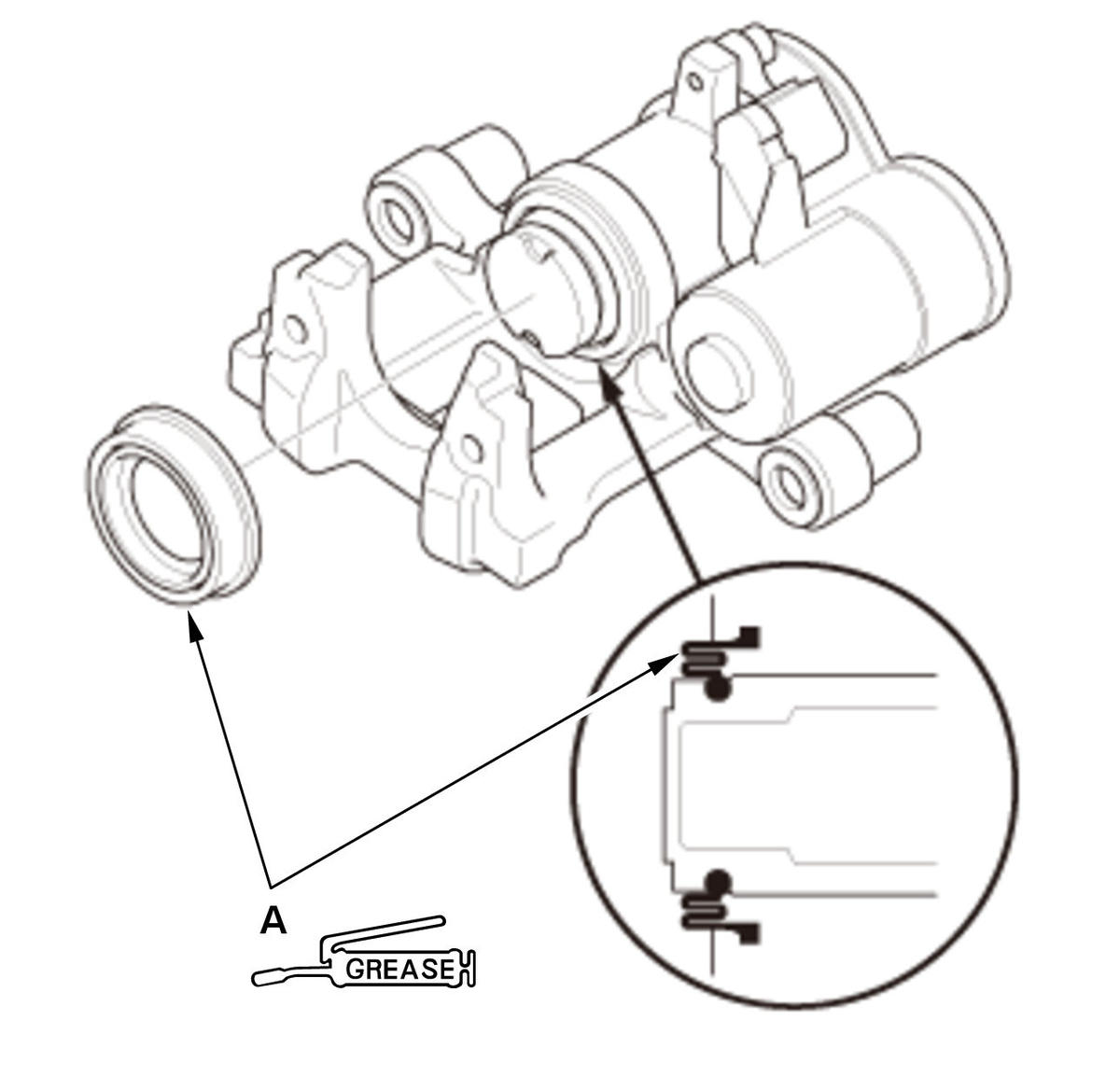

   1. Apply a thin coat of Honda silicone grease (P/N 08C30-B0234M) or ATE brake cylinder paste (commercially available) to inner of the piston boot (A). NOTE: Do not apply grease to the contact surface of the caliper body. 2. Install the piston boot onto the piston.

   Courtesy of HONDA, U.S.A., INC.

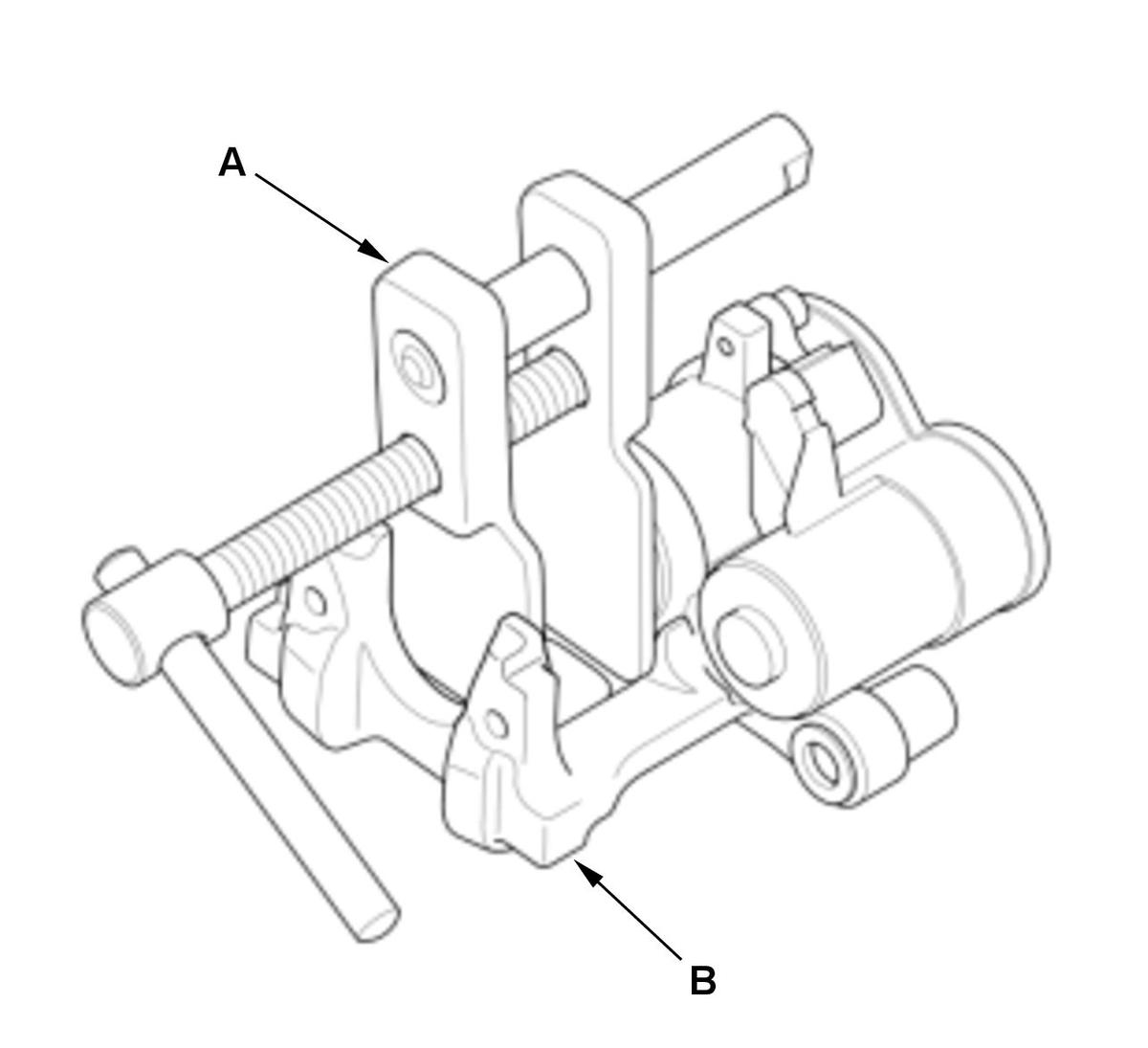

   3. Install a commercially available brake caliper piston compressor tool (A) on the caliper body (B). 4. Press in the piston with the brake caliper piston compressor tool. NOTE: Do not press the piston diagonally, and do not press it forcibly. Be careful not to damage the piston boot when pressing in the piston.

   Courtesy of HONDA, U.S.A., INC.

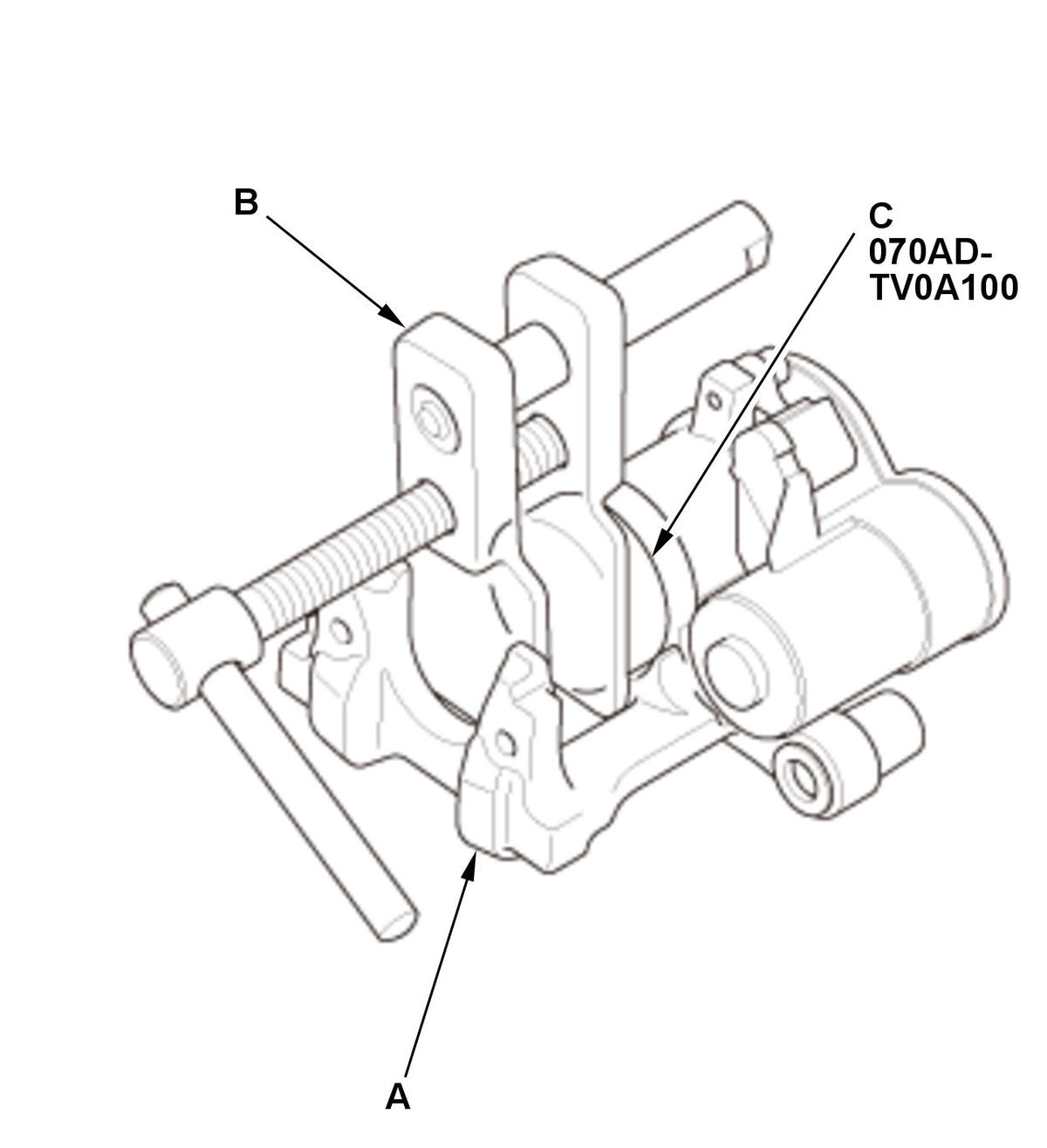

   5. Set the piston boot in place on the caliper body (A). 6. Install a commercially available brake caliper piston compressor tool (B) and the rear brake caliper dust boot installer (C). 7. Press in the piston boot with the brake caliper piston compressor tool and the rear brake caliper dust boot installer. NOTE: Make sure that the piston boot is properly positioned into the groove of the caliper body. Be careful not to damage the piston boot.
