Rear Brake Caliper Overhaul: Disassembly

NOTE:

• Where icon is shown, further information shown below.
• Review the Service Precautions before doing repairs or service .
• Do the brake pad maintenance mode with the HDS before removing the brake caliper .

1

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

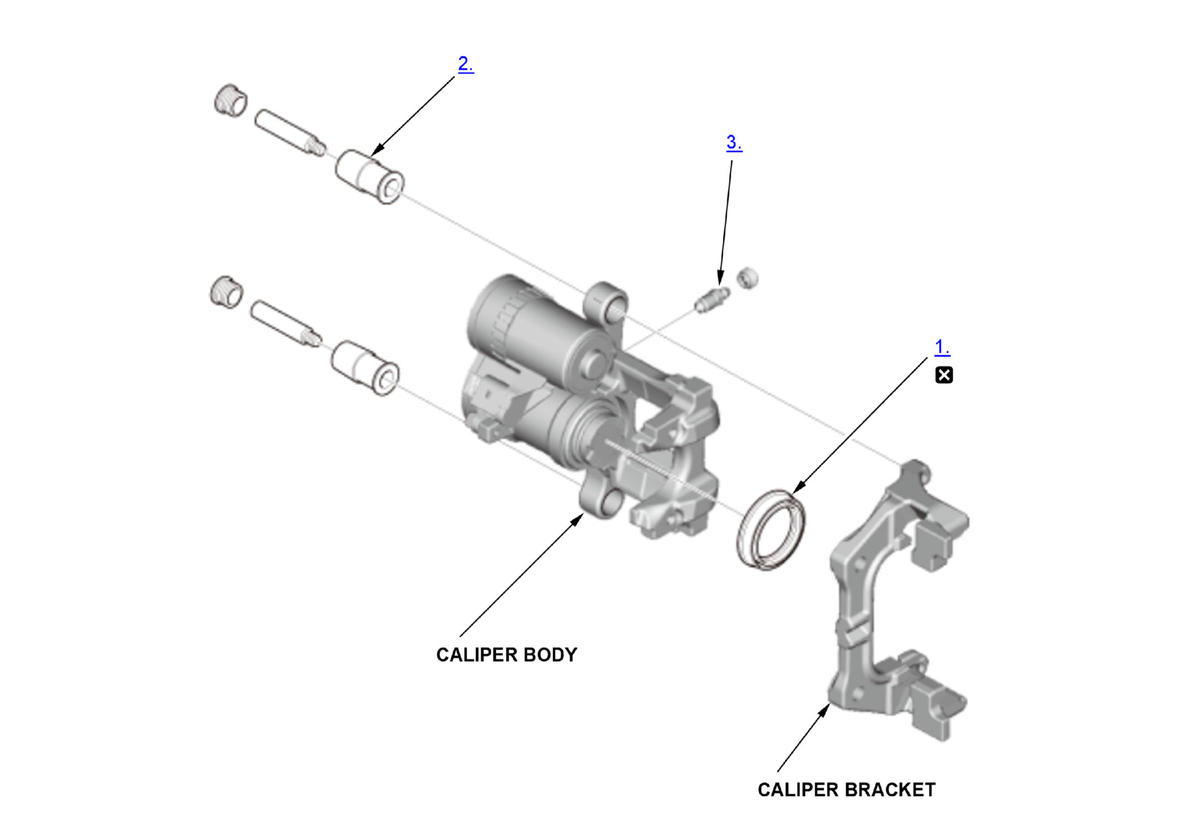

1. Piston Boot - Remove
2. Pin Bushing - Remove
3. Bleed Screw - Remove
