Seat Heaters - System Diagram

For locations of each component on the vehicle, refer to the Component Location Index

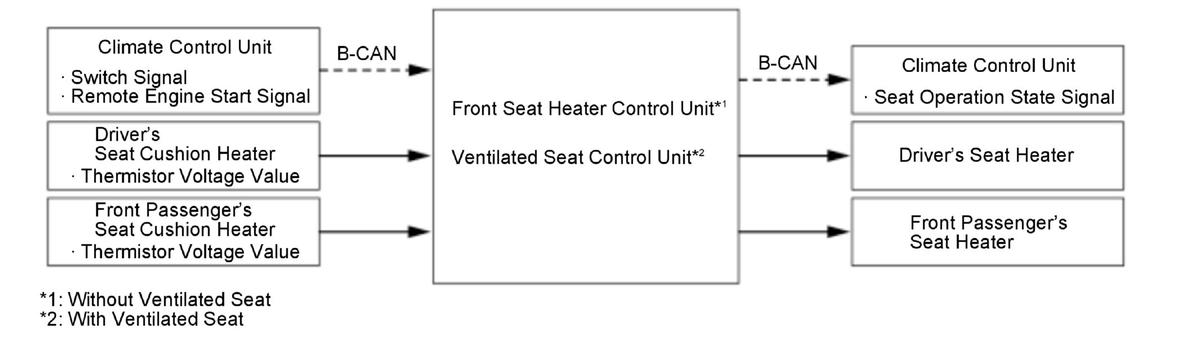

Front Seat

GHH397791Courtesy of HONDA, U.S.A., INC.

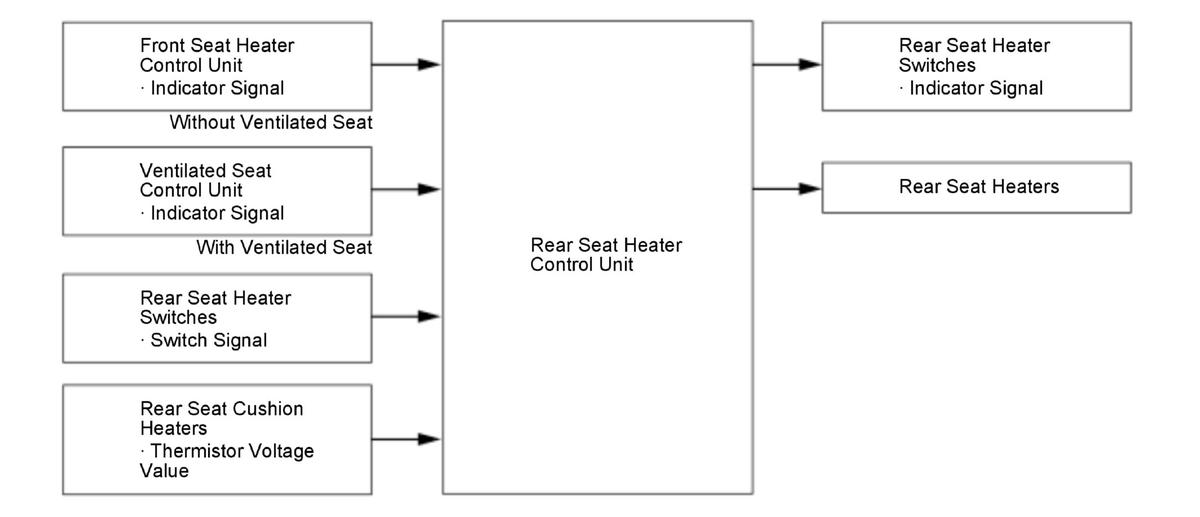

Rear Seat

GHH397792Courtesy of HONDA, U.S.A., INC.
