Rear Seat-Back Heater (With Rear Seat Heater)

Rear Seat-Back Cover - Remove
Rear Seat-Back Heater - Remove

Courtesy of HONDA, U.S.A., INC.

NOTE: The seat-back heater is glued to the seat-back pad. When removing it, take care not to damage the seat-back pad.
Rear Seat-Back Heater - Install

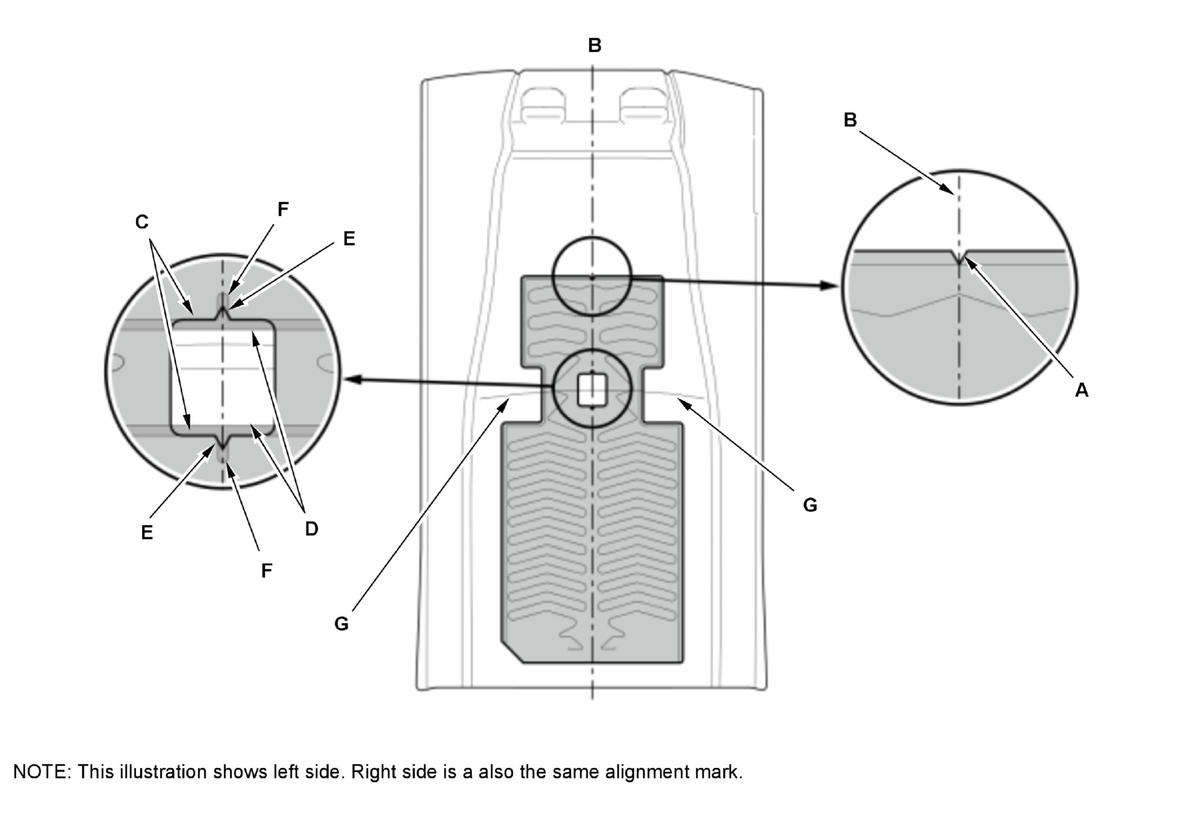

1. Attach the seat-back heater to the reference position as shown.
NOTE:
- Reference position in the horizontal direction: Align the seat-back heater position (A) with the seat-back pad center line (B).
- Reference position in the vertical direction: Align the seat cushion heater edge (C) with the seat cushion pad groove (D).
- Reference position in the horizontal direction: Align the seat-back heater position (E) with the center of the seat cushion pad reference position (F).
- Once the seat heater is in place on the seat-back, tuck the bridge folds (G) of the seat heater evenly into the grooves of the seat-back pad.
Left Rear

Courtesy of HONDA, U.S.A., INC.
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
