Rear Seat Cushion Heater (With Rear Seat Heater)

Rear Seat Cushion Cover - Remove

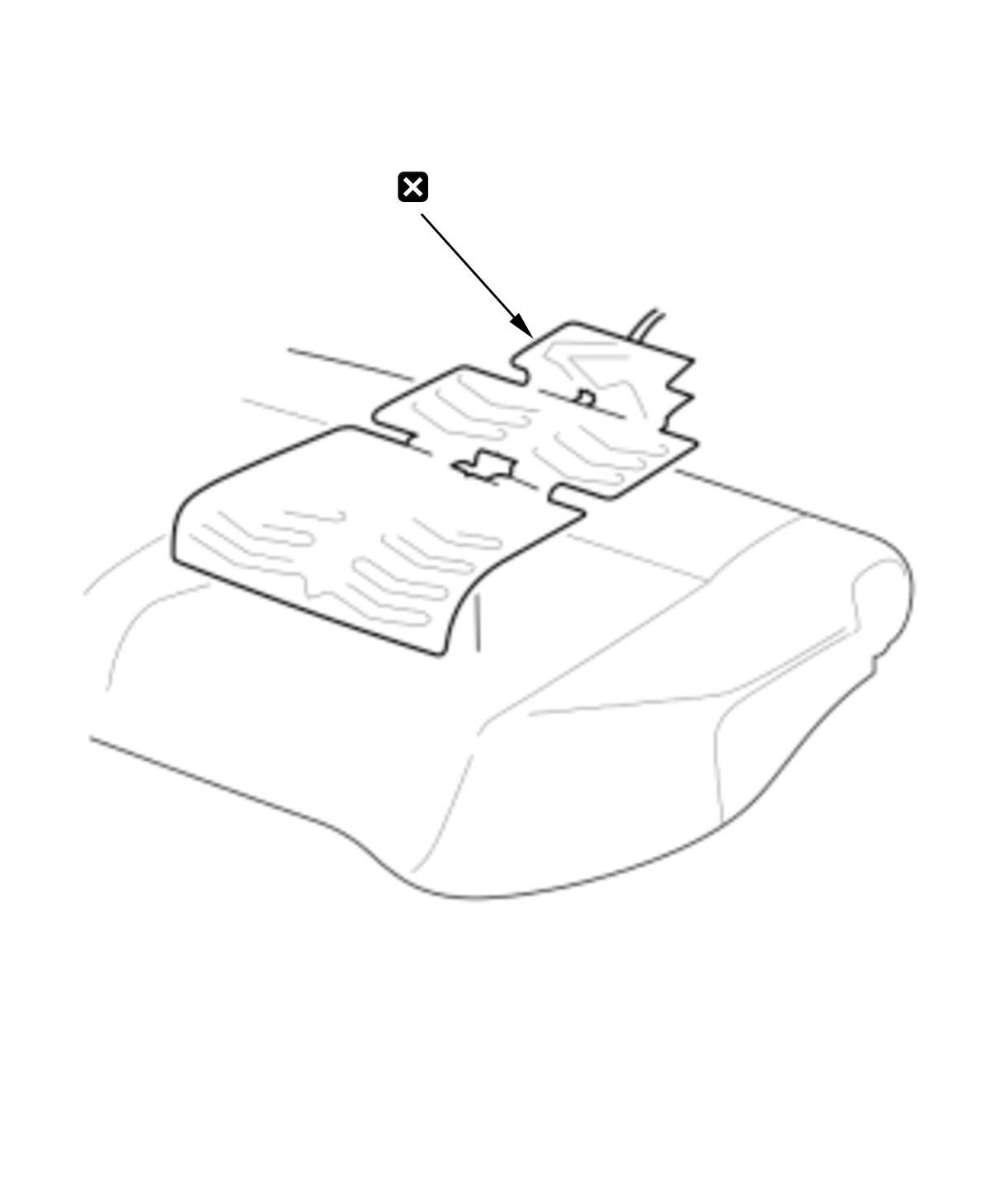

Rear Seat Cushion Heater - Remove

Courtesy of HONDA, U.S.A., INC.

NOTE: The seat cushion heater is glued to the seat cushion pad. When removing it, take care not to damage the seat cushion pad.
Rear Seat Cushion Heater - Install

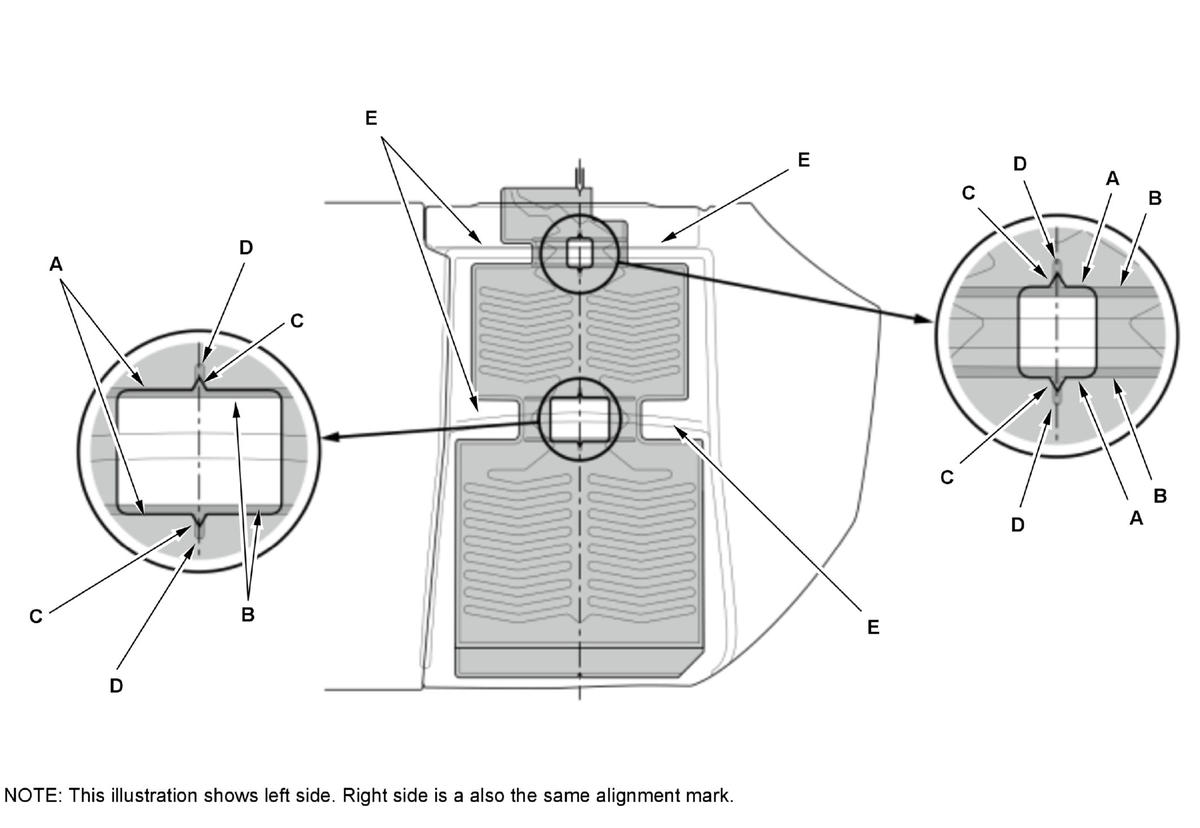

1. Attach the seat cushion heater to the reference position as shown.
NOTE:
- Reference position in the vertical direction: Align the seat cushion heater edge (A) with the seat cushion pad groove (B).
- Reference position in the horizontal direction: Align the seat-back heater position (C) with the center of the seat cushion pad reference position (D).
- Once the seat heater is in place on the cushion, tuck the bridge folds (E) of the seat heater evenly into the grooves of the seat cushion pad.
Courtesy of HONDA, U.S.A., INC.
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
