Front Seat-Back Heater

  1. Front Seat-Back Cover - Remove
  2. Front Seat-Back Heater - Remove
    GHH397799Courtesy of HONDA, U.S.A., INC.
    NOTE: The seat-back heater is glued to the seat-back pad. When removing it, take care not to damage the seat-back pad.
  3. Front Seat-back Heater - Install

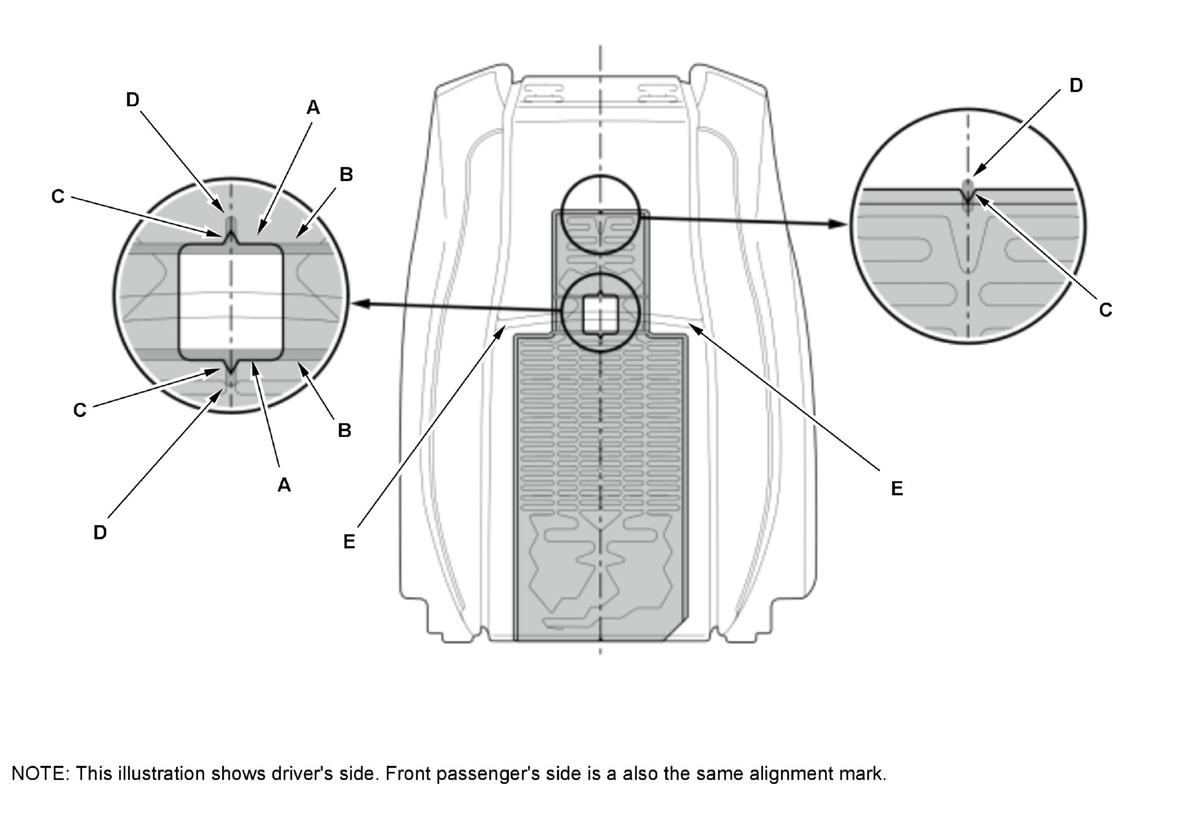

    1. Attach the seat-back heater to the reference position as shown.

    NOTE:
    • Reference position in the vertical direction: Align the seat-back heater edge (A) with the seat-back pad groove (B).
    • Reference position in the horizontal direction: Align the seat-back heater position (C) with the center of the seat-back pad reference position (D).
    • Once the seat heater is in place on the seat-back, tuck the bridge folds (E) of the seat heater evenly into the grooves of the seat-back pad.
    GHH397800Courtesy of HONDA, U.S.A., INC.
  4. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
