Front Seat Cushion Heater

Front Seat Cushion Cover - Remove
Front Seat Cushion Heater - Remove

Courtesy of HONDA, U.S.A., INC.

NOTE: The seat cushion heater is glued to the seat cushion pad. When removing it, take care not to damage the seat cushion pad.
Front Seat Cushion Heater - Install

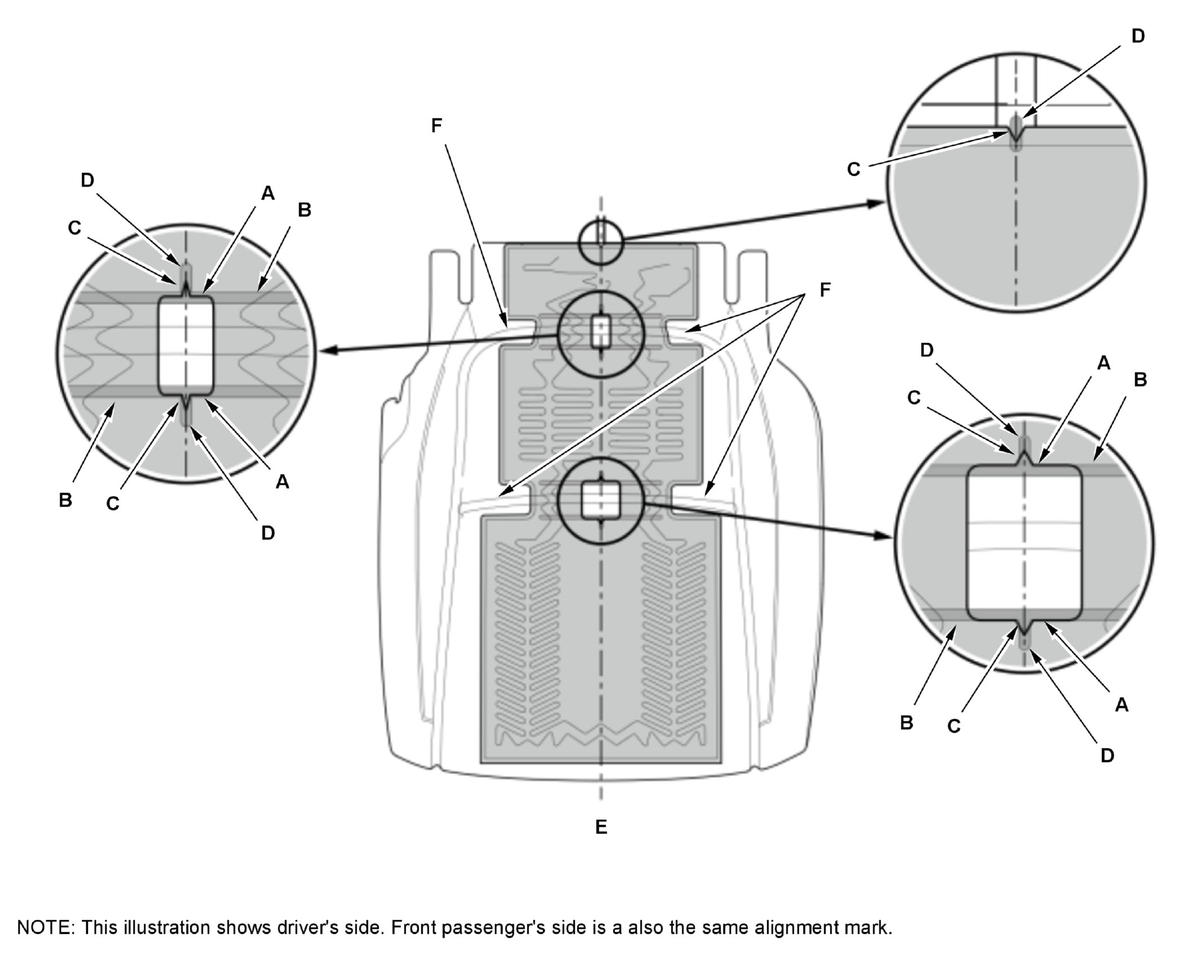

1. Attach the seat cushion heater to the reference position as shown.
NOTE:
- Reference position in the vertical direction: Align the seat cushion heater edge (A) with the seat cushion pad groove (B).
- Reference position in the horizontal direction:
  - Align the seat cushion heater position (C) with the center of the seat cushion pad reference position (D).
  - Align the center of the seat cushion heater position with the seat cushion pad center line (E).
- Once the seat heater is in place on the cushion, tuck the bridge folds (F) of the seat heater evenly into the grooves of the seat cushion pad.
Courtesy of HONDA, U.S.A., INC.
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
