Seat Heaters

Front Seats

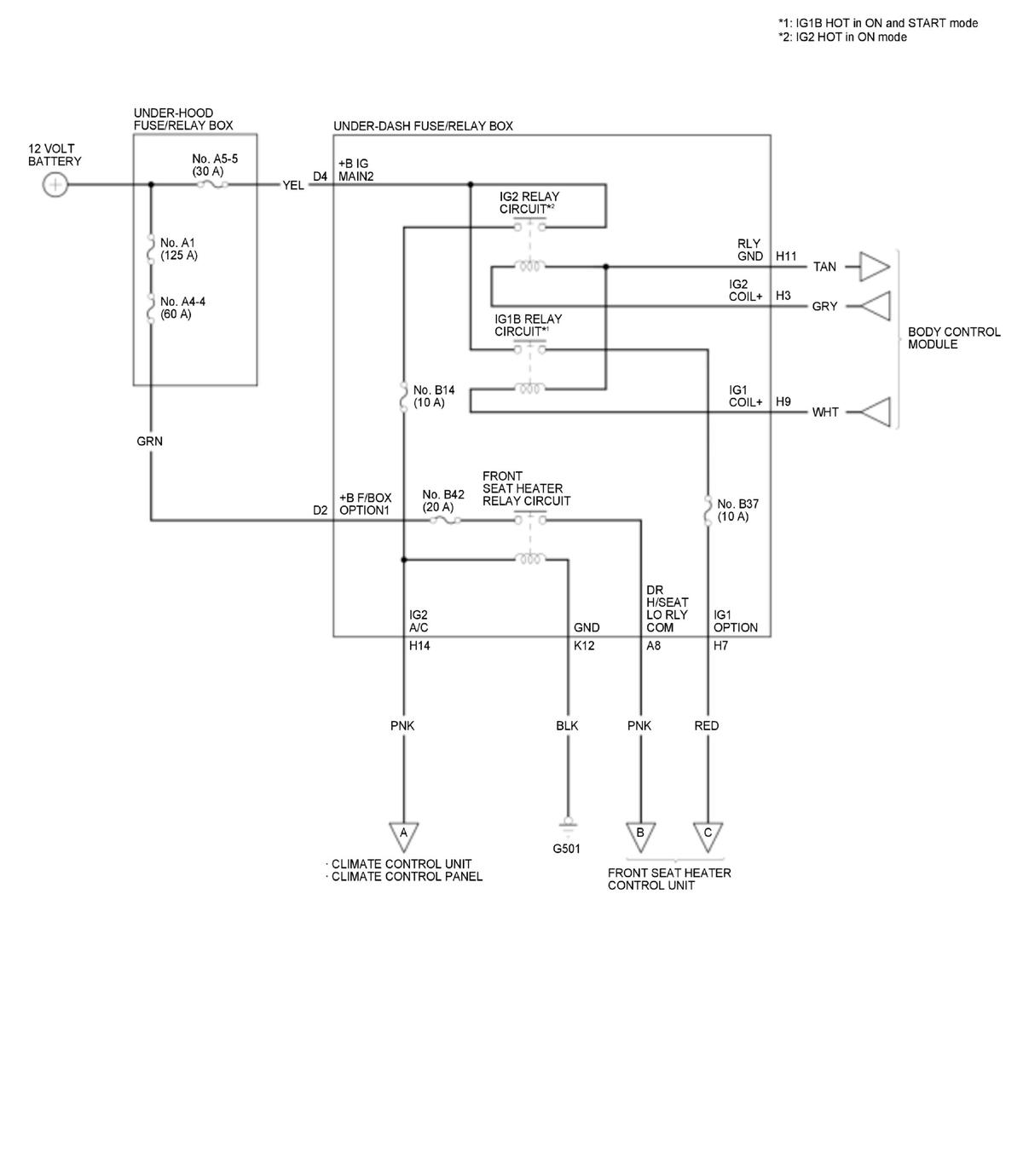

GHH397756Courtesy of HONDA, U.S.A., INC.

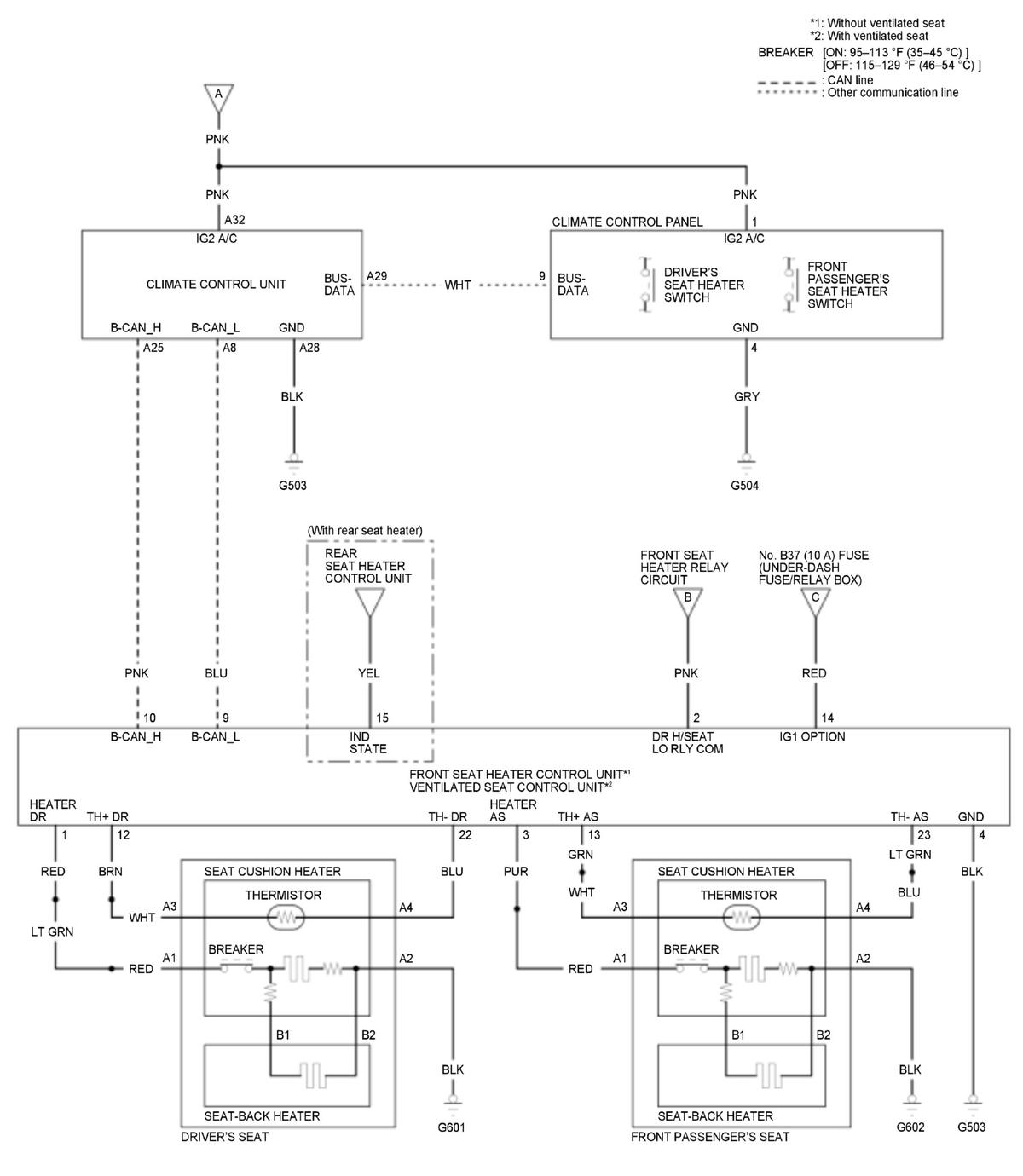

GHH397757Courtesy of HONDA, U.S.A., INC.

Rear Seat

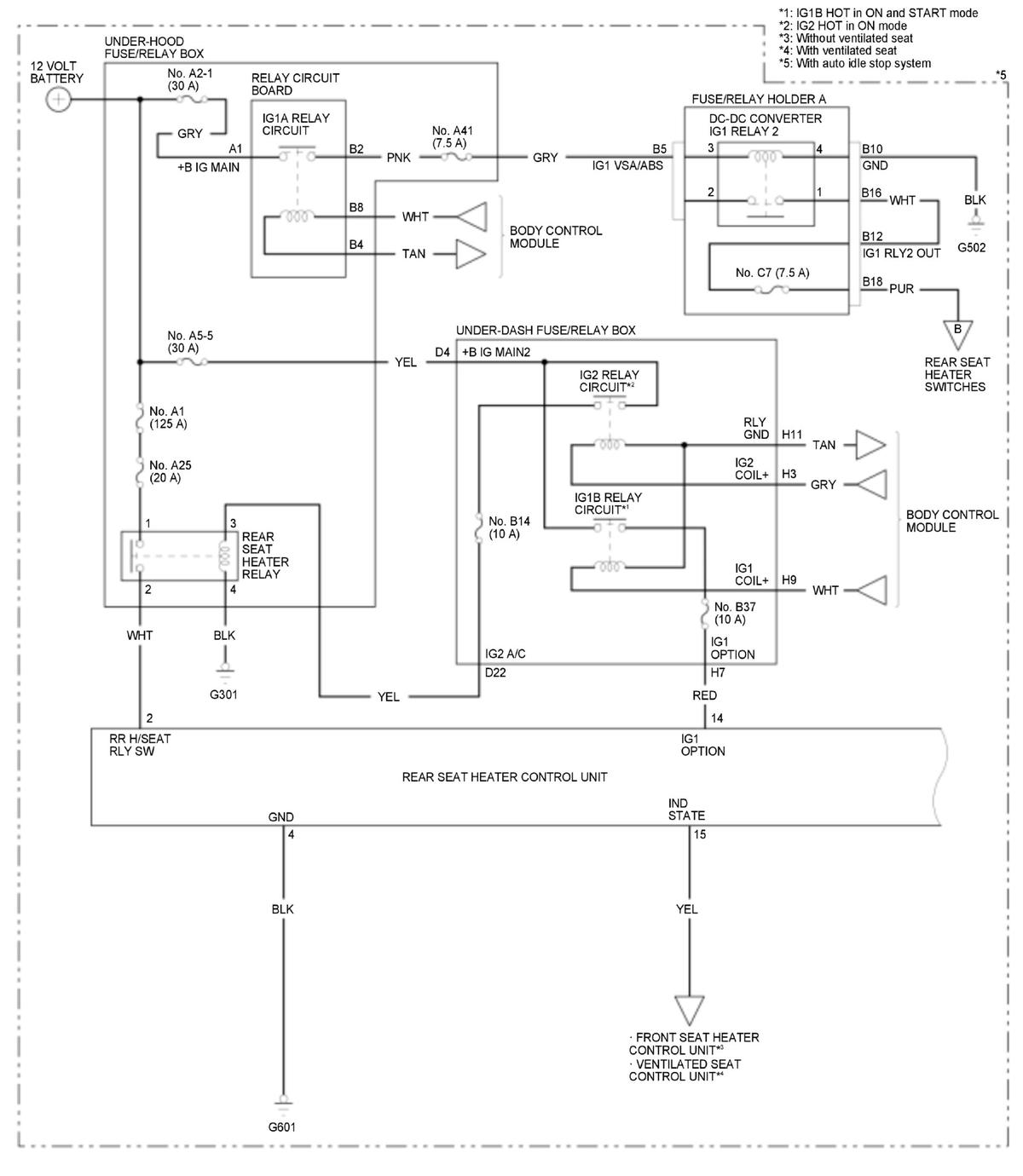

GHH397758Courtesy of HONDA, U.S.A., INC.

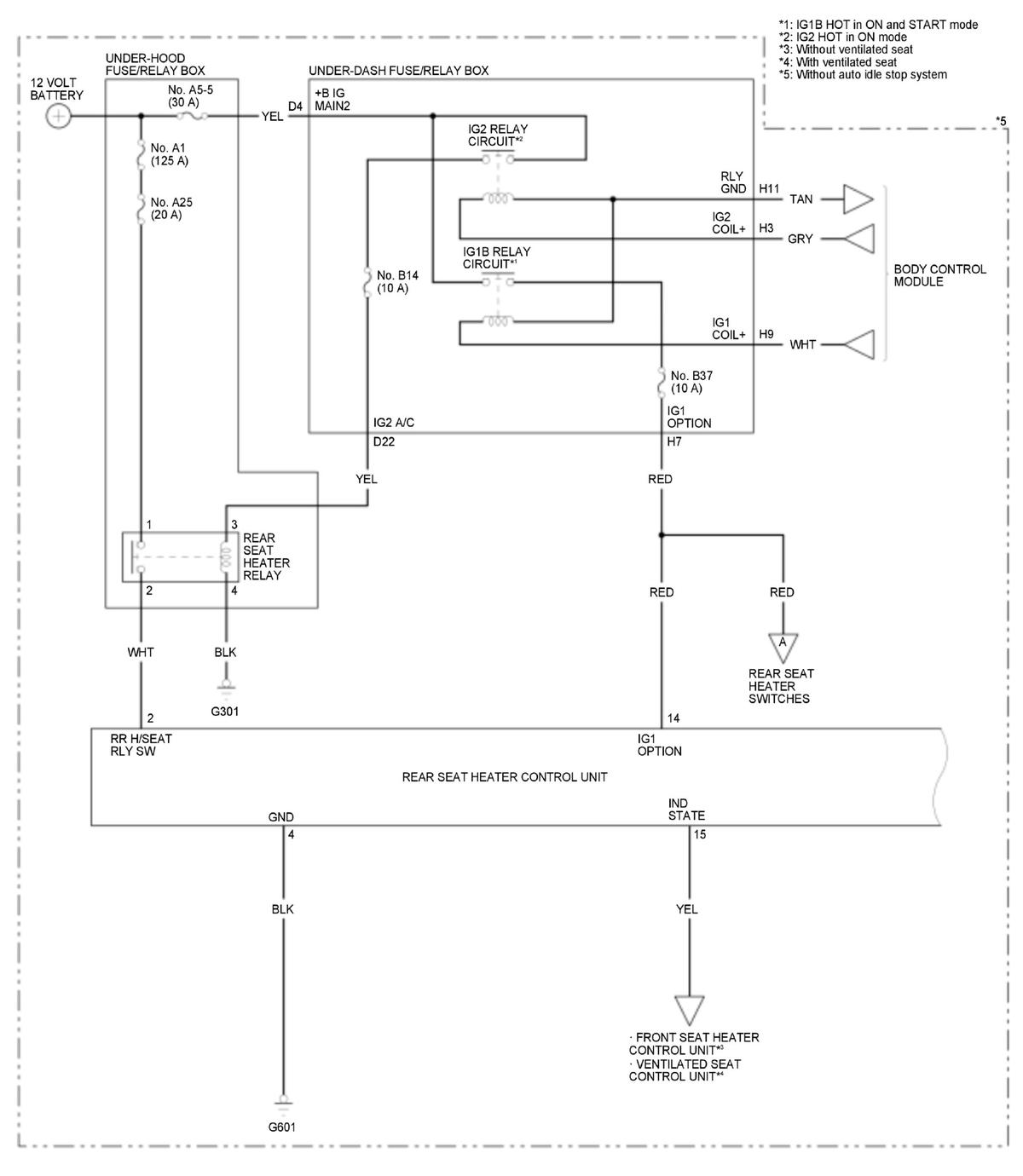

GHH397759Courtesy of HONDA, U.S.A., INC.

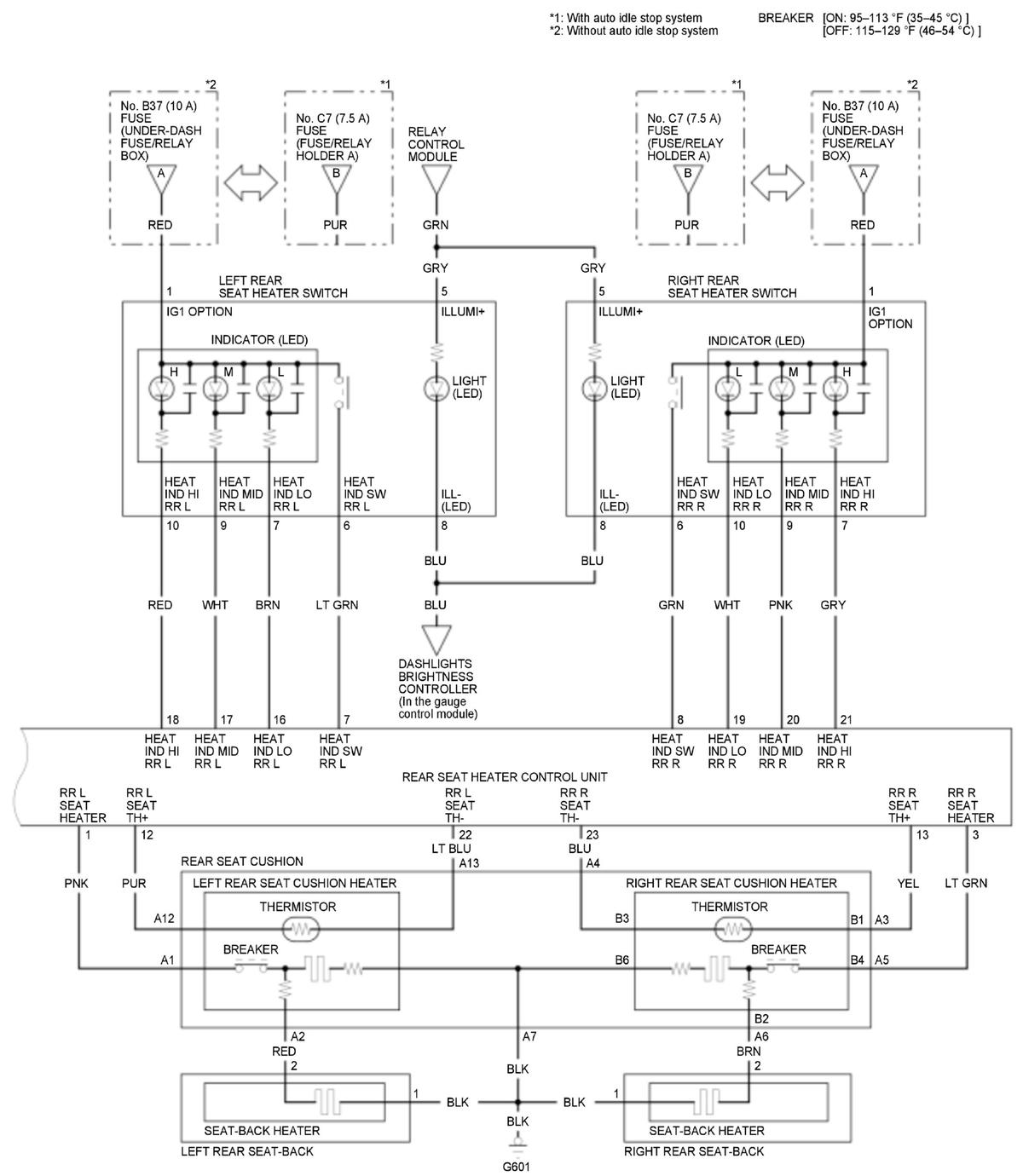

GHH397760Courtesy of HONDA, U.S.A., INC.
