Power Seats

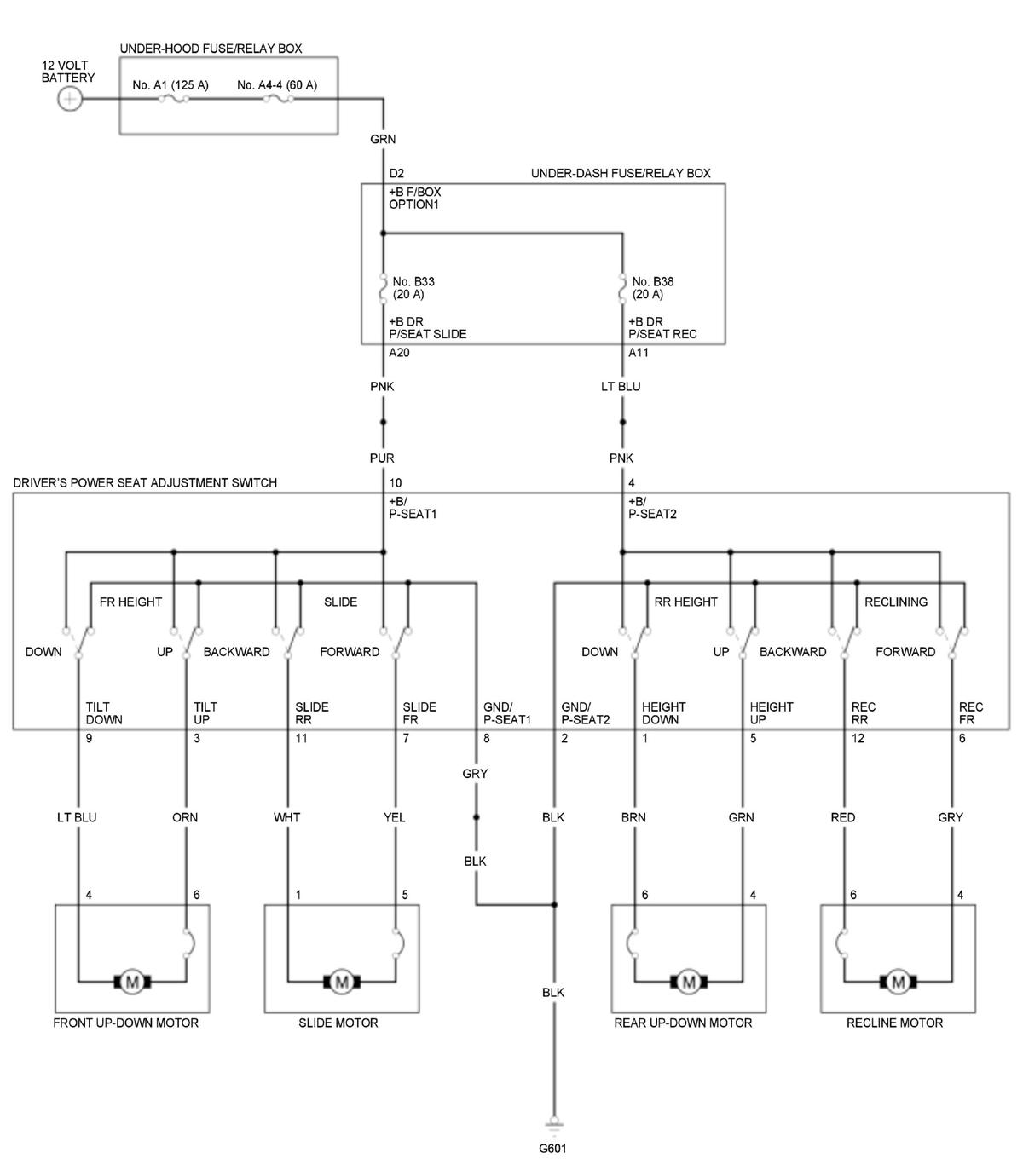

Driver's Seat

GHH397754

Courtesy of HONDA, U.S.A., INC.

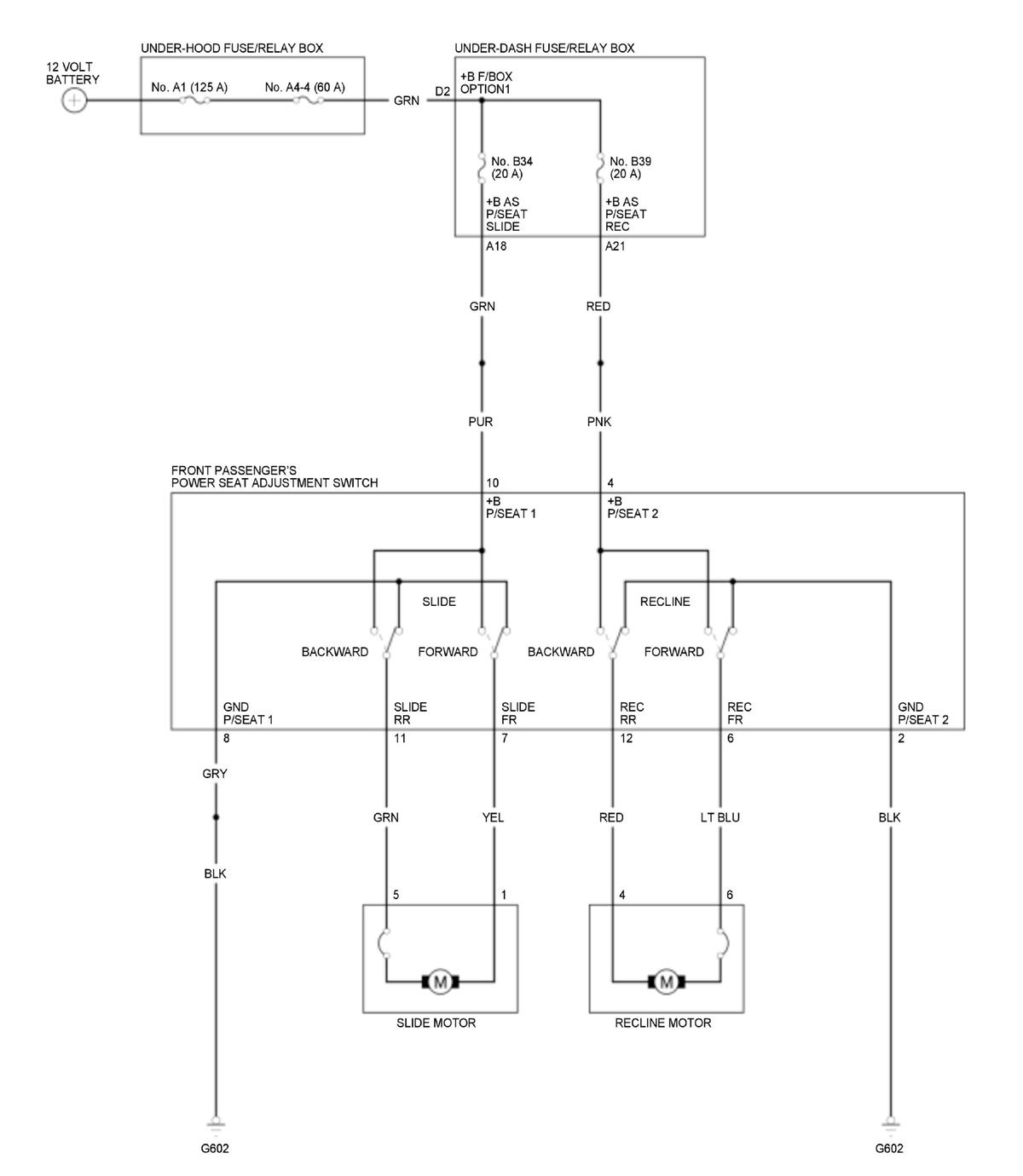

Front Passenger's Seat

GHH397755

Courtesy of HONDA, U.S.A., INC.
