DLC Circuit Troubleshooting (With ACC)

DLC Circuit Troubleshooting

NOTE:  If you suspect the HDS or the HDS DLC cable may be the source of the communication problem, verify that they are working properly by connecting them to a known-good, similar vehicle and system, and checking for communication problems.

  1. HDS communication check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Connect the HDS to the data link connector .

    NOTE:  Make sure the HDS is properly connected to the data link connector.

    -3. Turn the vehicle to the ON mode, and turn on the HDS.

    Does the HDS identify the vehicle?

    YES

    Go to step 2.

    NO

    Go to step 16.

  2. Determine possible failure area (PGM-FI system, other systems)

    -1. Check for Pending or Confirmed DTCs in the PGM-FI system with the HDS.

    DTC Description Confirmed DTC Pending DTC


    DTC (PGM-FI)

    Are any Pending or Confirmed DTCs indicated?

    YES

    Go to the indicated DTCs troubleshooting.

    NO

    If the HDS does not communicate with the PCM, go to step 3.

    NO

    If the HDS does not communicate with the SRS, go to step 5.

    NO

    If the HDS does not communicate with the VSA system, go to step 6.

    NO

    If the HDS does not communicate with the EPS system, go to step 7.

    NO

    If the HDS does not communicate with the ELECTRIC BRAKE BOOSTER system, go to step 8.

    NO

    If the HDS does not communicate with the ADAPTIVE DAMPER system, go to step 9.

    NO

    If the HDS does not communicate with the ONE PUSH START system, go to step 10.

    NO

    If the HDS does not communicate with the BODY ELECTRICAL system, go to step 11.

    NO

    If the HDS does not communicate with the DRIVING SUPPORT system, go to step 12.

  3. Open wire check (F-CAN A_H line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait more than 1 minute.

    -3. Disconnect the following connectors.

    CAN gateway 16P connector
    PCM connector A (50P)

    -4. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CAN gateway 16P connector: disconnected
      PCM connector A (50P): disconnected

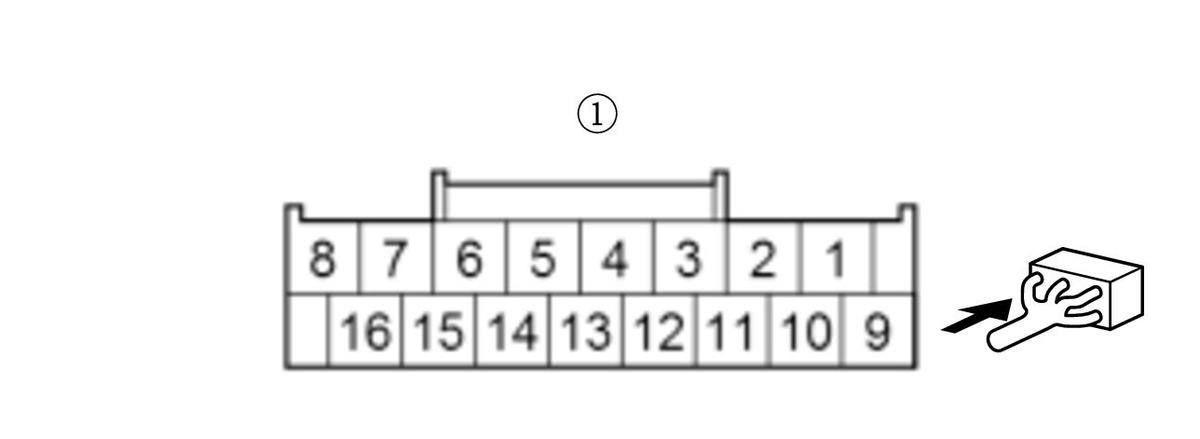

    Test point 1 CAN gateway 16P connector (female terminal) No. 3:
    Test point 2 PCM connector A (50P) No. 37
    GHH397264Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 4.

    NO

    Repair an open in the F-CAN A_H wire between the PCM (A37) and the CAN gateway.

  4. Open wire check (F-CAN A_L line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CAN gateway 16P connector: disconnected
      PCM connector A (50P): disconnected
    Test point 1 CAN gateway 16P connector (female terminal) No. 11:
    Test point 2 PCM connector A (50P) No. 36
    GHH397266Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The F-CAN A_L wire is OK. Check for poor connections or loose terminals at the CAN gateway and the PCM. Go to the PCM power and ground circuit troubleshooting .

    NO

    Repair an open in the F-CAN A_L wire between the PCM (A36) and the CAN gateway.

  5. SRS check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Turn the vehicle to the ON mode, and watch the SRS indicator.

    Does the SRS indicator come on and go off?

    YES

    Go to step 13.

    NO

    Go to the symptom troubleshooting for SRS indicator stays on, but no DTCs are stored, or cannot be read .

  6. VSA system check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Turn the vehicle to the ON mode, and watch the VSA indicator.

    Does the VSA indicator come on and go off?

    YES

    The VSA system is OK. Go to step 13.

    NO

    Go to the symptom troubleshooting for ABS indicator, brake system indicator (red), VSA indicator, and brake system indicator (amber) do not go off .

  7. EPS system check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Start the engine, and watch the EPS indicator.

    Does the EPS indicator come on and go off?

    YES

    The EPS system is OK. Go to step 13.

    NO

    Go to the symptom troubleshooting for EPS indicator does not go off, and no DTCs are stored .

  8. Electric brake booster system check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Turn the vehicle to the ON mode, and watch the brake system indicator (amber).

    Does the brake system indicator (amber) come on and go off?

    YES

    The electric brake booster system is OK. Go to step 13.

    NO

    Go to the electric brake booster symptom troubleshooting for brake system indicator (red) and brake system indicator (amber) do not go off .

  9. Adaptive damper system check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Turn the vehicle to the ON mode, and watch the adaptive damper system warning on the multi-information display (MID).

    Is the adaptive damper system warning indicated?

    YES

    Go to the general troubleshooting information for the adaptive damper system .

    NO

    The adaptive damper system is OK. Go to step 13.

  10. Keyless access system check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Turn the vehicle to the ON mode, and watch the keyless access indicator and the security indicator.

    Does the keyless access indicator stay on or the security indicator stay on or flash?

    YES

    Go to the keyless access system symptom troubleshooting information .

    NO

    Go to step 13.

  11. Body electrical system check

    -1. Do the gauge control module self-diagnostic function .

    -2. Check the gauge display.

    Is B-CAN ERROR (or Error 2) indicated?

    YES

    Check for DTCs in the body electrical system and troubleshoot the indicated DTCs.

    NO

    Go to step 13.

  12. Driving support system check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Turn the vehicle to the ON mode, and watch the ACC indicator and the LKAS indicator on the multi-information display (MID).

    Are the ACC indicator and/or the LKAS indicator indicated?

    YES

    Go to the driving support system symptom troubleshooting; ACC , LKAS .

    NO

    The driving support system is OK. Go to step 13.

  13. Open wire check (K LINE line or L-LINE line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the HDS from the data link connector.

    Disconnect the control unit (s) on the K LINE or L-LINE that does not communicate.

    NOTE:  Before disconnecting the SRS unit connector, do the 12 volt battery terminal disconnection procedure and wait for at least 3 minutes.

    K LINE

    • Audio unit connector A (24P) (without navigation)
    • Audio-navigation unit connector A (24P) (with navigation)
    • Active noise cancellation unit 20P connector
    • Body control module connector B (66P)

    L-LINE

    • SRS unit connector A (43P)
    • Body control module connector C (66P)

    -4. Check for continuity between data link connector (16P: ) No. 7 (K LINE line) and these connector terminals, or data link connector (16P: ) No. 15 (L-LINE line) and these connector terminals:

    K LINE

    Connector Terminal
    Audio unit connector A (24P) (without navigation) No. 12
    Audio-navigation unit connector A (24P) (with navigation) No. 12
    Active noise cancellation unit 20P connector No. 14
    Body control module connector B (66P) No. 38

    L-LINE

    Connector Terminal
    SRS unit connector A (43P) No. 18
    Body control module connector C (66P) No. 53

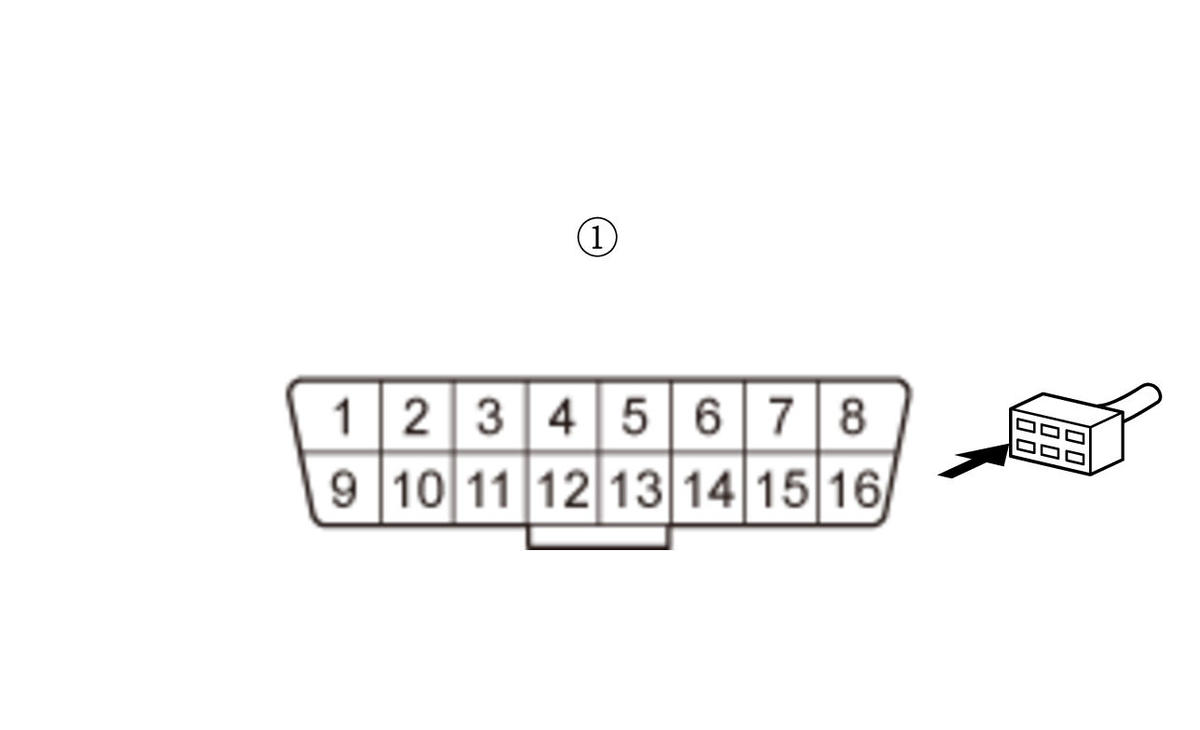

    GHH397269Courtesy of HONDA, U.S.A., INC.

    Is there continuity between the data link connector and the terminals in the chart?

    YES

    Go to step 14.

    NO

    Repair an open in the wire between the data link connector (K LINE wire or L-LINE wire) and the appropriate connector.

  14. Determine possible failure area (short in K LINE line or L-LINE line, others)

    -1. Reconnect all connectors.

    -2. If the 12 volt battery negative terminal is disconnected in step 13-3, do the 12 volt battery terminal reconnection procedure .

    -3. Turn the vehicle to the ON mode.

    -4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
    Test point 1 Data link connector (16P) (female terminal) No. 7 and No. 15:
    Test point 2 Body ground
    GHH397271Courtesy of HONDA, U.S.A., INC.

    Is there any voltage?

    YES

    Go to step 16.

    NO

    Go to step 15.

  15. Shorted wire check (K LINE line, L-LINE line):

    Continue to measure the voltage between data link connector (16P) No. 7 (K LINE line) and body ground, or data link connector (16P) No. 15 (L-LINE line) and body ground while disconnecting these parts, one at a time:

    NOTE:  Turn the vehicle to the OFF (LOCK) mode before disconnecting the connector, and turn the vehicle to the ON mode before measuring the voltage.

    K LINE

    • Audio unit connector A (24P) (without navigation)
    • Audio-navigation unit connector A (24P) (with navigation)
    • Active noise cancellation unit 20P connector
    • Body control module connector B (66P)

    L-LINE

    • SRS unit connector A (43P)
    • Body control module connector C (66P)

    Does voltage come back when one of the above components is disconnected?

    YES

    Replace the part that any voltage was detected when it was disconnected.

    NO

    Repair a short in the wire between data link connector (16P) No. 7 (K LINE) and the audio unit (without navigation), audio-navigation unit (with navigation), the active noise cancellation unit, or the body control module, or data link connector (16P) No. 15 (L-LINE) and the body control module or the SRS unit.

  16. Body electrical system (B-CAN) check

    -1. Do the gauge control module self-diagnostic function .

    -2. Check for gauge control module DTCs without the HDS.

    Is DTC U0029 and/or U0100 indicated?

    YES

    Go to the PCM power and ground circuit troubleshooting .

    NO

    Go to step 17.

  17. Open wire check (+B BACK UP line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the HDS from the data link connector.

    -3. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Test point 1 Data link connector (16P) (female terminal) No. 16:
    Test point 2 Body ground
    GHH397273Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 18.

    NO

    Repair an open in the +B BACK UP wire between data link connector (16P) No. 16 and the No. A27 fuse .

  18. Open wire check (GND line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Test point 1 Data link connector (16P) (female terminal) No. 4:
    Test point 2 Data link connector (16P) (female terminal) No. 16:
    GHH397276Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 19.

    NO

    Repair an open in the GND wire between data link connector (16P) No. 4 and G501.

  19. Open wire check (+B BACK UP line)

    -1. Disconnect the following connector.

    CAN gateway 16P connector

    -2. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CAN gateway 16P connector: disconnected
    Test point 1 CAN gateway 16P connector (female terminal) No. 1:
    Test point 2 Body ground
    GHH397278Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 20.

    NO

    Repair an open in the +B BACK UP wire between the CAN gateway and the No. A27 fuse .

  20. Open wire check (IG1 METER line)

    -1. Turn the vehicle to the ON mode.

    -2. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      CAN gateway 16P connector: disconnected
    Test point 1 CAN gateway 16P connector (female terminal) No. 9:
    Test point 2 Body ground
    GHH397280Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 21.

    NO

    Repair an open in the IG1 METER wire between the CAN gateway and the No. B36 fuse .

  21. Open wire check (GND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CAN gateway 16P connector: disconnected
    Test point 1 CAN gateway 16P connector (female terminal) No. 12:
    Test point 2 Body ground
    GHH397282Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 22.

    NO

    Repair an open in the GND wire between the CAN gateway and G502.

  22. Open wire check (DIAG-CAN_H line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CAN gateway 16P connector: disconnected

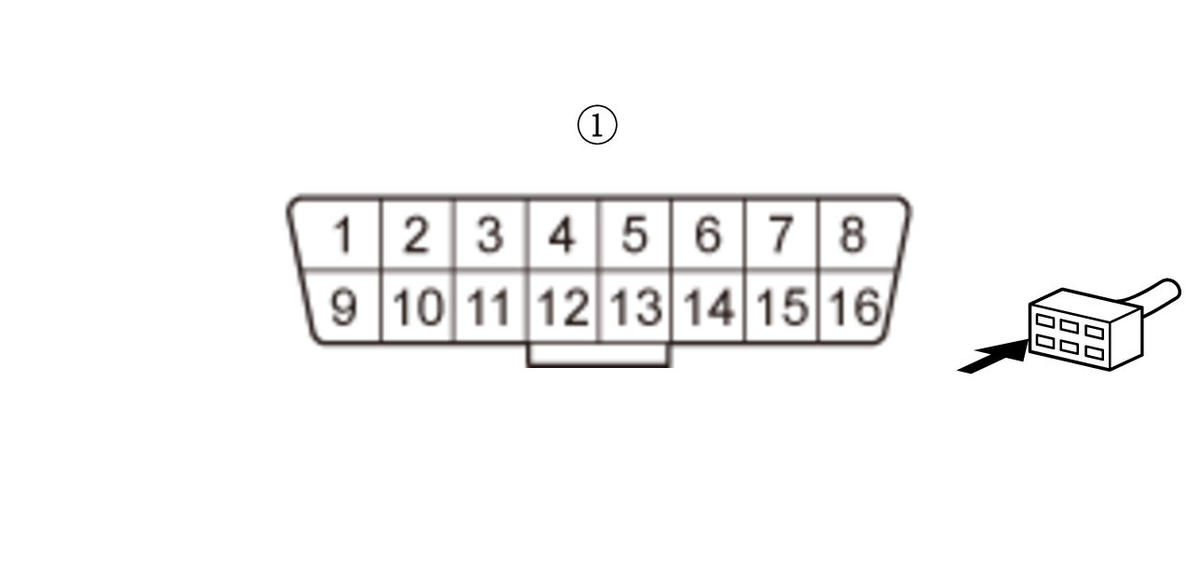

    Test point 1 CAN gateway 16P connector (female terminal) No. 2:
    Test point 2 Data link connector (16P) (female terminal) No. 6:
    GHH397285Courtesy of HONDA, U.S.A., INC.
    GHH397286Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 23.

    NO

    Repair an open in the DIAG-CAN_H wire between the CAN gateway and data link connector (16P) No. 6.

  23. Open wire check (DIAG-CAN_L line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CAN gateway 16P connector: disconnected
    Test point 1 CAN gateway 16P connector (female terminal) No. 10:
    Test point 2 Data link connector (16P) (female terminal) No. 14:
    GHH397289Courtesy of HONDA, U.S.A., INC.
    GHH397290Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 24.

    NO

    Repair an open in the DIAG-CAN_L wire between the CAN gateway and data link connector (16P) No. 14.

  24. Shorted wire check (DIAG-CAN_H line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CAN gateway 16P connector: disconnected
    Test point 1 Data link connector (16P) (female terminal) No. 6:
    Test point 2 Body ground
    GHH397292Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the DIAG-CAN_H wire between the CAN gateway and data link connector (16P) No. 6.

    NO

    Go to step 25.

  25. Shorted wire check (DIAG-CAN_L line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CAN gateway 16P connector: disconnected
    Test point 1 Data link connector (16P) (female terminal) No. 14:
    Test point 2 Body ground
    GHH397294Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the DIAG-CAN_L wire between the CAN gateway and data link connector (16P) No. 14.

    NO

    Go to step 26.

  26. Shorted wire check (DIAG-CAN_H line to DIAG-CAN_L line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CAN gateway 16P connector: disconnected
    Test point 1 Data link connector (16P) (female terminal) No. 6:
    Test point 2 Data link connector (16P) (female terminal) No. 14:
    GHH397297Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the DIAG-CAN_H wire to the DIAG-CAN_L wire between data link connector (16P) No. 6 and No. 14.

    NO

    The DIAG-CAN_H wire and DIAG-CAN_L wire are OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good CAN gateway .

scientia non olet · About LEMON Manuals
