DTC U0101, U0122, U0155 (Parking and Back-Up Sensor Control Unit)

DTC U0101 : Lost Communication with The PCM/TCM DTC U0122 : Lost Communication with The VSA Modulator-Control Unit DTC U0155 : Lost Communication with The Gauge Control Module

NOTE:

If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .
According to the detected DTC (s), check for the power circuit and the ground circuit of the control unit which cannot communicate with the parking and back-up sensor control unit.
Refer to the DTC shown on the display, then inspect the connectors and terminals based on the instructions.

DTC Description	DTC
U0101 Lost communication with the PCM/TCM
U0122 Lost communication with the VSA modulator-control unit
U0155 Lost communication with the gauge control module

DTC (Parking and Back-Up Sensor Control Unit)

CAN gateway system DTC check

-1. Check for CAN gateway system DTCs with the HDS.

DTC Description	DTC
U0029-00 CAN Gateway F-CAN ch A Bus Off
U0047-00 CAN Gateway F-CAN ch B Bus Off
U0056-00 CAN Gateway F-CAN ch C Bus Off
U0065-00 CAN Gateway F-CAN ch D Bus Off
U3000-49 CAN Gateway Internal Failure

Is DTC U0029-00, U0047-00, U0056-00, U0065-00, and/or U3000-49 indicated?

YES

Go to the troubleshooting for CAN gateway system DTC (s) .

Go to step 2.

F-CAN circuit communication check
-1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

F-CAN Bus Connected Unit Check

Does the parking and back-up sensor control unit detect the CAN gateway Bus channel B?

Bus B is Not Available

Go to step 3.

Bus B is Available

Go to step 4.

Open wire check (F-CAN B lines)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Disconnect the following connectors.

CAN gateway 16P connector

Parking and back-up sensor control unit 24P connector

-3. Check for continuity between test points 1 and 2 respectively.

Test condition	Vehicle OFF (LOCK) mode CAN gateway 16P connector: disconnected Parking and back-up sensor control unit 24P connector: disconnected

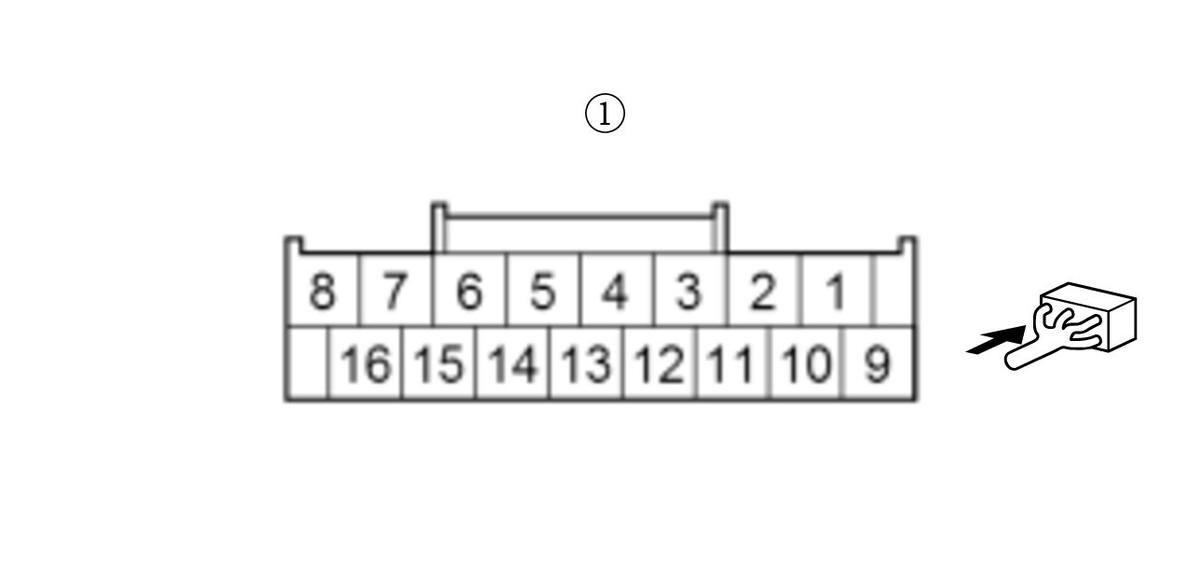

Test point 1	CAN gateway 16P connector (female terminals) No. 6:
Test point 2	Parking and back-up sensor control unit 24P connector No. 22

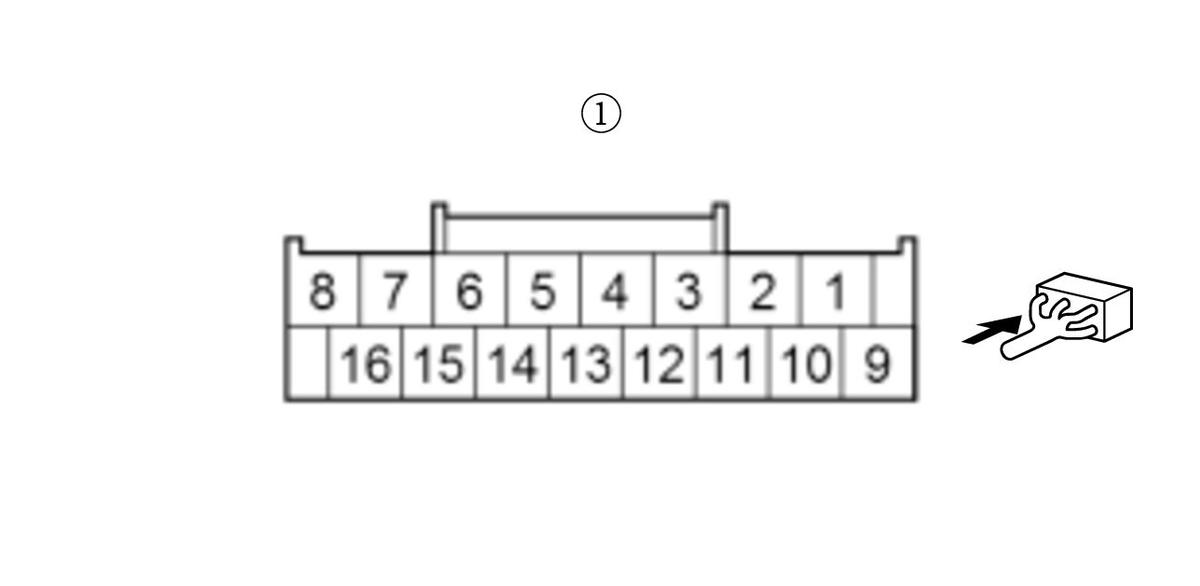

Test point 1	CAN gateway 16P connector (female terminals) No. 14:
Test point 2	Parking and back-up sensor control unit 24P connector No. 10

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The F-CAN B_H and F-CAN B_L wires are OK. Check for poor connections or loose terminals at the CAN gateway and the parking and back-up sensor control unit. If they are OK, replace the parking and back-up sensor control unit .

Repair an open in F-CAN B_H or F-CAN B_L wire between the CAN gateway and the parking and back-up sensor control unit.

F-CAN circuit communication check (Transmitting control unit)

-1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

F-CAN Bus Connected Unit Check

According to the detected DTC on the following table, make sure that the transmitting control unit detects the CAN gateway Bus channel (s) normally.

DTC	Transmitting control unit	Detected CAN gateway Bus channel (s) at normal
U0101 *1	TCM	A, D
U0101 *2	TCM	A
U0122	VSA modulator-control unit	A, B
U0155	Gauge control module	C

*1: A/T

*2: CVT

Is it detected normally?

Detected normal

Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the transmitting control unit and the CAN gateway.

Any of control units are Not Available for Bus A

Go to step 5.

Any of control units are Not Available for Bus B

Go to step 6.

Any of control units are Not Available for Bus C

Go to step 7.

Any of control units are Not Available for Bus D

Go to step 8.

Open wire check (F-CAN A lines)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. According to the detected DTC on the following table, disconnect the transmitting control unit connector (s).

DTC	Connector
-	CAN gateway 16P connector
U0101 *1	TCM connector A (23P)
U0101 *2	TCM 50P connector
U0122	VSA modulator-control unit 46P connector

*1: A/T

*2: CVT

-3. Check for continuity between test points 1 and 2.

Test condition

Vehicle OFF (LOCK) mode
CAN gateway 16P connector: disconnected
Transmitting control unit connector (s) for indicated DTCs: disconnected

DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
DTC	Circuit name	Connector	Terminal	Connector	Terminal

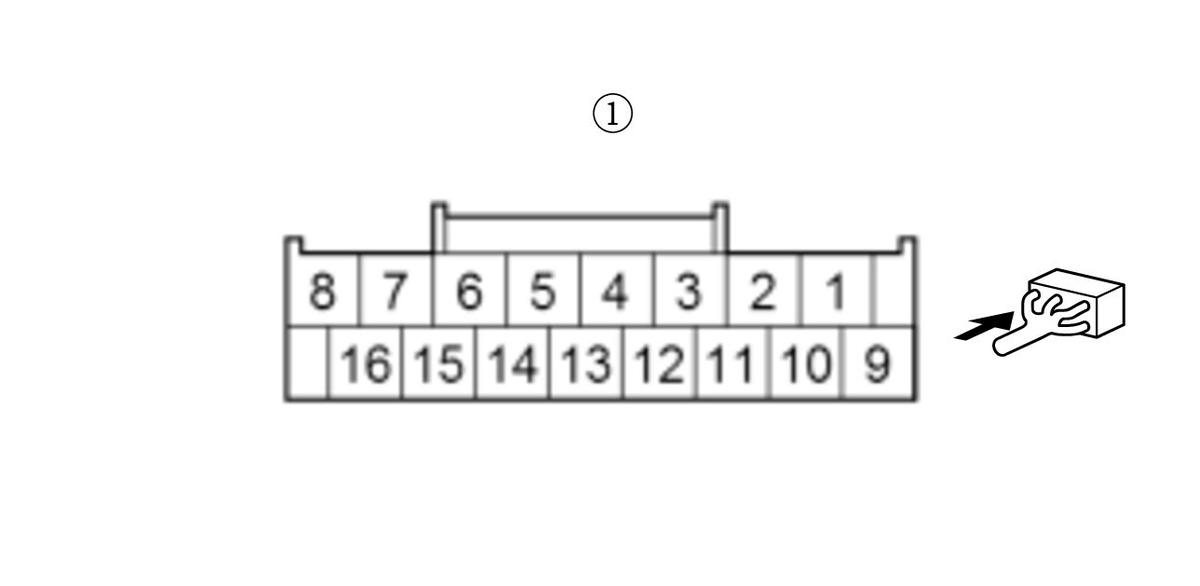

U0101 *1	F-CAN A_H	CAN gateway 16P connector (female terminals):	No. 3	TCM connector A (23P)	No. 19
U0101 *1	F-CAN A_L	CAN gateway 16P connector (female terminals):	No. 11	TCM connector A (23P)	No. 18
U0101 *2	F-CAN A_H	CAN gateway 16P connector (female terminals):	No. 3	TCM 50P connector	No. 3
U0101 *2	F-CAN A_L	CAN gateway 16P connector (female terminals):	No. 11	TCM 50P connector	No. 11
U0122	F-CAN A_H	CAN gateway 16P connector (female terminals):	No. 3	VSA modulator-control unit 46P connector	No. 20
U0122	F-CAN A_L	CAN gateway 16P connector (female terminals):	No. 11	VSA modulator-control unit 46P connector	No. 21

*1: A/T

*2: CVT

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The F-CAN A_H wire and the F-CAN A_L wire are OK.

According to the detected DTC on the following table, substitute or replace the control unit based on the instructions (see table).

DTC	Operation for transmitting control unit
U0101	Substitute a known-good TCM (A/T , CVT ), then recheck. If DTC U0101 goes away after substitution, replace the original TCM (A/T , CVT ).

DTC	Operation for transmitting control unit
U0122	Replace the VSA modulator-control unit .

Repair an open in F-CAN A_H or F-CAN A_L wire between the CAN gateway and the transmitting control unit.

Open wire check (F-CAN B lines)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. According to the detected DTC on the following table, disconnect the transmitting control unit connector (s).

DTC	Connector
-	CAN gateway 16P connector
U0122	VSA modulator-control unit 46P connector

-3. Check for continuity between test points 1 and 2.

Test condition

Vehicle OFF (LOCK) mode
CAN gateway 16P connector: disconnected
Transmitting control unit connector (s) for indicated DTCs: disconnected

DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
DTC	Circuit name	Connector	Terminal	Connector	Terminal
U0122	F-CAN B_H	CAN gateway 16P connector (female terminals):	No. 3	VSA modulator-control unit 46P connector	No. 24
U0122	F-CAN B_L	CAN gateway 16P connector (female terminals):	No. 11	VSA modulator-control unit 46P connector	No. 25

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The F-CAN B_H wire and the F-CAN B_L wire are OK.

According to the detected DTC on the following table, substitute or replace the control unit based on the instructions (see table).

DTC	Operation for transmitting control unit
U0122	Replace the VSA modulator-control unit .

Repair an open in F-CAN B_H or F-CAN B_L wire between the CAN gateway and the transmitting control unit.

Open wire check (F-CAN C lines)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. According to the detected DTC on the following table, disconnect the transmitting control unit connector (s).

DTC	Connector
-	CAN gateway 16P connector
U0155	Gauge control module connector A (32P)

-3. Check for continuity between test points 1 and 2.

Test condition

Vehicle OFF (LOCK) mode
CAN gateway 16P connector: disconnected
Transmitting control unit connector (s) for indicated DTCs: disconnected

DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
DTC	Circuit name	Connector	Terminal	Connector	Terminal
U0155	F-CAN C_H	CAN gateway 16P connector (female terminals):	No. 5	Gauge control module connector A (32P)	No. 20
U0155	F-CAN C_L	CAN gateway 16P connector (female terminals):	No. 13	Gauge control module connector A (32P)	No. 21

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The F-CAN C_H wire and the F-CAN C_L wire are OK.

According to the detected DTC on the following table, substitute or replace the control unit based on the instructions (see table).

DTC	Operation for transmitting control unit
U0155	Substitute a known-good gauge control module , then recheck. If DTC U0155 goes away after substitution, replace the original gauge control module .

Repair an open in F-CAN C_H or F-CAN C_L wire between the CAN gateway and the transmitting control unit.

Open wire check (F-CAN D lines)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. According to the detected DTC on the following table, disconnect the transmitting control unit connectors.

DTC	Connector
-	CAN gateway 16P connector
U0101	TCM connector A (23P)

-3. Check for continuity between test points 1 and 2.

Test condition

Vehicle OFF (LOCK) mode
CAN gateway 16P connector: disconnected
Transmitting control unit connector (s) for indicated DTCs: disconnected

DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
DTC	Circuit name	Connector	Terminal	Connector	Terminal
U0101	F-CAN D_H	CAN gateway 16P connector (female terminals):	No. 7	TCM connector A (23P)	No. 13
U0101	F-CAN D_L	CAN gateway 16P connector (female terminals):	No. 15	TCM connector A (23P)	No. 12

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The F-CAN D_H wire and the F-CAN D_L wire are OK.

According to the detected DTC on the following table, substitute or replace the control unit based on the instructions (see table).

DTC	Operation for transmitting control unit
U0101	Substitute a known-good TCM , then recheck. If DTC U0101 goes away after substitution, replace the original TCM .

Repair an open in F-CAN D_H or F-CAN D_L wire between the CAN gateway and the transmitting control unit.
