DTC B2641-87 (2018 2019 2020)

DTC B2641-87  : Lost Communication with The Front Right Corner Sensor

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

DTC (Parking and Back-Up Sensor Control Unit)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -3. Turn the parking and back-up sensor switch to ON.

   -4. Wait for at least 6 seconds.

   -5. Check for DTCs with the HDS.

   DTC Description	DTC
   B2641-87 Lost communication with the front right corner sensor

   Is DTC B2641-87 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. DTC check

   -1. Check for DTCs with the HDS.

   DTC Description	DTC
   B2638-87 Lost communication with the front left corner sensor
   B2641-87 Lost communication with the front right corner sensor

   Is DTC B2638-87 and/or B2641-87 indicated?

   YES

   Go to step 3.

   YES

   Go to step 8.

   NO

   Check for loose or poor connections. If OK, replace the parking and back-up sensor control unit .

3. Right front corner sensor check

   -1. Swap the right front corner sensor and the right rear corner sensor .

   -2. Clear the DTCs with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -4. Turn the parking and back-up sensor switch to ON.

   -5. Wait for at least 6 seconds.

   -6. Check for DTCs with the HDS.

   DTC Description	DTC
   B2641-87 Lost communication with the front right corner sensor

   Is DTC B2641-87 indicated?

   YES

   Go to step 4.

   NO

   Replace the original right front corner sensor .

4. Determine possible failure area (SOF SIDE R line, power and ground lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Right front corner sensor 6P connector

   -3. Turn the vehicle to the ON mode.

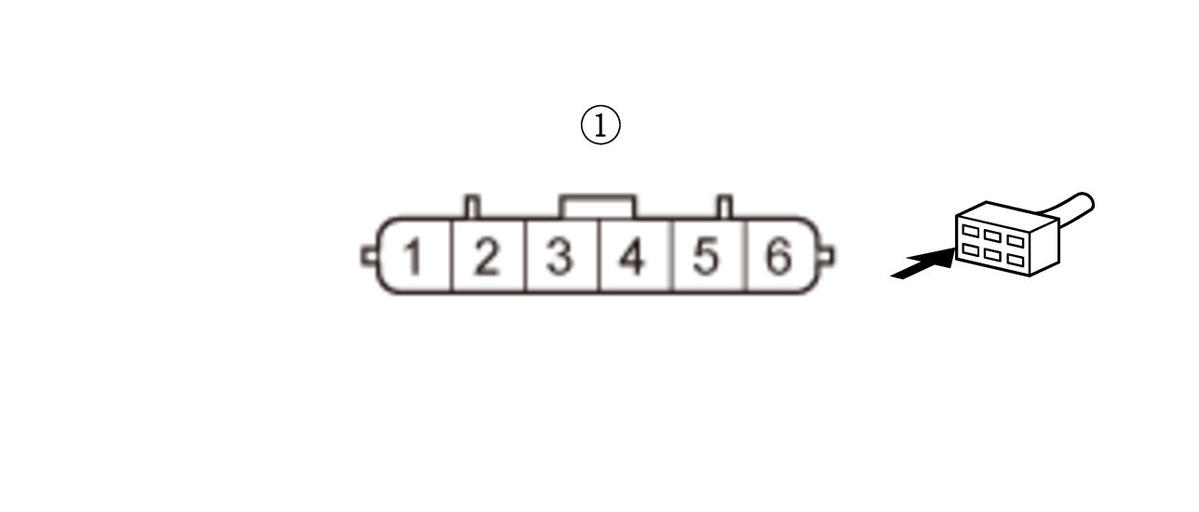

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode Right front corner sensor 6P connector: disconnected
   Test point 1	Right front corner sensor 6P connector (female terminals) No. 6:
   Test point 2	Right front corner sensor 6P connector (female terminals) No. 4:

   Courtesy of HONDA, U.S.A., INC.

   Is there about 9 V?

   YES

   Go to step 5.

   NO

   Go to step 7.

5. Shorted wire check (SOF SIDE R line to power)

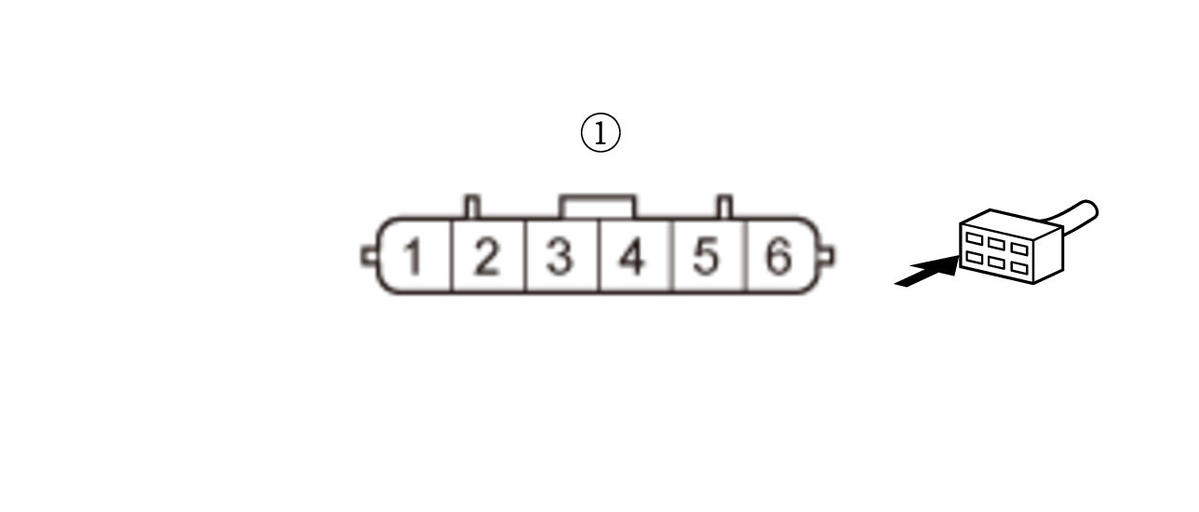

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode Right front corner sensor 6P connector: disconnected
   Test point 1	Right front corner sensor 6P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Repair a short to power in SOF SIDE R wire between the right front corner sensor and the parking and back-up sensor control unit.

   NO

   The SOF SIDE R wire is not shorted to power, go to step 6.

6. Shorted wire check (SOF SIDE R line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Parking and back-up sensor control unit 24P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Right front corner sensor 6P connector: disconnected Parking and back-up sensor control unit 24P connector: disconnected
   Test point 1	Right front corner sensor 6P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in SOF SIDE R wire between the right front corner sensor and the parking and back-up sensor control unit.

   NO

   Repair an open or high resistance in SOF SIDE R wire between the right front corner sensor and the parking and back-up sensor control unit.

7. Open wire check (BOF CTR L, E1 CTR L lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Left front corner sensor 6P connector

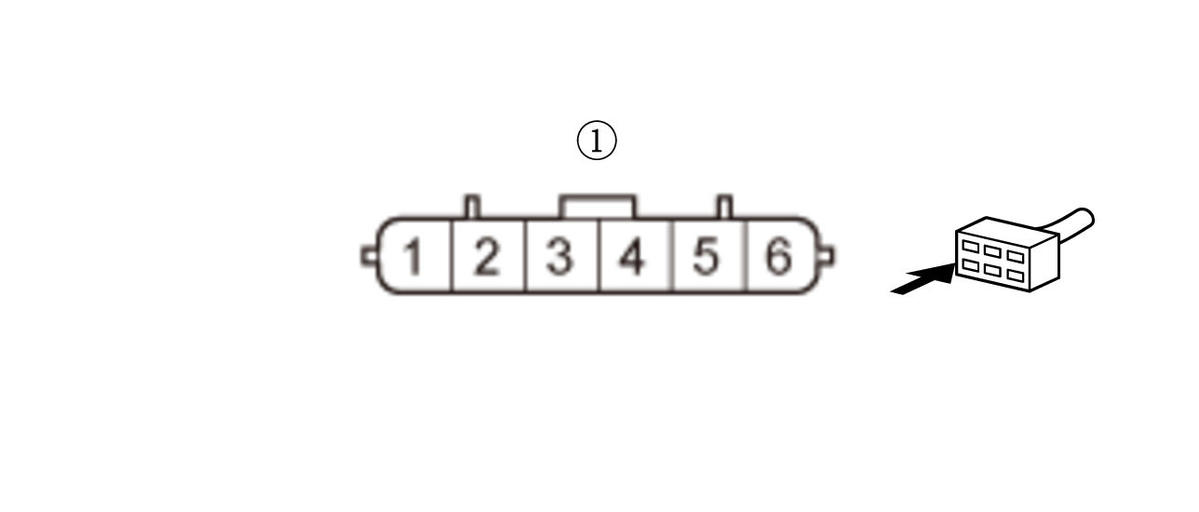

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Right front corner sensor 6P connector: disconnected Left front corner sensor 6P connector: disconnected
   Test point 1	Right front corner sensor 6P connector (female terminals) No. 6:
   Test point 2	Left front corner sensor 6P connector (female terminals) No. 5:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair an open or high resistance in E1 CTR L wire between the right front corner sensor and the left front corner sensor.

   NO

   Repair an open or high resistance in BOF CTR L wire between the right front corner sensor and the left front corner sensor.

8. Open wire check (BOF SIDE L, E1 SIDE L lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

   Parking and back-up sensor control unit 24P connector

   Left front corner sensor 6P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Parking and back-up sensor control unit 24P connector: disconnected Left front corner sensor 6P connector: disconnected
   Test point 1	Parking and back-up sensor control unit 24P connector No. 2
   Test point 2	Left front corner sensor 6P connector (female terminals) No. 6:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair an open or high resistance in E1 SIDE L wire between the parking and back-up sensor control unit and the left front corner sensor.

   NO

   Repair an open or high resistance in BOF SIDE L wire between the parking and back-up sensor control unit and the left front corner sensor.
