DTC P0589-15

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Acura RLX, 2019 Acura RLX, 2018 Acura RLX, 2017 Acura RLX, and 2016 Acura RLX. However, it is still accessible from the selected car via links, so may be relevant.

DTC P0589-15  : Main Switch Signal Circuit Open

NOTE: Before you troubleshoot, review the general troubleshooting information .

DTC Description DTC Freeze Frame
P0589-15 Main Switch Signal Circuit Open

DTC (IDAS)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    -2. Clear the DTC with the HDS.

    -3. Turn the vehicle to the OFF (LOCK) mode.

    -4. Turn the vehicle to the ON mode, then wait for at least 5 seconds.

    -5. Check for DTCs with the HDS.

    DTC Description DTC Freeze Frame
    P0589-15 Main Switch Signal Circuit Open

    Is DTC P0589-15 indicated?

    YES

    The failure is duplicated. Go to step 2.

    NO

    Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting . If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

  2. Open wire check (CRUISE SW line) 1

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Steering commander switch 16P connector

    -3. Turn the vehicle to the ON mode.

    -4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Steering commander switch 16P connector: disconnected
    Test point 1 Steering commander switch 16P connector No. 11
    Test point 2 Body ground

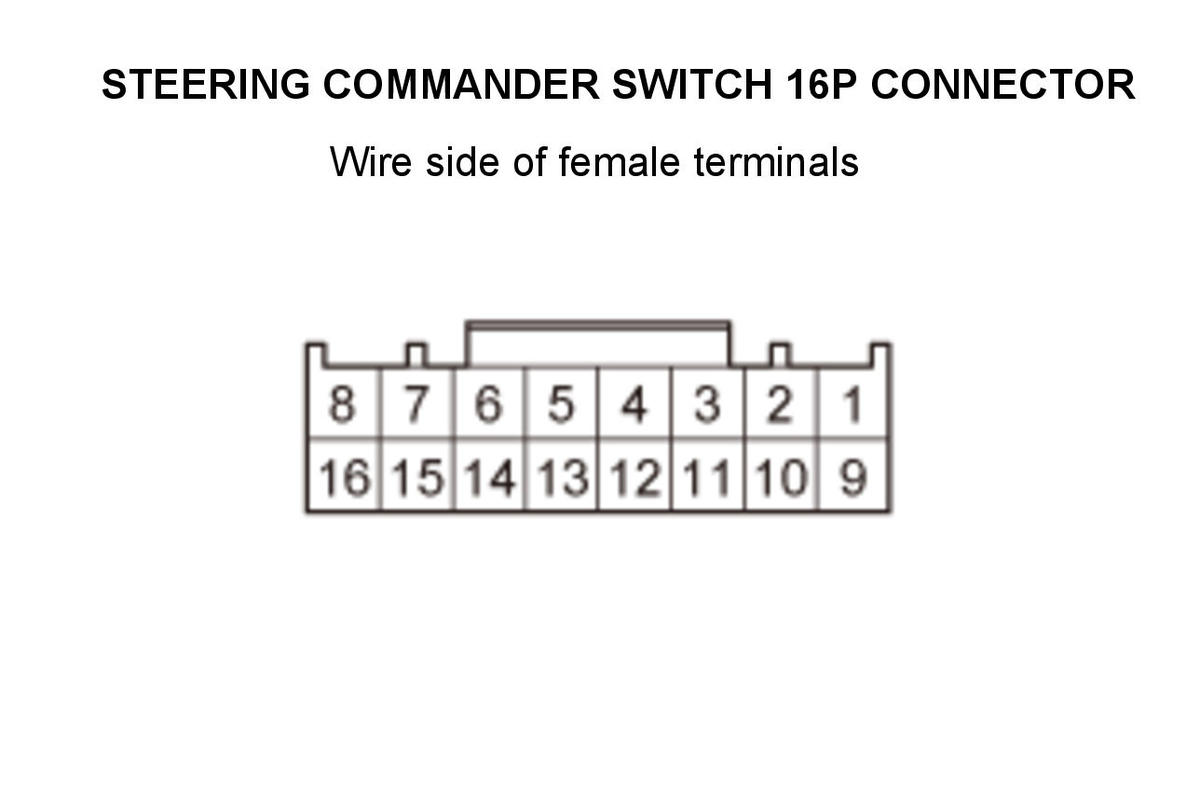

    GHH349243Courtesy of HONDA, U.S.A., INC.

    Is there about 5 V?

    YES

    The CRUISE SW wire is not open. Go to step 3.

    NO

    Go to step 7.

  3. ACC combination switch internal circuit check

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Steering commander switch 16P connector: disconnected
    Test point 1 Steering commander switch 16P connector No. 2
    Test point 2 Steering commander switch 16P connector No. 11
    GHH349244Courtesy of HONDA, U.S.A., INC.

    Is there about 5 V?

    YES

    Replace the steering commander switch assembly .

    NO

    Go to step 4.

  4. Open wire check (CRUISE GND line)1

    -1. Check for continuity between test points 1 and 2 without disconnect the cable reel connector C (20P).

    Test condition Vehicle OFF (LOCK) mode
      Steering commander switch 16P connector: disconnected
    Test point 1 Cable reel connector C (20P) No. 16
    Test point 2 Body ground

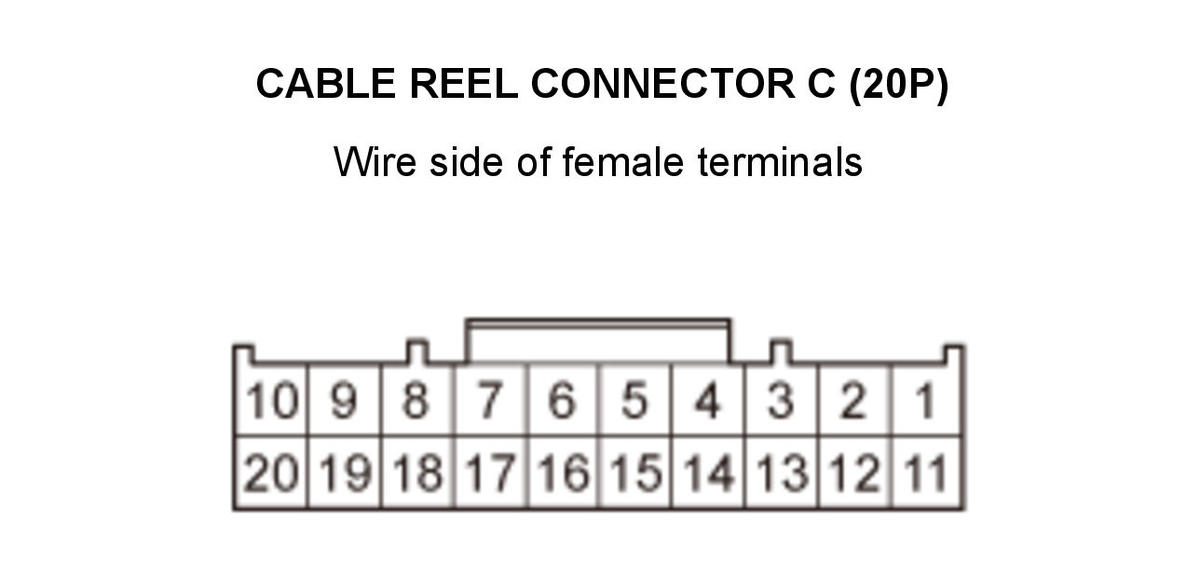

    GHH349245Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair an open in the wire between the steering commander switch and the cable reel.

    NO

    Go to step 5.

  5. Open wire check (CRUISE GND line) 2

    -1. Check for continuity between test points 1 and 2 without disconnect the cable reel connector A (20P).

    Test condition Vehicle OFF (LOCK) mode
      Steering commander switch 16P connector: disconnected
    Test point 1 Cable reel connector A (20P) No. 4
    Test point 2 Body ground
    GHH349246Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Replace the cable reel .

    NO

    Go to step 6.

  6. Open wire check (CRUISE GND line) 3

    -1. Disconnect the following connectors.

    Gauge control module connector A (32P)
    Cable reel connector A (20P)

    -2. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Steering commander switch 16P connector: disconnected
    Test point 1 Gauge control module connector A (32P) No. 30
    Test point 2 Cable reel connector A (20P) No. 4

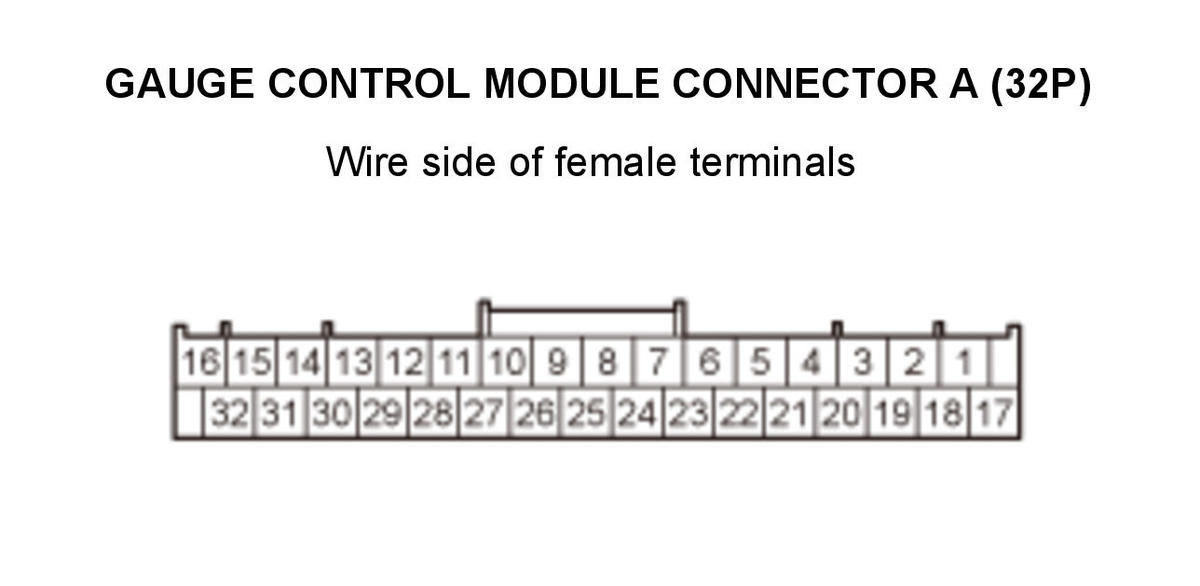

    GHH349247Courtesy of HONDA, U.S.A., INC.

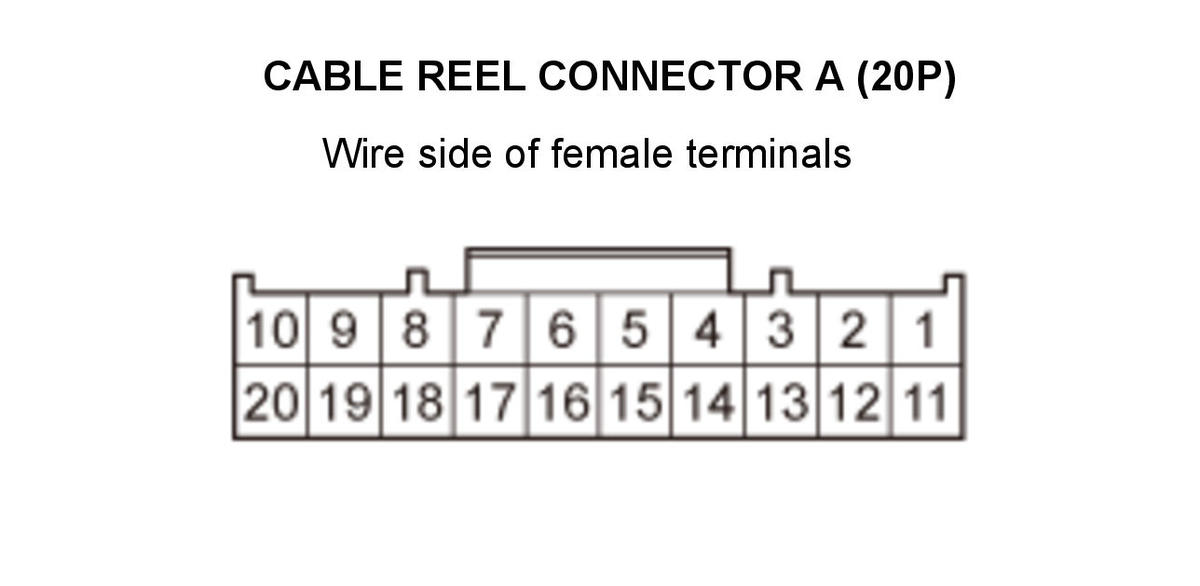

    GHH349248Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The CRUISE GND wire is not open. Replace the gauge control module .

    NO

    Repair an open in the wire between the gauge control module and the cable reel.

  7. Open wire check (CRUISE SW line) 2

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Steering commander switch 16P connector: disconnected
    Test point 1 Cable reel connector C (20P) No. 17
    Test point 2 Body ground

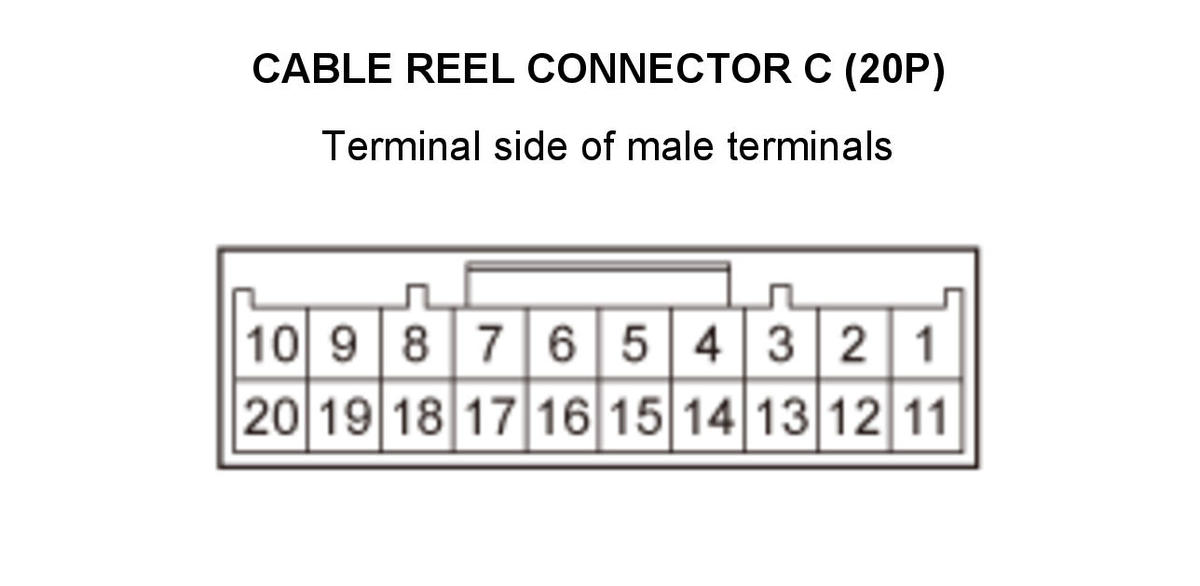

    GHH349249Courtesy of HONDA, U.S.A., INC.

    Is there about 5 V?

    YES

    Repair an open in the wire between the steering commander switch and the cable reel.

    NO

    Go to step 8.

  8. Open wire check (CRUISE SW line) 3

    -1. Measure the voltage between test points 1 and 2 without disconnect the cable reel connector A (20P).

    Test condition Vehicle ON mode
      Steering commander switch 16P connector: disconnected
    Test point 1 Cable reel connector A (20P) No. 5
    Test point 2 Body ground
    GHH349250Courtesy of HONDA, U.S.A., INC.

    Is there about 5 V?

    YES

    Replace the cable reel .

    NO

    Go to step 9.

  9. Open wire check (CRUISE SW line) 4

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

    Gauge control module connector A (32P)
    Cable reel connector A (20P)

    -3. Check for continuity between test points 1 and 2.

    Test condition Vehicle ON mode
      Steering commander switch 16P connector: disconnected
    Test point 1 Gauge control module connector A (32P) No. 4
    Test point 2 Cable reel connector A (20P) No. 5
    GHH349251Courtesy of HONDA, U.S.A., INC.
    GHH349252Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The CRUISE SW wire is not open. Replace the gauge control module .

    NO

    Repair an open in the wire between the gauge control module and the cable reel.
