DTC U0056-00 (With Navigation) (2014 2015)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Acura RLX, 2019 Acura RLX, 2018 Acura RLX, 2017 Acura RLX, and 2016 Acura RLX. However, it is still accessible from the selected car via links, so may be relevant.

DTC U0056-00  : CAN Gateway F-CAN ch C Bus Off

NOTE:  Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information .

DTC Description DTC
U0056-00 CAN Gateway F-CAN ch C Bus Off

DTC (CAN gateway)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    -2. Clear the DTC with the HDS.

    -3. Turn the vehicle to the OFF (LOCK) mode.

    -4. Turn the vehicle to the ON mode, and wait 6 seconds.

    -5. Check for DTCs with the HDS.

    DTC Description DTC
    U0056-00 CAN Gateway F-CAN ch C Bus Off

    Is DTC U0056-00 indicated?

    YES

    Go to step 2.

    NO

    Intermittent failure, the system is OK at this time.

  2. Shorted unit check (VSA modulator-control unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS.

    -3. Disconnect the following connector.

    VSA modulator-control unit 38P connector

    -4. Turn the vehicle to the ON mode.

    -5. Clear the DTC with the HDS.

    -6. Turn the vehicle to the OFF (LOCK) mode.

    -7. Turn the vehicle to the ON mode, and wait 6 seconds.

    -8. Check for DTCs with the HDS.

    DTC Description DTC
    U0056-00 CAN Gateway F-CAN ch C Bus Off

    Is DTC U0056-00 indicated?

    YES (with ACC)

    Go to step 3.

    YES (without ACC)

    Go to step 4.

    NO

    Update the VSA modulator-control unit if it does not have the latest software, then recheck. If DTC U0056-00 goes away and the VSA modulator-control unit was updated, troubleshooting is complete. If DTC U0056-00 was indicated after the VSA modulator-control unit updated, replace the original VSA modulator-control unit .

  3. Shorted unit check (ACC unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    ACC unit 20P connector

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0056-00 CAN Gateway F-CAN ch C Bus Off

    Is DTC U0056-00 indicated?

    YES

    Go to step 4.

    NO

    Update the ACC unit if it does not have the latest software, or substitute a known-good ACC unit , then recheck. If DTC U0056-00 goes away and the ACC unit was updated, troubleshooting is complete. If DTC U0056-00 goes away and the ACC unit was substituted, replace the original ACC unit .

  4. Shorted unit check (audio-navigation unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Audio-navigation unit connector F (18P)

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0056-00 CAN Gateway F-CAN ch C Bus Off

    Is DTC U0056-00 indicated?

    YES (with FCW/LDW)

    Go to step 5.

    YES (without FCW/LDW)

    Go to step 6.

    NO

    Substitute a known-good audio-navigation unit , then recheck. If DTC U0056-00 goes away and the audio-navigation unit was substituted, replace the original audio-navigation unit .

  5. Shorted unit check (FCW/LDW camera unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    FCW/LDW camera unit 10P connector

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0056-00 CAN Gateway F-CAN ch C Bus Off

    Is DTC U0056-00 indicated?

    YES

    Go to step 6.

    NO

    Update the FCW/LDW camera unit if it does not have the latest software, or substitute a known-good FCW/LDW camera unit , then recheck. If DTC U0056-00 goes away and the FCW/LDW camera unit was updated, troubleshooting is complete. If DTC U0056-00 goes away and the FCW/LDW camera unit was substituted, replace the original FCW/LDW camera unit .

  6. Shorted unit check (steering angle sensor)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Steering angle sensor 4P connector

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0056-00 CAN Gateway F-CAN ch C Bus Off

    Is DTC U0056-00 indicated?

    YES (with LKAS)

    Go to step 7.

    YES (without LKAS)

    Go to step 8.

    NO

    Substitute a known-good steering angle sensor , then recheck. If DTC U0056-00 goes away and the steering angle sensor was substituted, replace the original steering angle sensor .

  7. Shorted unit check (LKAS camera/control unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    LKAS camera/control unit 8P connector

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0056-00 CAN Gateway F-CAN ch C Bus Off

    Is DTC U0056-00 indicated?

    YES

    Go to step 8.

    NO

    Update the LKAS camera/control unit if it does not have the latest software, or substitute a known-good LKAS camera/control unit , then recheck. If DTC U0056-00 goes away and the LKAS camera/control unit was updated, troubleshooting is complete. If DTC U0056-00 goes away and the LKAS camera/control unit was substituted, replace the original LKAS camera/control unit .

  8. Shorted unit check (TPMS control unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    TPMS control unit 20P connector

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0056-00 CAN Gateway F-CAN ch C Bus Off

    Is DTC U0056-00 indicated?

    YES

    Go to step 9.

    NO

    Substitute a known-good TPMS control unit , then recheck. If DTC U0056-00 goes away and the TPMS control unit was substituted, replace the original TPMS control unit .

  9. Shorted unit check (precision all wheel steer control unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Precision all wheel steer control unit 16P connector

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0056-00 CAN Gateway F-CAN ch C Bus Off

    Is DTC U0056-00 indicated?

    YES

    Go to step 10.

    NO

    Update the precision all wheel steer control unit if it does not have the latest software, or substitute a known-good precision all wheel steer control unit , then recheck. If DTC U0056-00 goes away and the precision all wheel steer control unit was updated, troubleshooting is complete. If DTC U0056-00 goes away and the precision all wheel steer control unit was substituted, replace the original precision all wheel steer control unit .

  10. Shorted unit check (EPS control unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    EPS control unit connector B (6P)

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0056-00 CAN Gateway F-CAN ch C Bus Off

    Is DTC U0056-00 indicated?

    YES

    Go to step 11.

    NO

    Update the EPS control unit if it does not have the latest software, then recheck. If DTC U0056-00 goes away and the EPS control unit was updated, troubleshooting is complete. If DTC U0056-00 was indicated after the EPS control unit updated, replace the original EPS control unit .

  11. Shorted wire check (F-CAN C_H line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    CAN gateway 24P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      VSA modulator-control unit 38P connector: disconnected
      ACC unit 20P connector (with ACC): disconnected
      Audio-navigation unit connector F (18P): disconnected
      FCW/LDW camera unit 10P connector (with FCW/LDW): disconnected
      Steering angle sensor 4P connector: disconnected
      LKAS camera/control unit 8P connector (with LKAS): disconnected
      TPMS control unit 20P connector: disconnected
      Precision all wheel steer control unit 16P connector: disconnected
      EPS control unit connector B (6P): disconnected
      CAN gateway 24P connector: disconnected

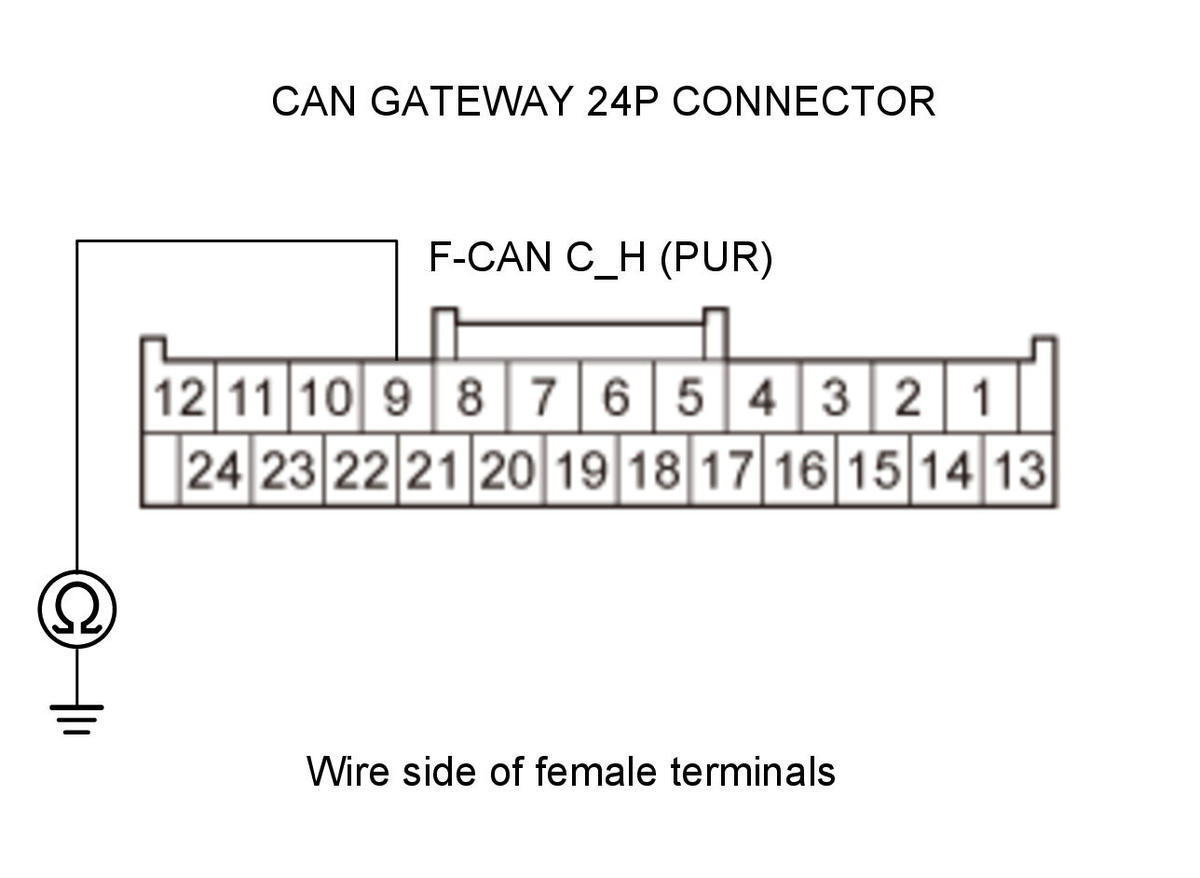

    Test circuit F-CAN C_H
    Test point 1 CAN gateway 24P connector No. 9 (PUR)
    Test point 2 Body ground
    GHH342761Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the F-CAN C_H wire between the CAN gateway and the connected units.

    NO

    The F-CAN C_H wire is not short to ground. Go to step 12.

  12. Shorted wire check (F-CAN C_L line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      VSA modulator-control unit 38P connector: disconnected
      ACC unit 20P connector (with ACC): disconnected
      Audio-navigation unit connector F (18P): disconnected
      FCW/LDW camera unit 10P connector (with FCW/LDW): disconnected
      Steering angle sensor 4P connector: disconnected
      LKAS camera/control unit 8P connector (with LKAS): disconnected
      TPMS control unit 20P connector: disconnected
      Precision all wheel steer control unit 16P connector: disconnected
      EPS control unit connector B (6P): disconnected
      CAN gateway 24P connector: disconnected
    Test circuit F-CAN C_L
    Test point 1 CAN gateway 24P connector No. 8 (PNK)
    Test point 2 Body ground
    GHH342762Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the F-CAN C_L wire between the CAN gateway and the connected units.

    NO

    The F-CAN C_L wire is not short to ground. Go to step 13.

  13. Shorted wire check (F-CAN C_H line to F-CAN C_L line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      VSA modulator-control unit 38P connector: disconnected
      ACC unit 20P connector (with ACC): disconnected
      Audio-navigation unit connector F (18P): disconnected
      FCW/LDW camera unit 10P connector (with FCW/LDW): disconnected
      Steering angle sensor 4P connector: disconnected
      LKAS camera/control unit 8P connector (with LKAS): disconnected
      TPMS control unit 20P connector: disconnected
      Precision all wheel steer control unit 16P connector: disconnected
      EPS control unit connector B (6P): disconnected
      CAN gateway 24P connector: disconnected

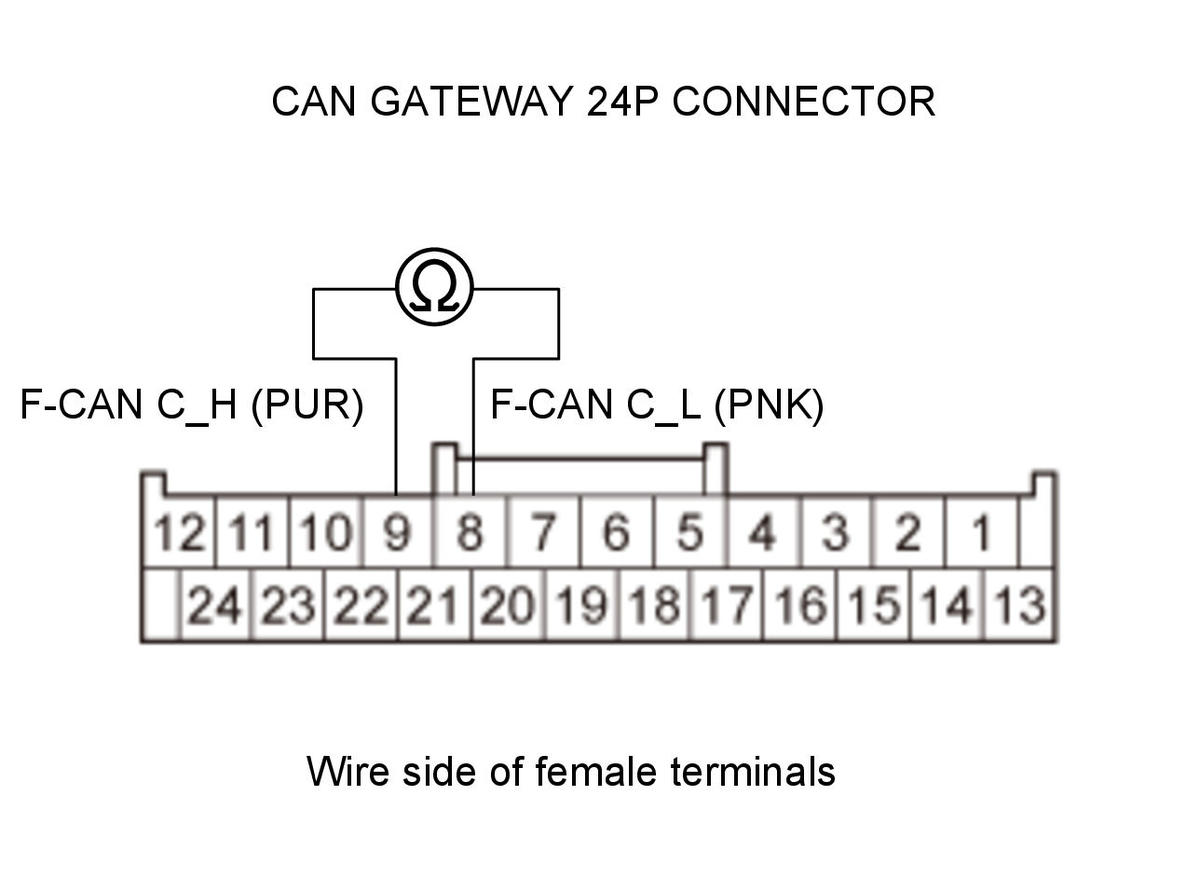

    Test circuit F-CAN C_H, F-CAN C_L
    Test point 1 CAN gateway 24P connector No. 9 (PUR)
    Test point 2 CAN gateway 24P connector No. 8 (PNK)
    GHH342763Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the F-CAN C_H wire to the F-CAN C_L wire between CAN gateway terminals No. 8 and No. 9.

    NO

    Update the CAN gateway if it does not have the latest software, or substitute a known-good CAN gateway , then recheck. If DTC U0056-00 goes away and the CAN gateway was updated, troubleshooting is complete. If DTC U0056-00 goes away and the CAN gateway was substituted, replace the original CAN gateway .
