DTC U0047-00 (CAN Gateway) (2014 2015)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Acura RLX, 2019 Acura RLX, 2018 Acura RLX, 2017 Acura RLX, and 2016 Acura RLX. However, it is still accessible from the selected car via links, so may be relevant.

DTC U0047-00  : CAN Gateway F-CAN ch B Bus Off

NOTE:  Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information .

DTC Description DTC
U0047-00 CAN Gateway F-CAN ch B Bus Off

DTC (CAN gateway)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    -2. Clear the DTC with the HDS.

    -3. Turn the vehicle to the OFF (LOCK) mode.

    -4. Turn the vehicle to the ON mode, and wait 6 seconds.

    -5. Check for DTCs with the HDS.

    DTC Description DTC
    U0047-00 CAN Gateway F-CAN ch B Bus Off

    Is DTC U0047-00 indicated?

    YES

    Go to step 2.

    NO

    Intermittent failure, the system is OK at this time.

  2. Shorted unit check (PCM)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS.

    -3. Disconnect the following connector.

    PCM connector A (51P)

    -4. Turn the vehicle to the ON mode.

    -5. Clear the DTC with the HDS.

    -6. Turn the vehicle to the OFF (LOCK) mode.

    -7. Turn the vehicle to the ON mode, and wait 6 seconds.

    -8. Check for DTCs with the HDS.

    DTC Description DTC
    U0047-00 CAN Gateway F-CAN ch B Bus Off

    Is DTC U0047-00 indicated?

    YES

    Go to step 3.

    NO

    Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC U0047-00 goes away and the PCM was updated, troubleshooting is complete. If DTC U0047-00 goes away and the PCM was substituted, replace the original PCM .

  3. Shorted unit check (keyless access control unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Keyless access control unit connector C (24P)

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0047-00 CAN Gateway F-CAN ch B Bus Off

    Is DTC U0047-00 indicated?

    YES (with ACC)

    Go to step 4.

    YES (without ACC)

    Go to step 5.

    NO

    Substitute a known-good keyless access control unit , then recheck. If DTC U0047-00 goes away and the keyless access control unit was substituted, replace the original keyless access control unit .

  4. Shorted unit check (ACC unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    ACC unit 20P connector

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0047-00 CAN Gateway F-CAN ch B Bus Off

    Is DTC U0047-00 indicated?

    YES

    Go to step 5.

    NO

    Update the ACC unit if it does not have the latest software, or substitute a known-good ACC unit , then recheck. If DTC U0047-00 goes away and the ACC unit was updated, troubleshooting is complete. If DTC U0047-00 goes away and the ACC unit was substituted, replace the original ACC unit .

  5. Shorted unit check (electric parking brake control unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Electric parking brake control unit 30P connector

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0047-00 CAN Gateway F-CAN ch B Bus Off

    Is DTC U0047-00 indicated?

    YES

    Go to step 6.

    NO

    Update the electric parking brake control unit if it does not have the latest software, or substitute a known-good electric parking brake control unit , then recheck. If DTC U0047-00 goes away and the electric parking brake control unit was updated, troubleshooting is complete. If DTC U0047-00 goes away and the electric parking brake control unit was substituted, replace the original electric parking brake control unit .

  6. Shorted unit check (ANC/active sound control unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    ANC/active sound control unit 20P connector

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0047-00 CAN Gateway F-CAN ch B Bus Off

    Is DTC U0047-00 indicated?

    YES

    Go to step 7.

    NO

    Substitute a known-good ANC/active sound control unit , then recheck. If DTC U0047-00 goes away and the ANC/active sound control unit was substituted, replace the original ANC/active sound control unit .

  7. Shorted unit check (VSA modulator-control unit)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    VSA modulator-control unit 38P connector

    -3. Turn the vehicle to the ON mode.

    -4. Clear the DTC with the HDS.

    -5. Turn the vehicle to the OFF (LOCK) mode.

    -6. Turn the vehicle to the ON mode, and wait 6 seconds.

    -7. Check for DTCs with the HDS.

    DTC Description DTC
    U0047-00 CAN Gateway F-CAN ch B Bus Off

    Is DTC U0047-00 indicated?

    YES

    Go to step 8.

    NO

    Update the VSA modulator-control unit if it does not have the latest software, then recheck. If DTC U0047-00 goes away and the VSA modulator-control unit was updated, troubleshooting is complete. If DTC U0047-00 was indicated after the VSA modulator-control unit updated, replace the original VSA modulator-control unit .

  8. Shorted wire check (F-CAN B_H line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    CAN gateway 24P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PCM connector A (51P): disconnected
      Keyless access control unit connector C (24P): disconnected
      ACC unit 20P connector (with ACC): disconnected
      Electric parking brake control unit 30P connector: disconnected
      ANC/active sound control unit 20P connector: disconnected
      VSA modulator-control unit 38P connector: disconnected
      CAN gateway 24P connector: disconnected
    Test circuit F-CAN B_H
    Test point 1 CAN gateway 24P connector No. 11 (LT BLU)
    Test point 2 Body ground
    GHH342748Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the F-CAN B_H wire between the CAN gateway and the connected units.

    NO

    The F-CAN B_H wire is not short to ground. Go to step 9.

  9. Shorted wire check (F-CAN B_L line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PCM connector A (51P): disconnected
      Keyless access control unit connector C (24P): disconnected
      ACC unit 20P connector (with ACC): disconnected
      Electric parking brake control unit 30P connector: disconnected
      ANC/active sound control unit 20P connector: disconnected
      VSA modulator-control unit 38P connector: disconnected
      CAN gateway 24P connector: disconnected
    Test circuit F-CAN B_L
    Test point 1 CAN gateway 24P connector No. 10 (GRY)
    Test point 2 Body ground
    GHH342749Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the F-CAN B_L wire between the CAN gateway and the connected units.

    NO

    The F-CAN B_L wire is not short to ground. Go to step 10.

  10. Shorted wire check (F-CAN B_H line to F-CAN B_L line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PCM connector A (51P): disconnected
      Keyless access control unit connector C (24P): disconnected
      ACC unit 20P connector (with ACC): disconnected
      Electric parking brake control unit 30P connector: disconnected
      ANC/active sound control unit 20P connector: disconnected
      VSA modulator-control unit 38P connector: disconnected
      CAN gateway 24P connector: disconnected
    Test circuit F-CAN B_H, F-CAN B_L
    Test point 1 CAN gateway 24P connector No. 11 (LT BLU)
    Test point 2 CAN gateway 24P connector No. 10 (GRY)

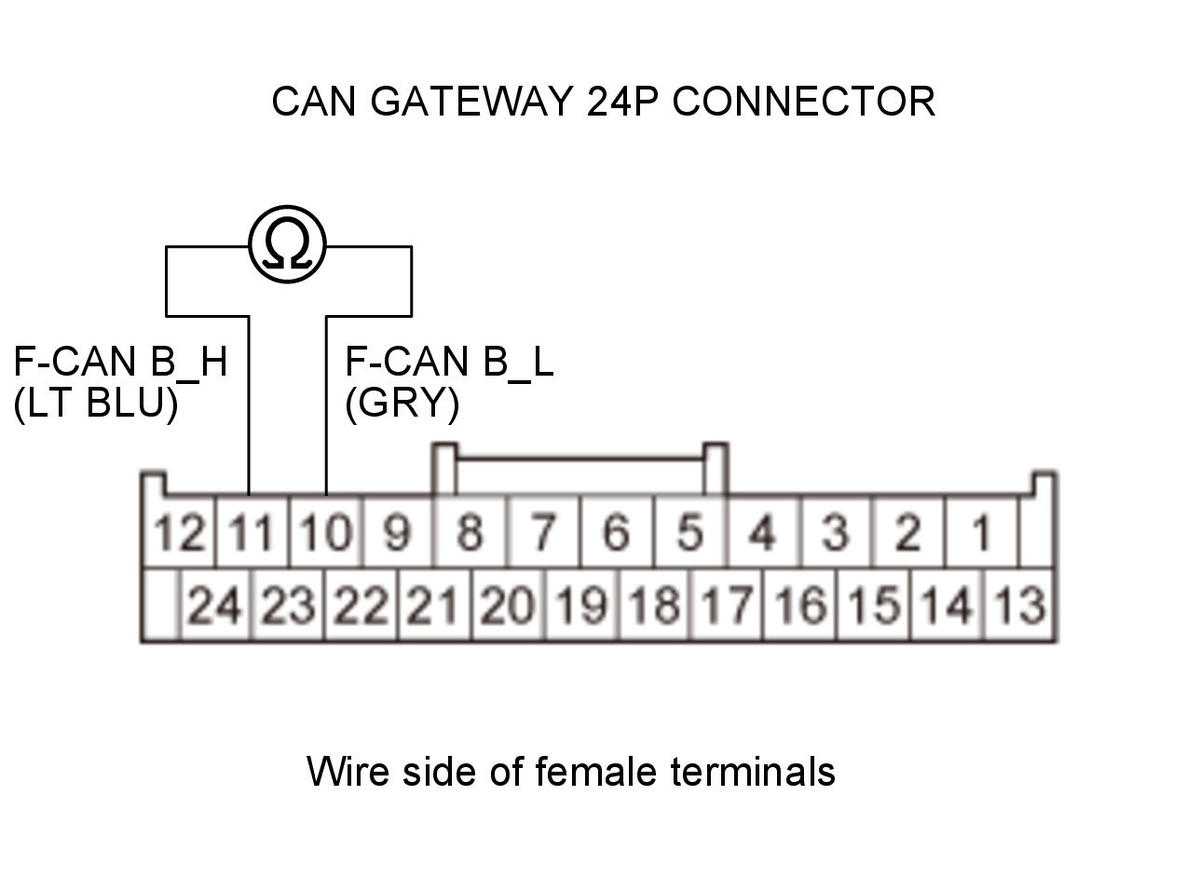

    GHH342750Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the F-CAN B_H wire to the F-CAN B_L wire between CAN gateway terminals No. 10 and No. 11.

    NO

    Update the CAN gateway if it does not have the latest software, or substitute a known-good CAN gateway , then recheck. If DTC U0047-00 goes away and the CAN gateway was updated, troubleshooting is complete. If DTC U0047-00 goes away and the CAN gateway was substituted, replace the original CAN gateway .
