DTC U0029-00 (CAN Gateway) (2014 2015)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Acura RLX, 2019 Acura RLX, 2018 Acura RLX, 2017 Acura RLX, and 2016 Acura RLX. However, it is still accessible from the selected car via links, so may be relevant.

DTC U0029-00 : CAN Gateway F-CAN ch A Bus Off

NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information .

DTC Description	DTC
U0029-00 CAN Gateway F-CAN ch A Bus Off

DTC (CAN gateway)

Problem verification

-1. Turn the vehicle to the ON mode.

-2. Clear the DTC with the HDS.

-3. Turn the vehicle to the OFF (LOCK) mode.

-4. Turn the vehicle to the ON mode, and wait 6 seconds.

-5. Check for DTCs with the HDS.

DTC Description	DTC
U0029-00 CAN Gateway F-CAN ch A Bus Off

Is DTC U0029-00 indicated?

YES

Go to step 2.

Intermittent failure, the system is OK at this time.

Shorted unit check (PCM)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Jump the SCS line with the HDS.

-3. Disconnect the following connector.

PCM connector A (51P)

-4. Turn the vehicle to the ON mode.

-5. Clear the DTC with the HDS.

-6. Turn the vehicle to the OFF (LOCK) mode.

-7. Turn the vehicle to the ON mode, and wait 6 seconds.

-8. Check for DTCs with the HDS.

DTC Description	DTC
U0029-00 CAN Gateway F-CAN ch A Bus Off

Is DTC U0029-00 indicated?

YES

Go to step 3.

Update the PCM if it does not have the latest software, or substitute a known-good PCM , then recheck. If DTC U0029-00 goes away and the PCM was updated, troubleshooting is complete. If DTC U0029-00 goes away and the PCM was substituted, replace the original PCM .

Shorted unit check (engine mount control unit)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Disconnect the following connector.

Engine mount control unit 16P connector

-3. Turn the vehicle to the ON mode.

-4. Clear the DTC with the HDS.

-5. Turn the vehicle to the OFF (LOCK) mode.

-6. Turn the vehicle to the ON mode, and wait 6 seconds.

-7. Check for DTCs with the HDS.

DTC Description	DTC
U0029-00 CAN Gateway F-CAN ch A Bus Off

Is DTC U0029-00 indicated?

YES (with ACC)

Go to step 4.

YES (without ACC)

Go to step 5.

Substitute a known-good engine mount control unit , then recheck. If DTC U0029-00 goes away and the engine mount control unit was substituted, replace the original engine mount control unit .

Shorted unit check (E-pretensioner unit)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Do the battery terminal disconnection procedure , then wait at least 3 minutes.

-3. Disconnect the following connectors.

E-pretensioner unit connector A (16P)

E-pretensioner unit connector B (14P)

-4. Do the battery terminal reconnection procedure .

-5. Turn the vehicle to the ON mode.

-6. Clear the DTC with the HDS.

-7. Turn the vehicle to the OFF (LOCK) mode.

-8. Turn the vehicle to the ON mode, and wait 6 seconds.

-9. Check for DTCs with the HDS.

DTC Description	DTC
U0029-00 CAN Gateway F-CAN ch A Bus Off

Is DTC U0029-00 indicated?

YES

Go to step 5.

Update the E-pretensioner unit if it does not have the latest software, or substitute a known-good E-pretensioner unit , then recheck. If DTC U0029-00 goes away and the E-pretensioner unit was updated, troubleshooting is complete. If DTC U0029-00 goes away and the E-pretensioner unit was substituted, replace the original E-pretensioner unit .

Shorted unit check (gauge control module)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Disconnect the following connector.

Gauge control module connector A (32P)

-3. Turn the vehicle to the ON mode.

-4. Clear the DTC with the HDS.

-5. Turn the vehicle to the OFF (LOCK) mode.

-6. Turn the vehicle to the ON mode, and wait 6 seconds.

-7. Check for DTCs with the HDS.

DTC Description	DTC
U0029-00 CAN Gateway F-CAN ch A Bus Off

Is DTC U0029-00 indicated?

YES

Go to step 6.

Substitute a known-good gauge control module , then recheck. If DTC U0029-00 goes away and the gauge control module was substituted, replace the original gauge control module .

Shorted unit check (SRS unit)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Do the battery terminal disconnection procedure , then wait at least 3 minutes.

-3. Disconnect the following connector.

SRS unit connector A (39P)

-4. Do the battery terminal reconnection procedure .

-5. Turn the vehicle to the ON mode.

-6. Clear the DTC with the HDS.

-7. Turn the vehicle to the OFF (LOCK) mode.

-8. Turn the vehicle to the ON mode, and wait 6 seconds.

-9. Check for DTCs with the HDS.

DTC Description	DTC
U0029-00 CAN Gateway F-CAN ch A Bus Off

Is DTC U0029-00 indicated?

YES

Go to step 7.

Update the SRS unit if it does not have the latest software, or substitute a known-good SRS unit , then recheck. If DTC U0029-00 goes away and the SRS unit was updated, troubleshooting is complete. If DTC U0029-00 goes away and the SRS unit was substituted, replace the original SRS unit .

Shorted wire check (F-CAN A_H line)

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Disconnect the following connector.

CAN gateway 24P connector

-3. Check for continuity between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	PCM connector A (51P): disconnected
	Engine mount control unit 16P connector: disconnected
	E-pretensioner unit connector A (16P) (with ACC): disconnected
	E-pretensioner unit connector B (14P) (with ACC): disconnected
	Gauge control module connector A (32P): disconnected
	SRS unit connector A (39P): disconnected
	CAN gateway 24P connector: disconnected
Test circuit	F-CAN A_H
Test point 1	CAN gateway 24P connector No. 14 (BLU)
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

Repair a short in the F-CAN A_H wire between the CAN gateway and the connected units.

The F-CAN A_H wire is not short to ground. Go to step 8.

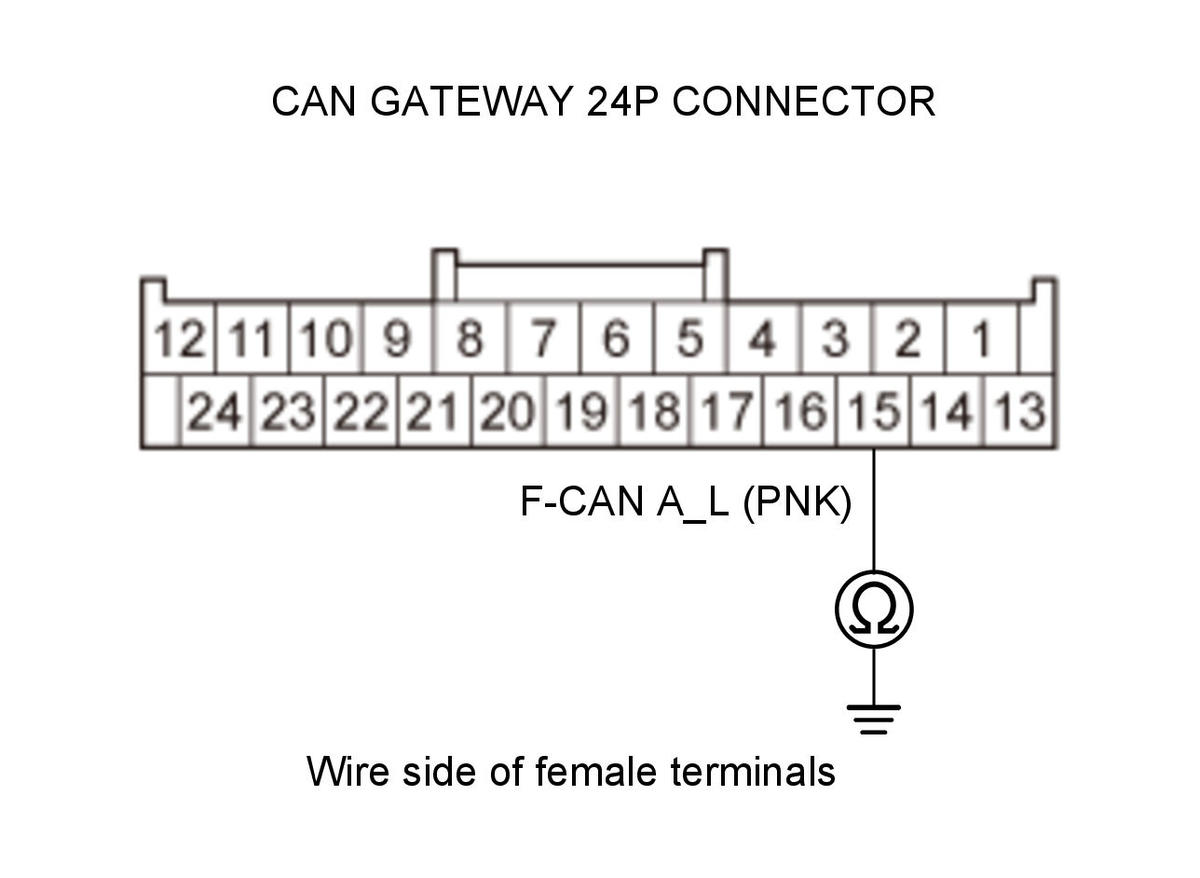

Shorted wire check (F-CAN A_L line)

-1. Check for continuity between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	PCM connector A (51P): disconnected
	Engine mount control unit 16P connector: disconnected
	E-pretensioner unit connector A (16P) (with ACC): disconnected
	E-pretensioner unit connector B (14P) (with ACC): disconnected
	Gauge control module connector A (32P): disconnected
	SRS unit connector A (39P): disconnected
	CAN gateway 24P connector: disconnected
Test circuit	F-CAN A_L
Test point 1	CAN gateway 24P connector No. 15 (PNK)
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

Repair a short in the F-CAN A_L wire between the CAN gateway and the connected units.

The F-CAN A_L wire is not short to ground. Go to step 9.

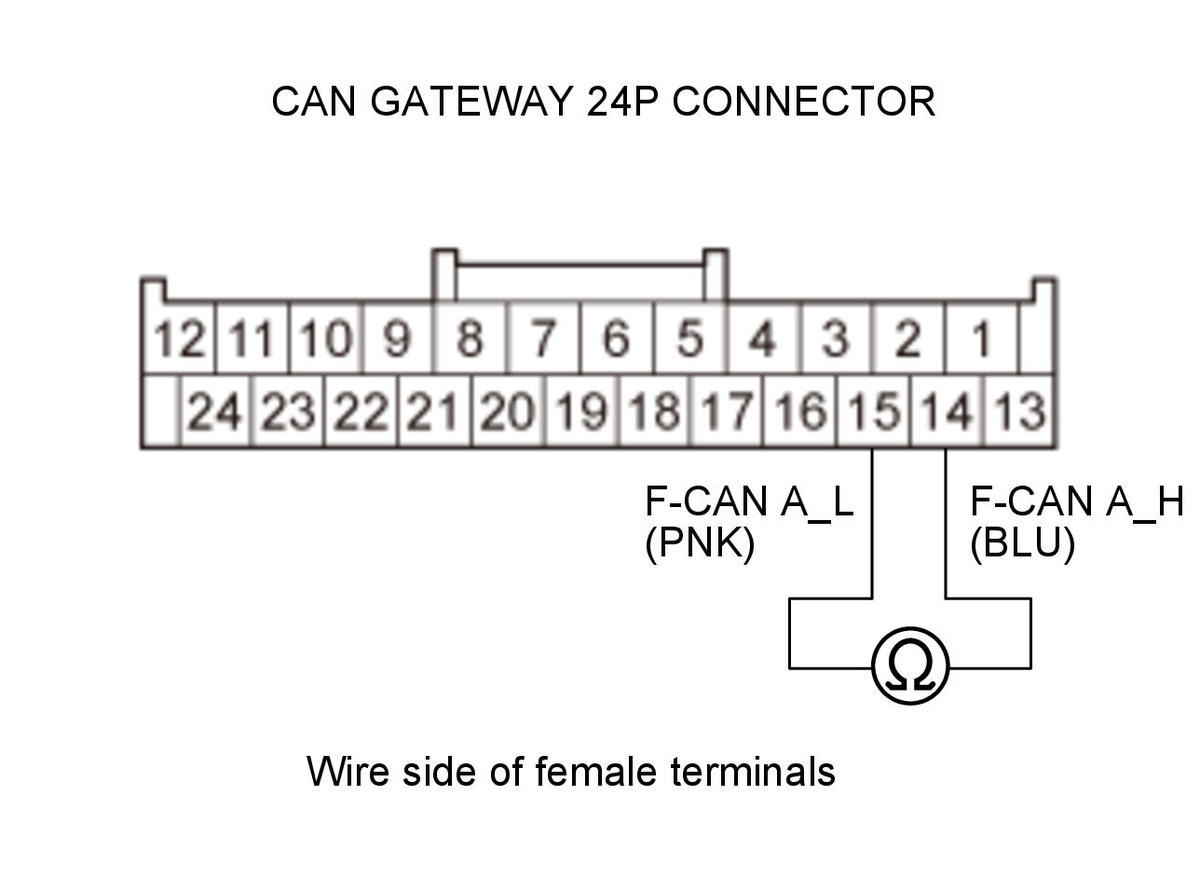

Shorted wire check (F-CAN A_H line to F-CAN A_L line)

-1. Check for continuity between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	PCM connector A (51P): disconnected
	Engine mount control unit 16P connector: disconnected
	E-pretensioner unit connector A (16P) (with ACC): disconnected
	E-pretensioner unit connector B (14P) (with ACC): disconnected
	Gauge control module connector A (32P): disconnected
	SRS unit connector A (39P): disconnected
	CAN gateway 24P connector: disconnected
Test circuit	F-CAN A_H, F-CAN A_L
Test point 1	CAN gateway 24P connector No. 14 (BLU)
Test point 2	CAN gateway 24P connector No. 15 (PNK)

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

Repair a short in the F-CAN A_H wire to the F-CAN A_L wire between CAN gateway terminals No. 14 and No. 15.

Update the CAN gateway if it does not have the latest software, or substitute a known-good CAN gateway , then recheck. If DTC U0029-00 goes away and the CAN gateway was updated, troubleshooting is complete. If DTC U0029-00 goes away and the CAN gateway was substituted, replace the original CAN gateway .
