Multipurpose Camera Unit Connector for Inputs and Outputs (2018 2019 2020)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Acura RLX, 2019 Acura RLX, 2018 Acura RLX, 2017 Acura RLX, and 2016 Acura RLX. However, it is still accessible from the selected car via links, so may be relevant.

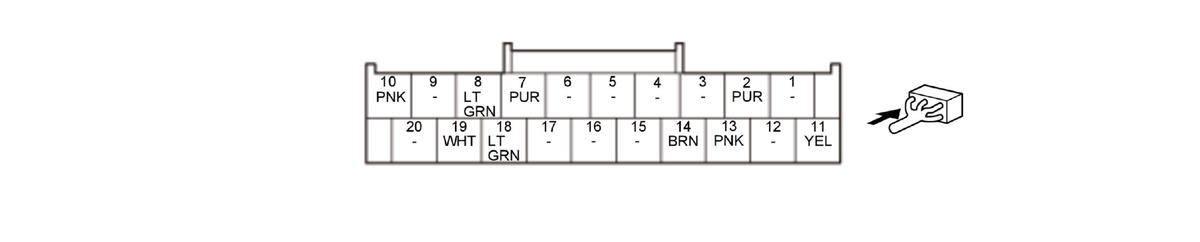

Multipurpose Camera Unit 20P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	Not used	Not used	---
2	F-CAN C_H	F-CAN C communication (high) circuit	---
3	Not used	Not used	---
4	Not used	Not used	---
5	Not used	Not used	---
6	Not used	Not used	---
7	ACC CAN-H	ACC CAN communication (high) circuit	---
8	LDW OFF SW	Detects RDM switch signal	---
9	Not used	Not used	---
10	+B BACK UP	Power supply for backup memory	Battery voltage at all time
11	LDW OFF IND	Drive RDM switch circuit	---
12	Not used	Not used	---
13	F-CAN C_L	F-CAN C communication (low) circuit	---
14	GND	Ground circuit for the multipurpose camera unit	Less than 0.2 V at all times
15	Not used	Not used	---
16	Not used	Not used	---
17	Not used	Not used	---
18	ACC CAN-L	ACC CAN communication (low) circuit	---
19	IG1 DR2	Power source for the multipurpose camera unit	With vehicle in ON mode: Battery voltage With vehicle in OFF mode: About 0 V
20	Not used	Not used	---
