Multipurpose Camera Unit Connector for Inputs and Outputs (2016 2017)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Acura RLX, 2019 Acura RLX, 2018 Acura RLX, 2017 Acura RLX, and 2016 Acura RLX. However, it is still accessible from the selected car via links, so may be relevant.

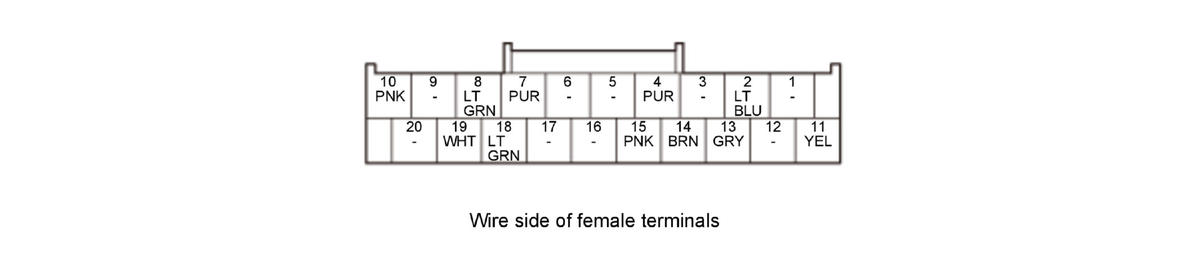

Multipurpose Camera Unit 20P Connector Inputs and Outputs
| Terminal number | Terminal name | Description | Signal |
| 1 | Not used | Not used | --- |
| 2 | F-CAN B_H | F-CAN B communication (high) circuit | --- |
| 3 | Not used | Not used | --- |
| 4 | F-CAN C_H | F-CAN C communication (high) circuit | --- |
| 5 | Not used | Not used | --- |
| 6 | Not used | Not used | --- |
| 7 | ACC CAN-H | ACC CAN communication (high) circuit | --- |
| 8 | LDW OFF SW | Detects RDM OFF switch signal |
|
| 9 | Not used | Not used | --- |
| 10 | +B BACK UP | Power supply for backup memory | Battery voltage at all time |
| 11 | LDW OFF IND | Drive RDM OFF switch circuit | RDM OFF switch pressed: About 0 V |
| 12 | Not used | Not used | --- |
| 13 | F-CAN B_L | F-CAN B communication (low) circuit | --- |
| 14 | GND | Ground circuit for the multipurpose camera unit | Less than 0.2 V at all times |
| 15 | F-CAN C_L | F-CAN C communication (low) circuit | --- |
| 16 | Not used | Not used | --- |
| 17 | Not used | Not used | --- |
| 18 | ACC CAN-L | ACC CAN communication (low) circuit | --- |
| 19 | IG1 DR2 | Power source for the multipurpose camera unit |
|
| 20 | Not used | Not used | --- |
