DTC B2860-13

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2020 Acura RLX, 2019 Acura RLX, 2018 Acura RLX, 2017 Acura RLX, and 2016 Acura RLX. However, it is still accessible from the selected car via links, so may be relevant.

DTC B2860-13 : Front Passenger's E-Pretensioner Spool Sensor Power or Signal Circuit Open

NOTE:

Before doing this troubleshooting procedure, review General Troubleshooting Information .
Before replacing the E-pretensioner unit, check the E-pretensioner unit software version with the HDS. If the software version is not the latest, update the E-pretensioner unit software , and retest.

DTC Description	DTC
B2860-13 Front Passenger's E-Pretensioner Spool Sensor Power or Signal Circuit Open

DTC (E-pretensioner)

Problem verification

-1. Clear the DTCs with the HDS.

-2. Turn the vehicle to the ON mode.

-3. Check for DTCs with the HDS.

DTC Description	DTC
B2860-13 Front Passenger's E-Pretensioner Spool Sensor Power or Signal Circuit Open

Is DTC B2860-13 indicated?

YES

The failure is duplicated. Go to step 2.

Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting.

Spool sensor input voltage check

-1. Check the parameter (s) below with the HDS.

Signal	Current conditions
Signal	Values	Unit
Front Passenger's Spool Sensor A Input Voltage
Front Passenger's Spool Sensor B Input Voltage

Are spool sensors A and B indicated 0 V?

YES

Go to step 3.

NO (Only spool sensor A is indicated)

Go to step 5.

NO (Only spool sensor B is indicated)

Go to step 7.

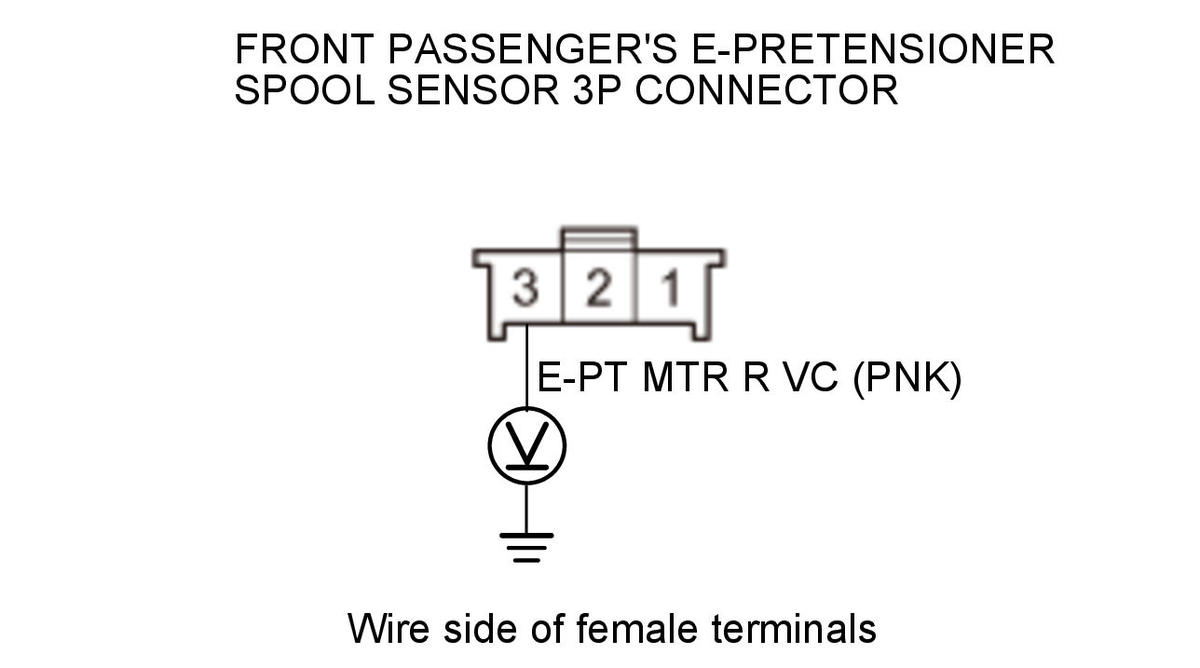

Open wire check (E-PT MTR R VC line) 1

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Disconnect the following connector.

Front passenger's E-pretensioner spool sensor 3P connector

-3. Turn the vehicle to the ON mode.

-4. Measure the voltage between test points 1 and 2.

Test condition	Vehicle ON mode
Test condition	Front passenger's E-pretensioner spool sensor 3P connector: disconnected
Test circuit	E-PT MTR R VC
Test point 1	Front passenger's E-pretensioner spool sensor 3P connector No. 3 (PNK)
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there battery voltage?

YES

Faulty front passenger's E-pretensioner spool sensor; replace the front passenger's seat belt .

Go to step 4.

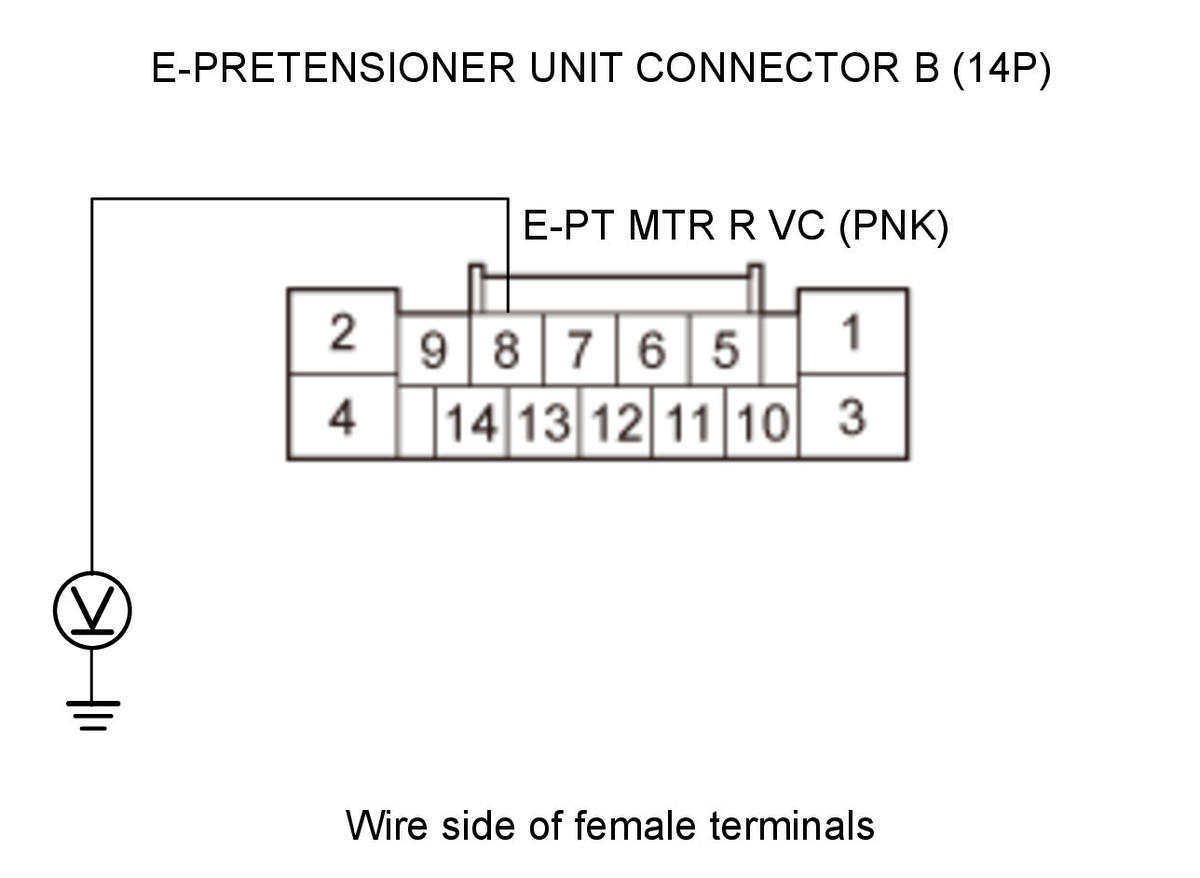

Open wire check (E-PT MTR R VC line) 2

-1. Measure the voltage between test points 1 and 2 without disconnecting the E-pretensioner unit connector B (14P).

Test condition	Vehicle ON mode
Test condition	Front passenger's E-pretensioner spool sensor 3P connector: disconnected
Test circuit	E-PT MTR R VC
Test point 1	E-pretensioner unit connector B (14P) No. 8 (PNK)
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

Is there battery voltage?

YES

Repair an open in the wire between the E-pretensioner unit connector B (14P) of the E-pretensioner unit and the front passenger's E-pretensioner spool sensor.

The E-PT MTR R VC wire is OK. Replace the E-pretensioner unit .

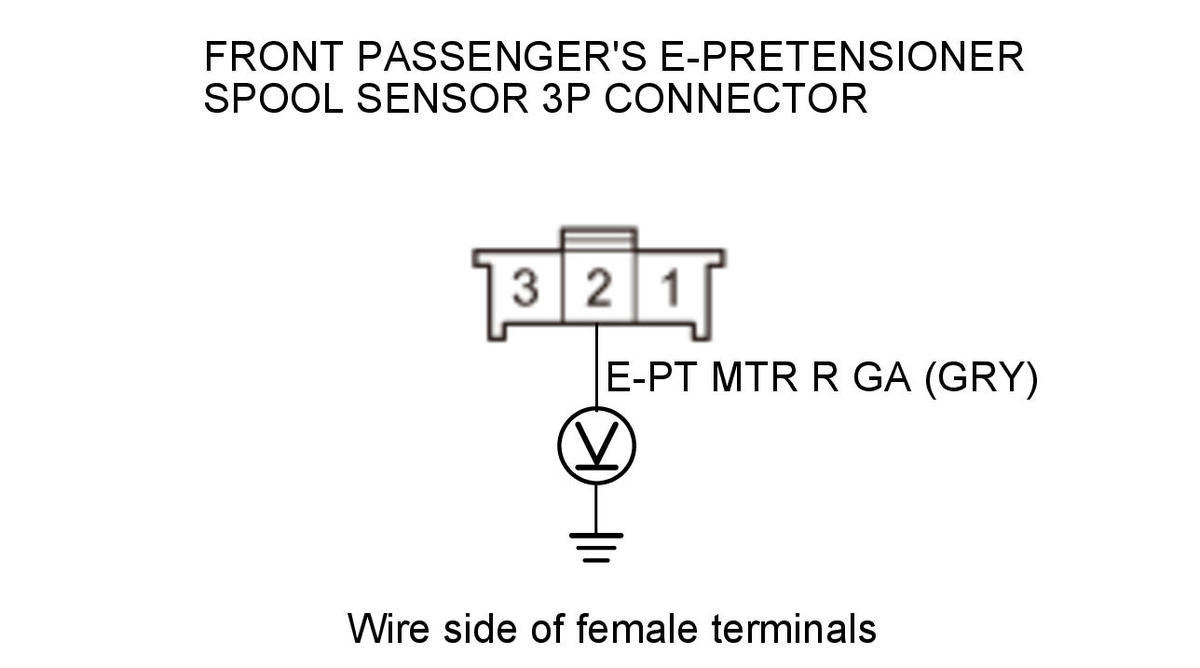

Open wire check (E-PT MTR R GA line) 1

-1. Measure the voltage between test points 1 and 2 without disconnecting the front passenger's E-pretensioner spool sensor 3P connector.

Test condition	Vehicle ON mode
Test circuit	E-PT MTR R GA
Test point 1	Front passenger's E-pretensioner spool sensor 3P connector No. 2 (GRY)
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

When slowly pulling out the seat belt, does the voltage change from 0 V?

YES

Go to step 6.

Faulty front passenger's E-pretensioner spool sensor; replace the front passenger's seat belt .

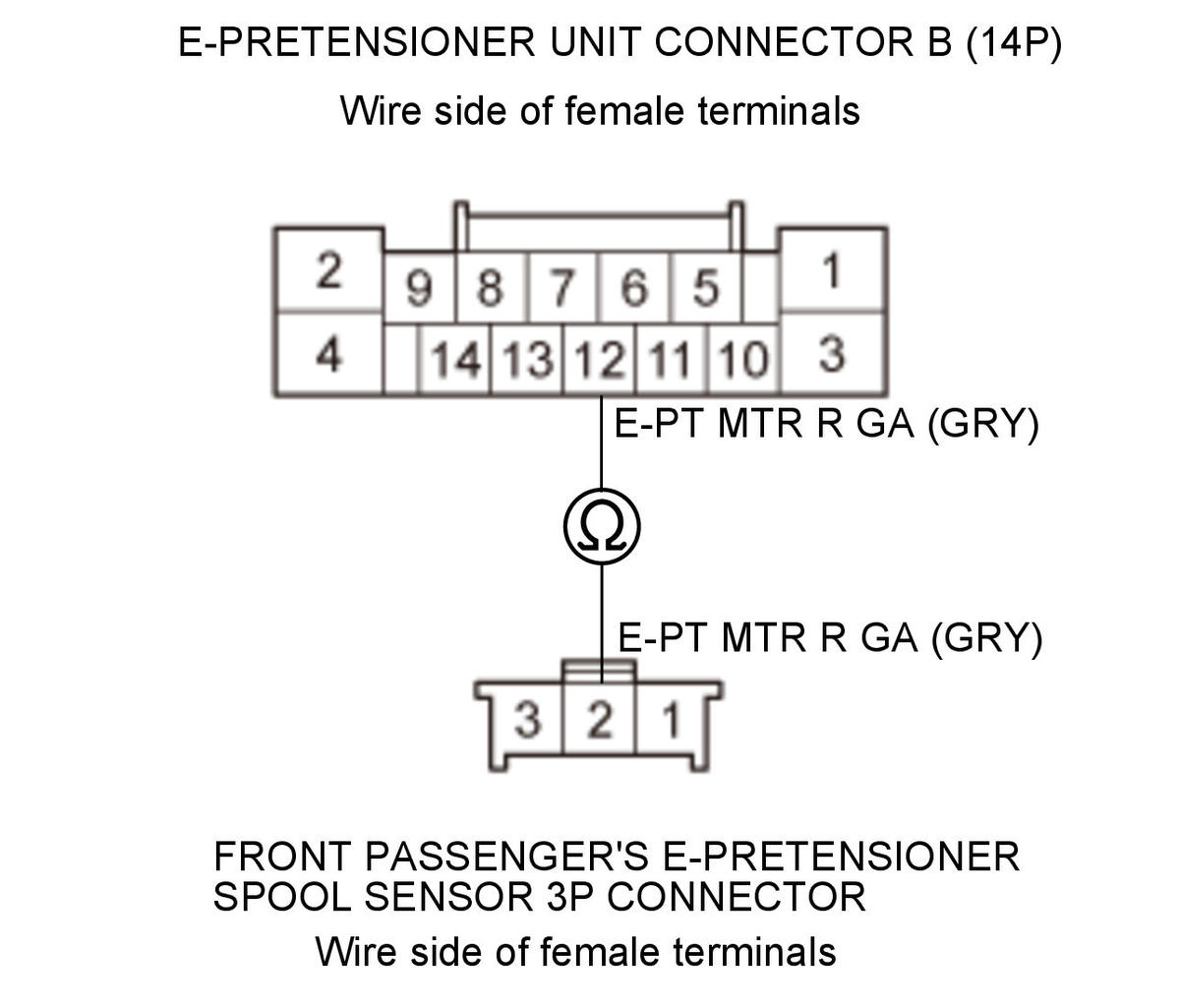

Open wire check (E-PT MTR R GA line) 2

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Disconnect the following connectors.

E-pretensioner unit connector B (14P)

Front passenger's E-pretensioner spool sensor 3P connector

-3. Check for continuity between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	E-pretensioner unit connector B (14P): disconnected
	Front passenger's E-pretensioner spool sensor 3P connector: disconnected
Test circuit	E-PT MTR R GA
Test point 1	E-pretensioner unit connector B (14P) No. 12 (GRY)
Test point 2	Front passenger's E-pretensioner spool sensor 3P connector No. 2 (GRY)

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The E-PT MTR R GA wire is OK. Replace the E-pretensioner unit .

Repair an open in the wire between the E-pretensioner unit connector B (14P) of the E-pretensioner unit and the front passenger's E-pretensioner spool sensor.

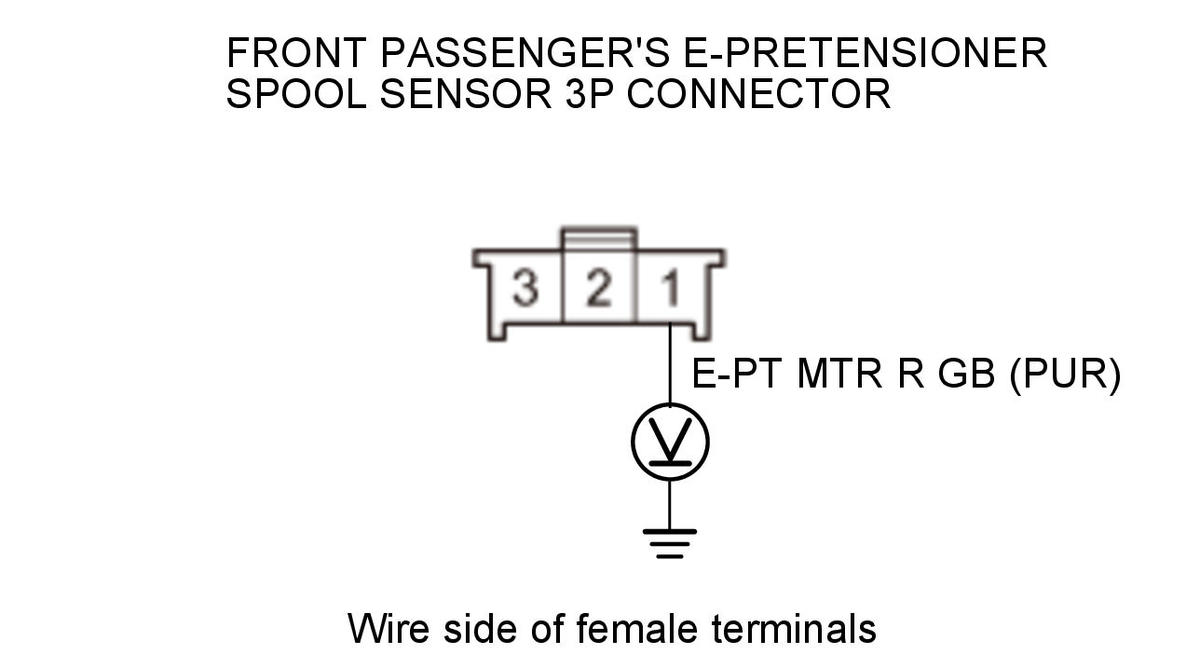

Open wire check (E-PT MTR R GB line) 1

-1. Measure the voltage between test points 1 and 2 without disconnecting the front passenger's E-pretensioner spool sensor 3P connector.

Test condition	Vehicle ON mode
Test circuit	E-PT MTR R GB
Test point 1	Front passenger's E-pretensioner spool sensor 3P connector No. 1 (PUR)
Test point 2	Body ground

Courtesy of HONDA, U.S.A., INC.

When slowly pulling out the seat belt, does the voltage change from 0 V?

YES

Go to step 8.

Faulty front passenger's E-pretensioner spool sensor; replace the front passenger's seat belt .

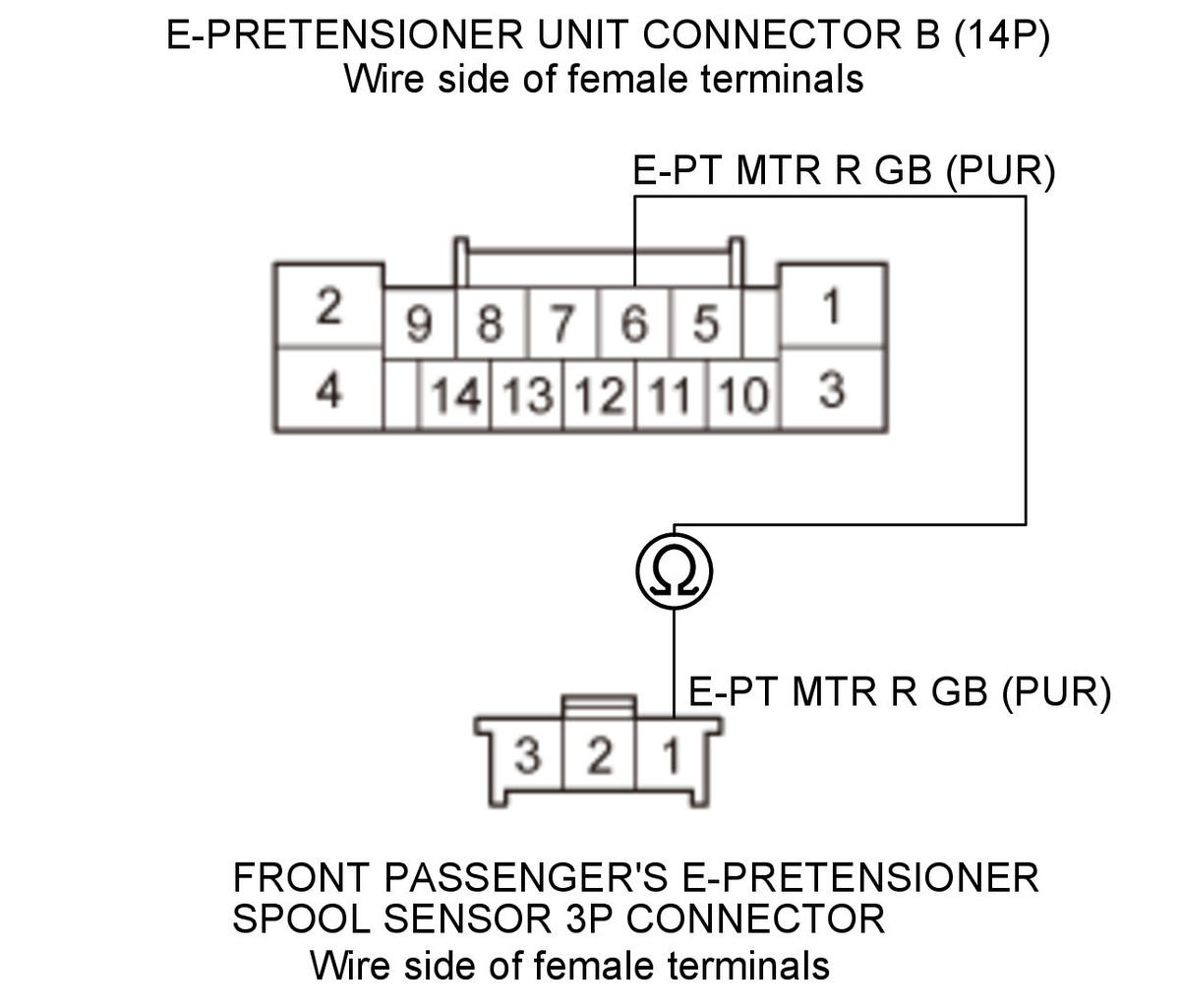

Open wire check (E-PT MTR R GB line) 2

-1. Turn the vehicle to the OFF (LOCK) mode.

-2. Disconnect the following connectors.

E-pretensioner unit connector B (14P)

Front passenger's E-pretensioner spool sensor 3P connector

-3. Check for continuity between test points 1 and 2.

Test condition	Vehicle OFF (LOCK) mode
	E-pretensioner unit connector B (14P): disconnected
	Front passenger's E-pretensioner spool sensor 3P connector: disconnected
Test circuit	E-PT MTR R GB
Test point 1	E-pretensioner unit connector B (14P) No. 6 (PUR)
Test point 2	Front passenger's E-pretensioner spool sensor 3P connector No. 1 (PUR)

Courtesy of HONDA, U.S.A., INC.

Is there continuity?

YES

The E-PT MTR R GB wire is OK. Replace the E-pretensioner unit .

Repair an open in the wire between the E-pretensioner unit connector B (14P) of the E-pretensioner unit and the front passenger's E-pretensioner spool sensor.
