Audio Remote-HFL Switch Connector for Inputs and Outputs

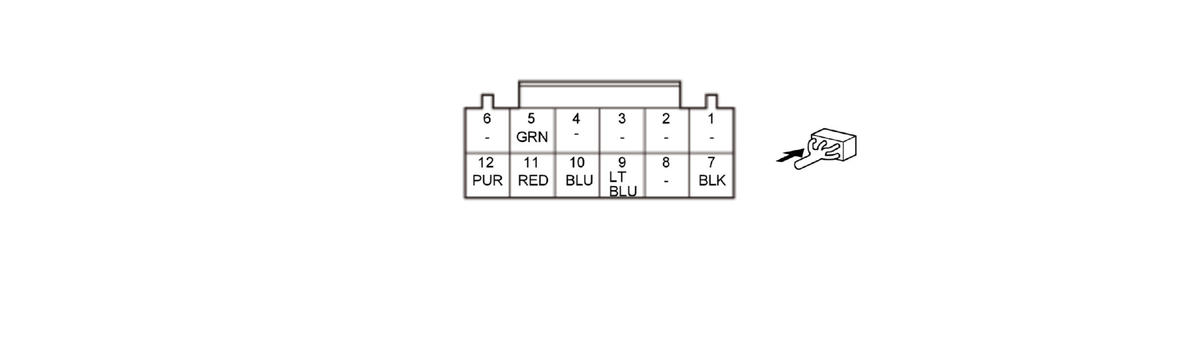

Audio Remote-HFL Switch 12P Connector (female terminals)
| Cavity | Terminal Name | Description |
|---|---|---|
| 1 | Not used | --- |
| 2 | Not used | --- |
| 3 | Not used | --- |
| 4 | Not used | --- |
| 5 | ILLUMI+ | Outputs illumination signal |
| 6 | Not used | --- |
| 7 | STRG GND | Ground for audio remote-HFL switch (G403) |
| 8 | Not used | --- |
| 9 | ILLUMI-(LED) | Outputs illumination control signal |
| 10 | STRG SW LIN | Communication signal |
| 11 | ILLUMI+ | Outputs illumination signal |
| 12 | +B | +B power source |
