Connector End View C701 - REAR DOOR WINDOW CONTROL SWITCH LH
WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C701
Description
REAR DOOR WINDOW CONTROL SWITCH LH
Color
Harness
14633
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RPW07 (GY-RD) | 22 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN | |
| 1 | RPW07 (GY-RD) | 26 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN | |
| 1 | RPW07 (OG) | 26 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN | |
| 2 | CPW22 (GN) | 26 | SWITCH - POWER WINDOW REAR LEFT # UP | |
| 3 | CPW21 (BN) | 26 | SWITCH - POWER WINDOW REAR LEFT # DOWN | |
| 4 | CPW58 (YE) | 26 | SWITCH - POWER WINDOW REAR (BACKLIGHT) # DOWN OR LEFT | |
| 5 | * | * | Not Used | |
| 6 | RPW07 (GY) | 22 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN | |
| 6 | RPW07 (GY) | 26 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN |

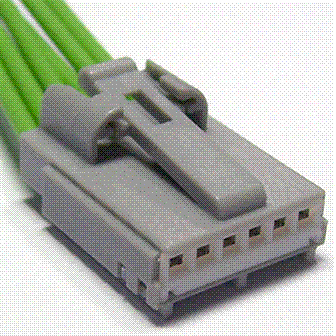

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1028 |
Service Part Number: 9U2Z-14S411-APA Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Switch - Power Window - LH - Rear Switch - Power Window - Passenger (Front) Switch - Power Window - RH - Rear |
