Rear Parking Aid Sensor: Removal
WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.
Remove the rear bumper cover. REFER to: Rear Bumper Cover .

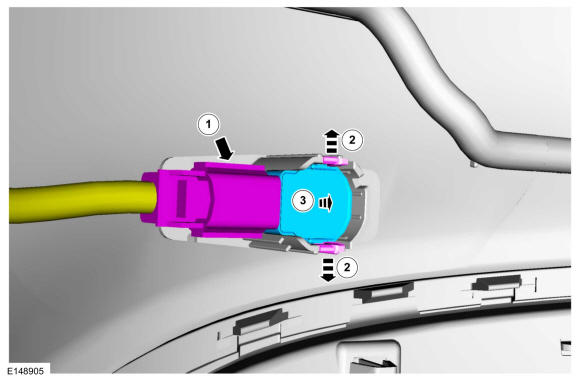

- 3.NOTE: RH outer parking aid sensor shown in illustration, all others similar.
Remove the rear parking aid sensor.
- 1.
Disconnect the rear parking aid sensor electrical connector.
- 2.
Release the tabs.
- 3.
Remove the rear parking aid sensor from the bracket.
- 1.
