Audio System/Navigation - With Touchscreen/Without SONY
WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

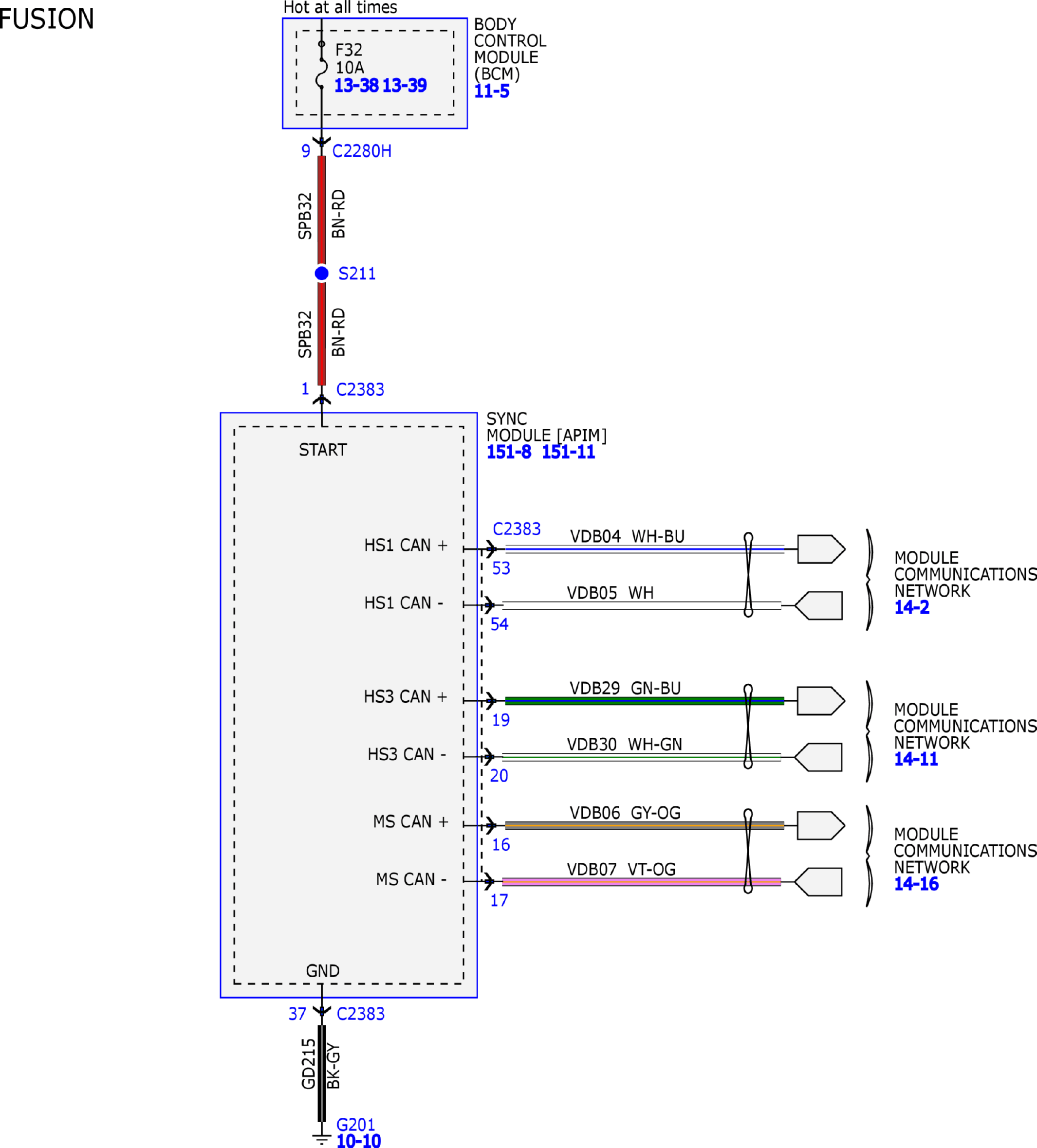

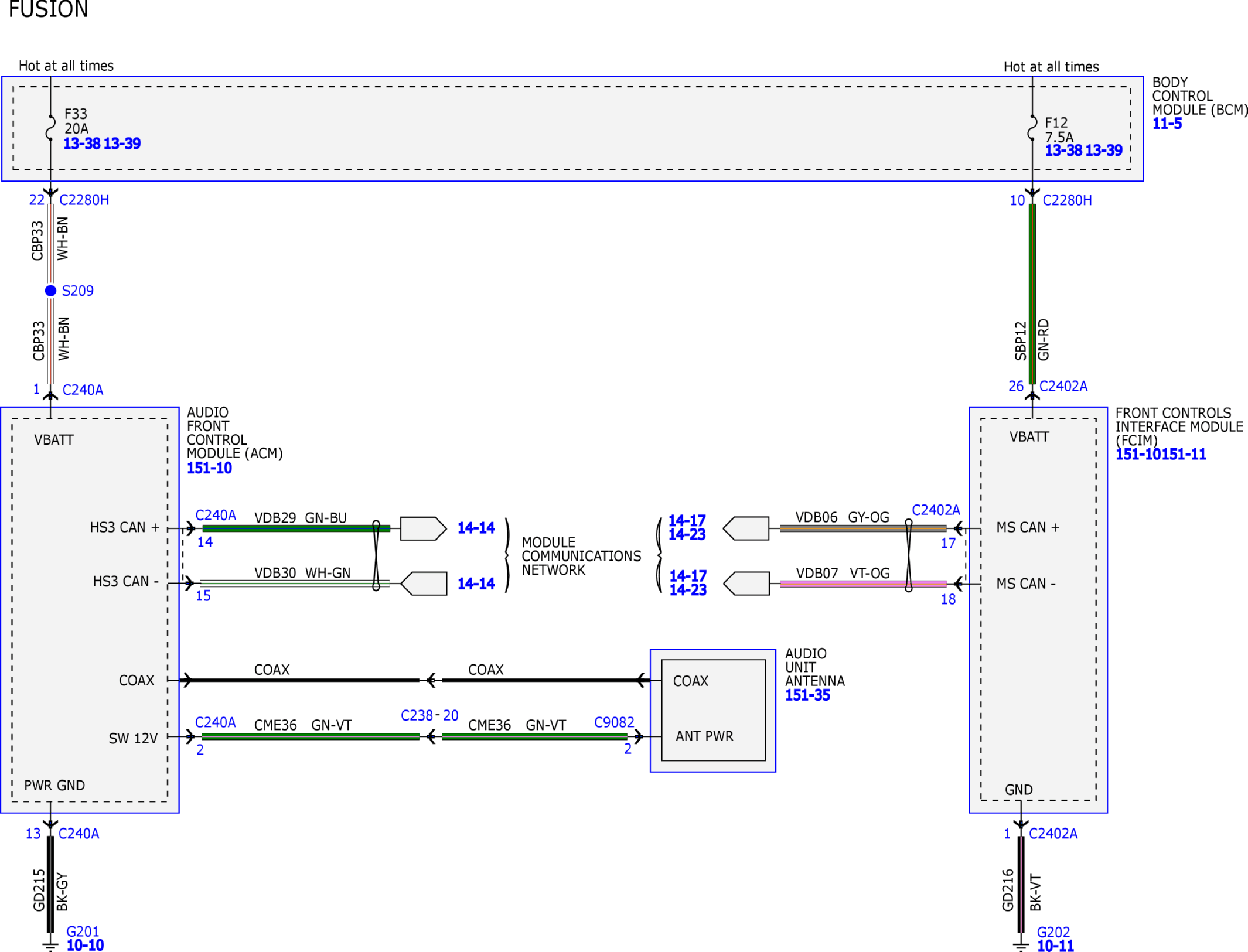

Fig 1: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (1 of 10)
Courtesy of FORD MOTOR COMPANY

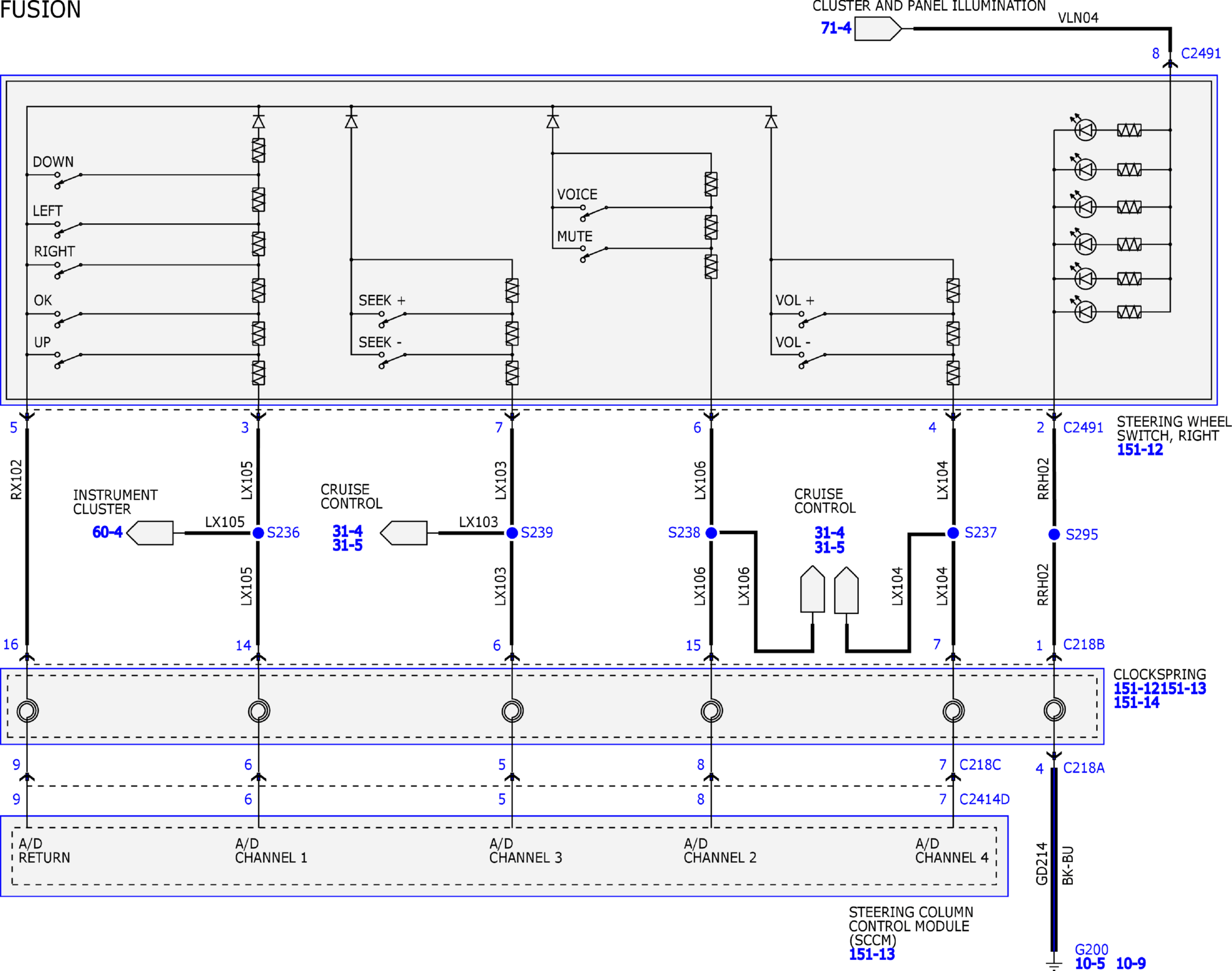

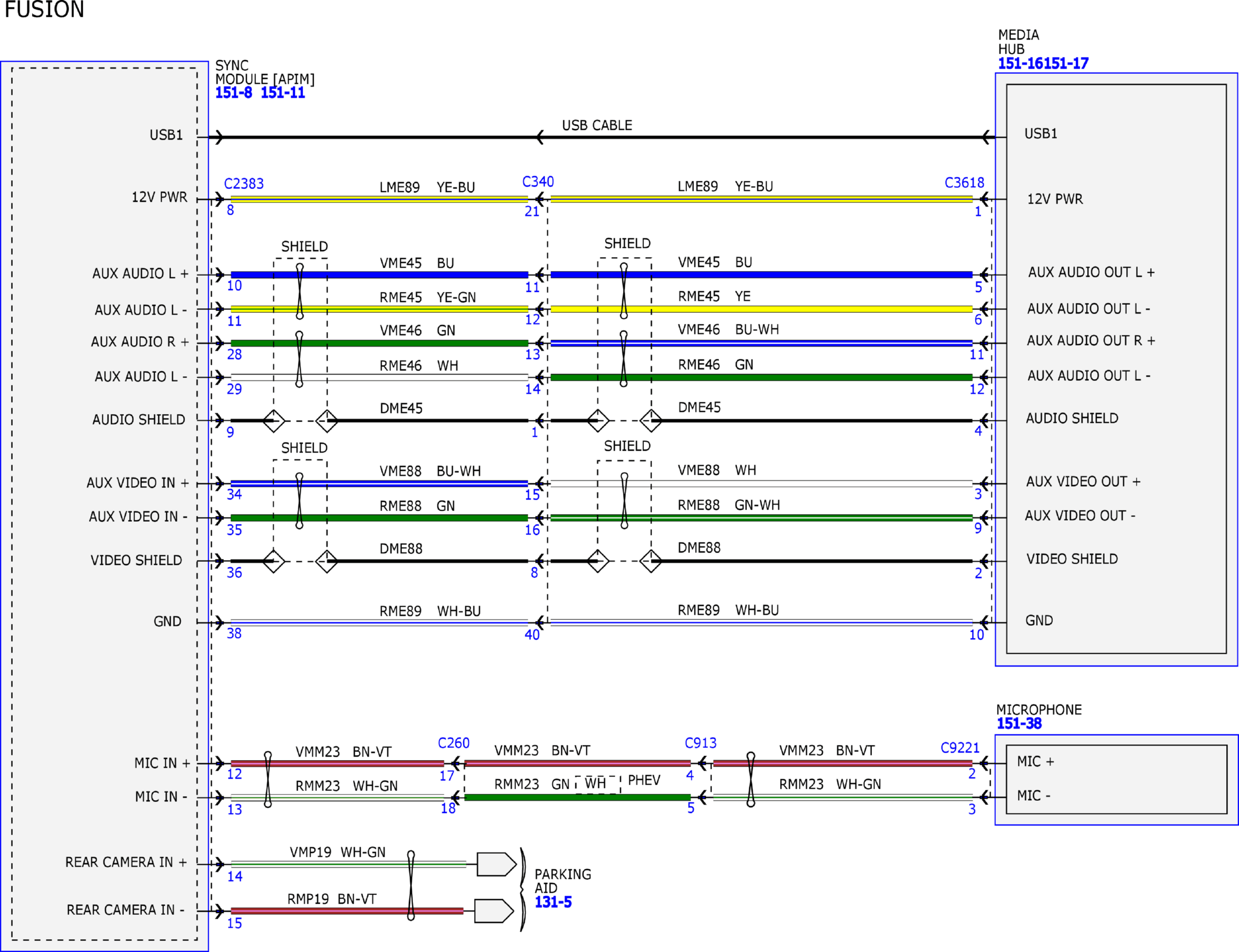

Fig 2: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (2 of 10)
Courtesy of FORD MOTOR COMPANY

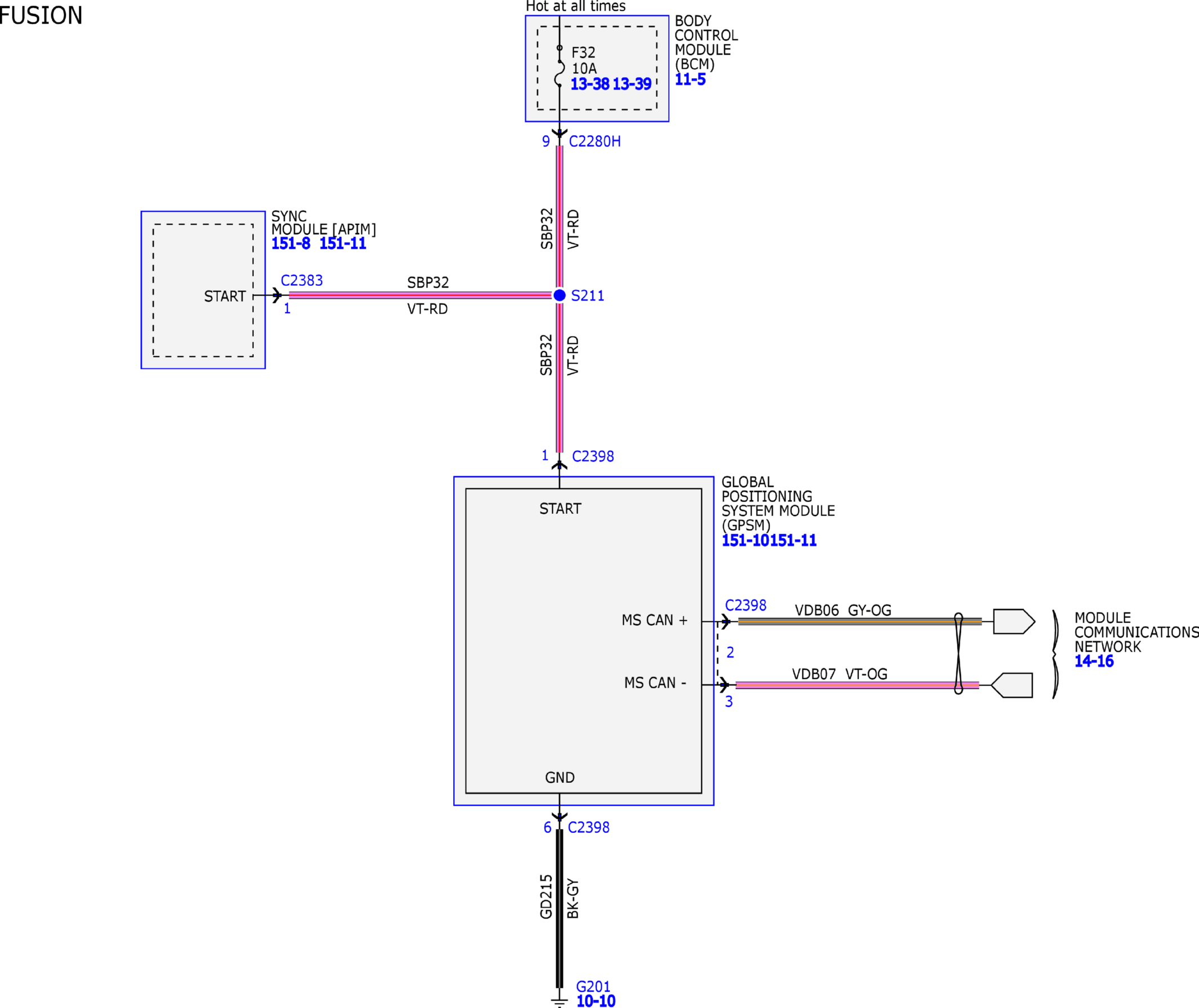

Fig 3: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (3 of 10)
Courtesy of FORD MOTOR COMPANY

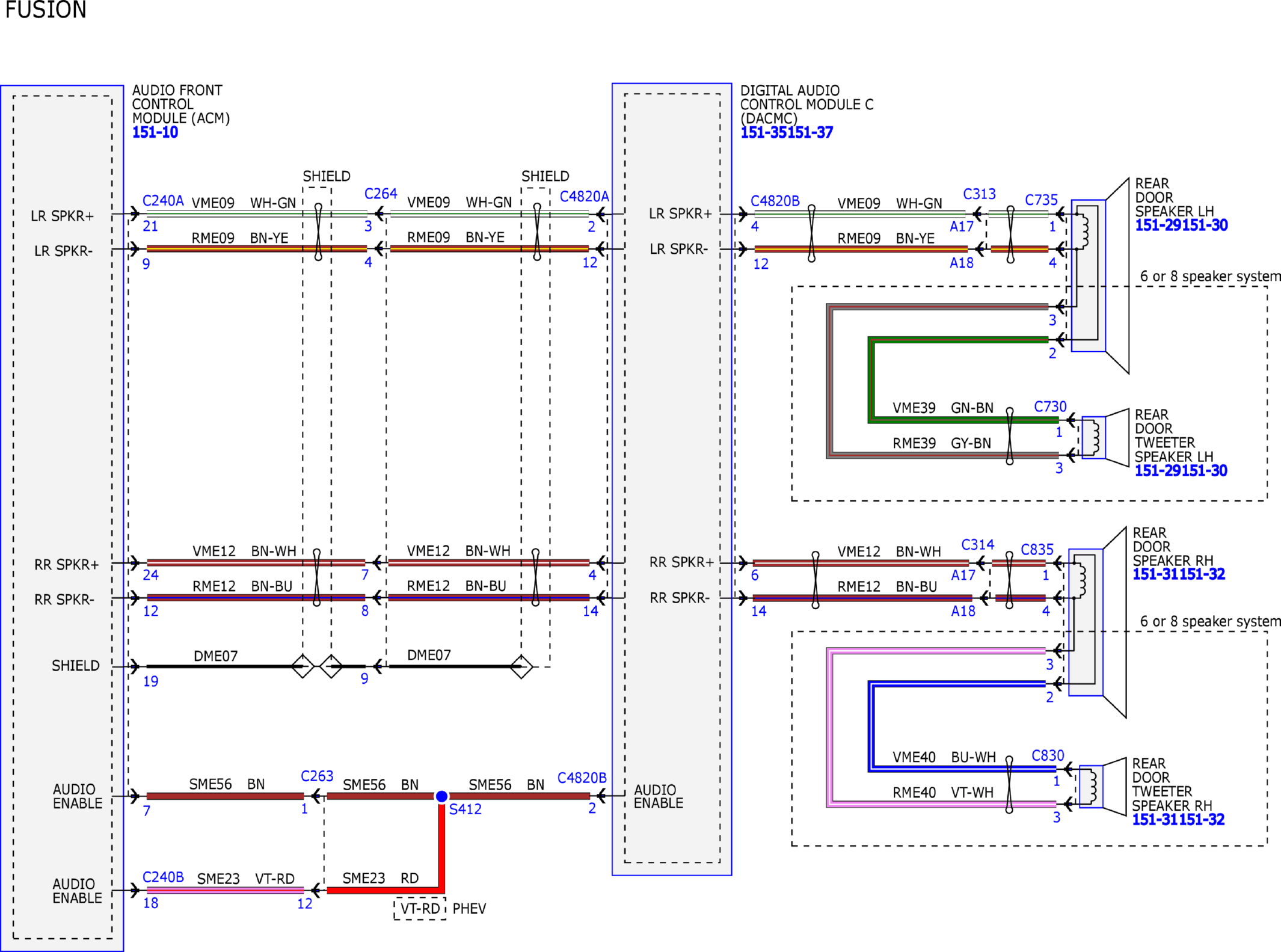

Fig 4: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (4 of 10)
Courtesy of FORD MOTOR COMPANY

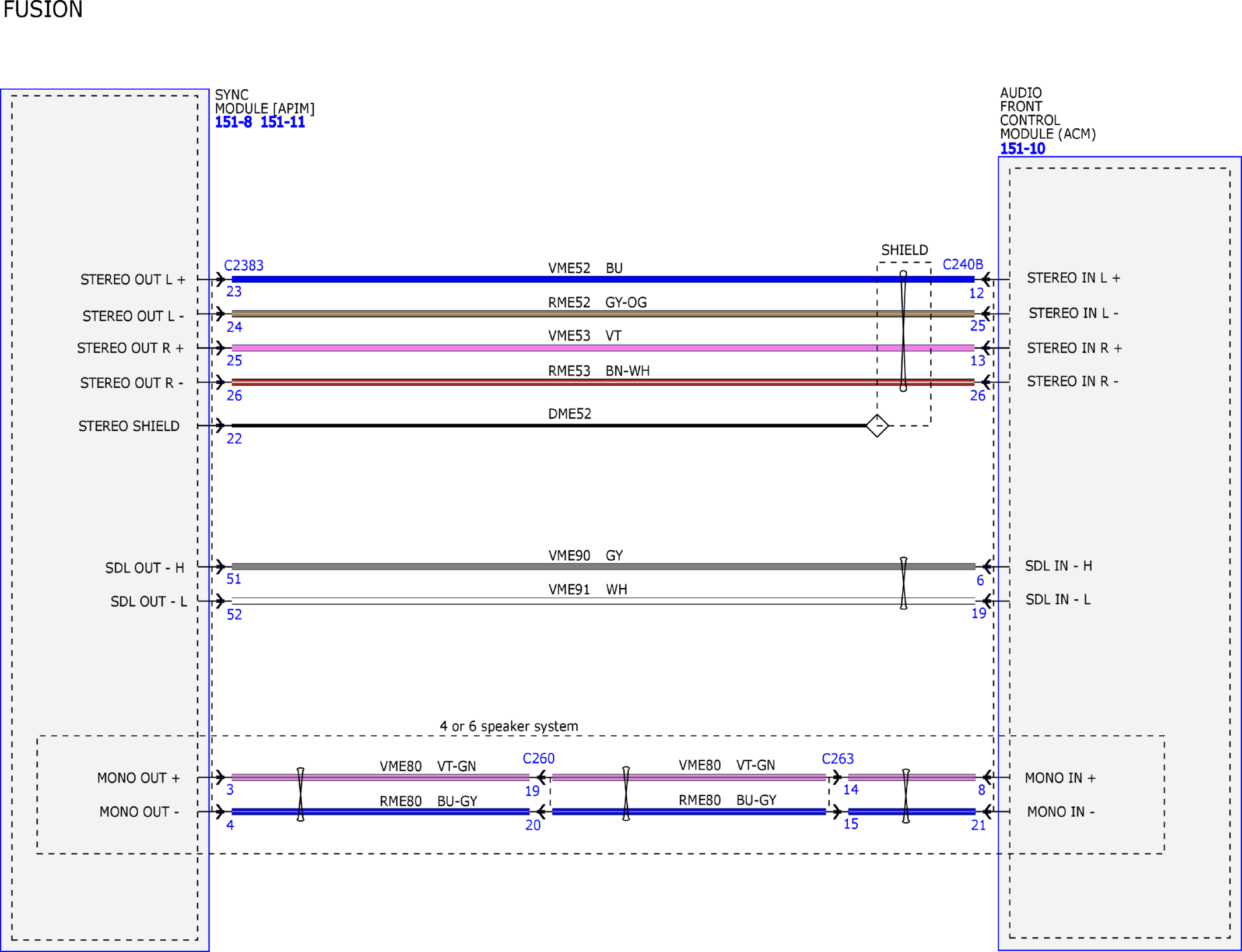

Fig 5: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (5 of 10)
Courtesy of FORD MOTOR COMPANY

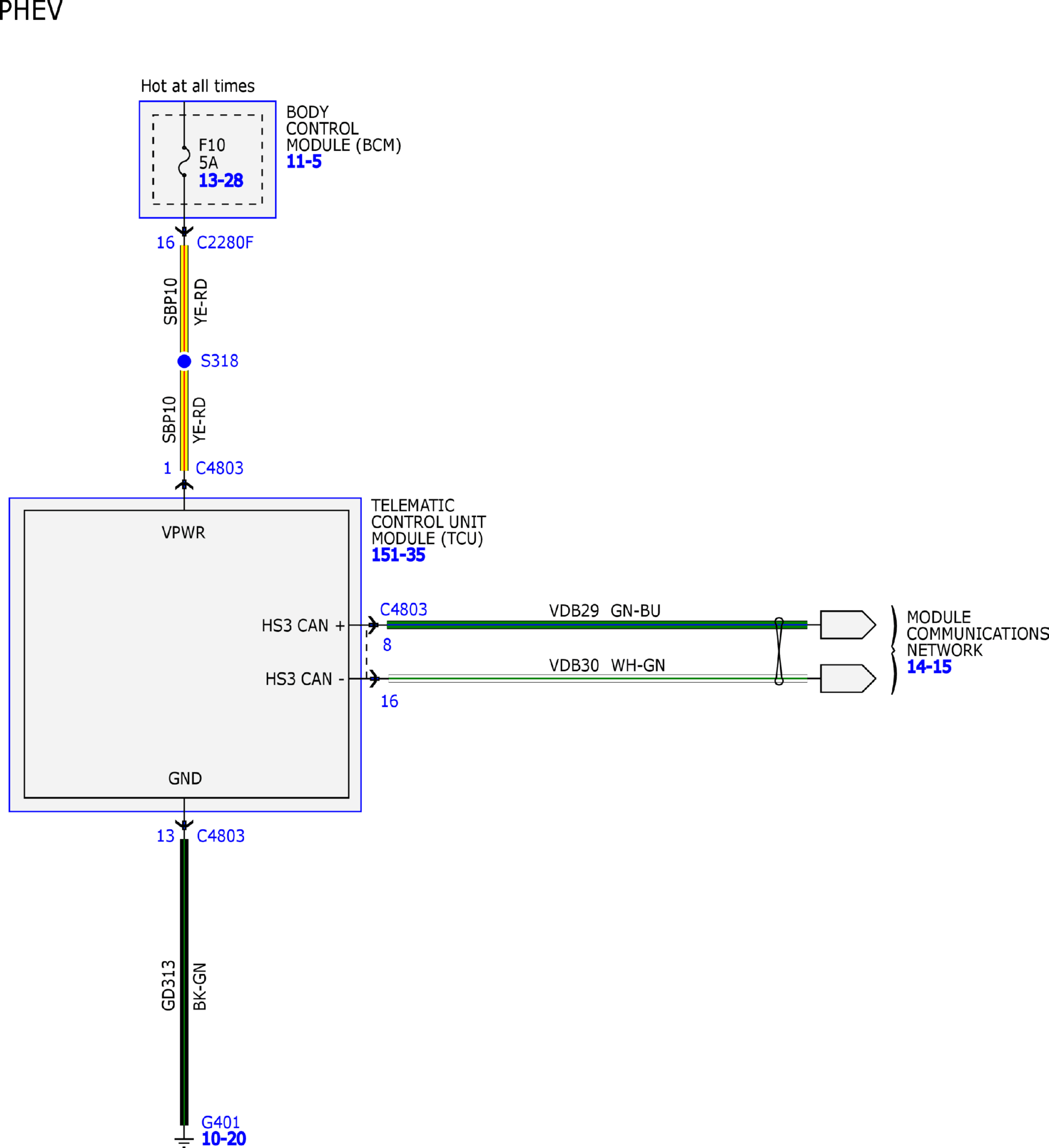

Fig 6: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (6 of 10)
Courtesy of FORD MOTOR COMPANY

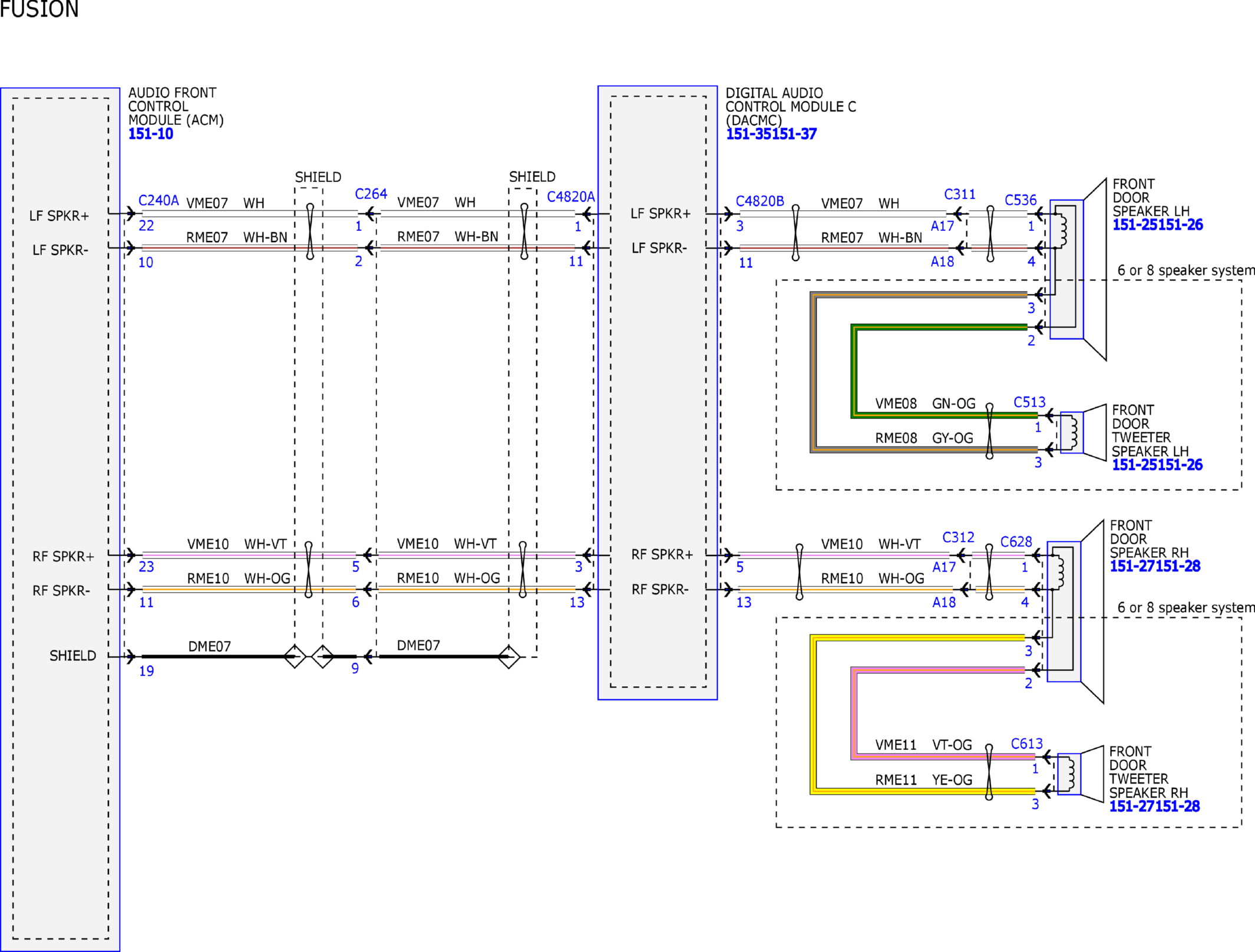

Fig 7: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (7 of 10)
Courtesy of FORD MOTOR COMPANY

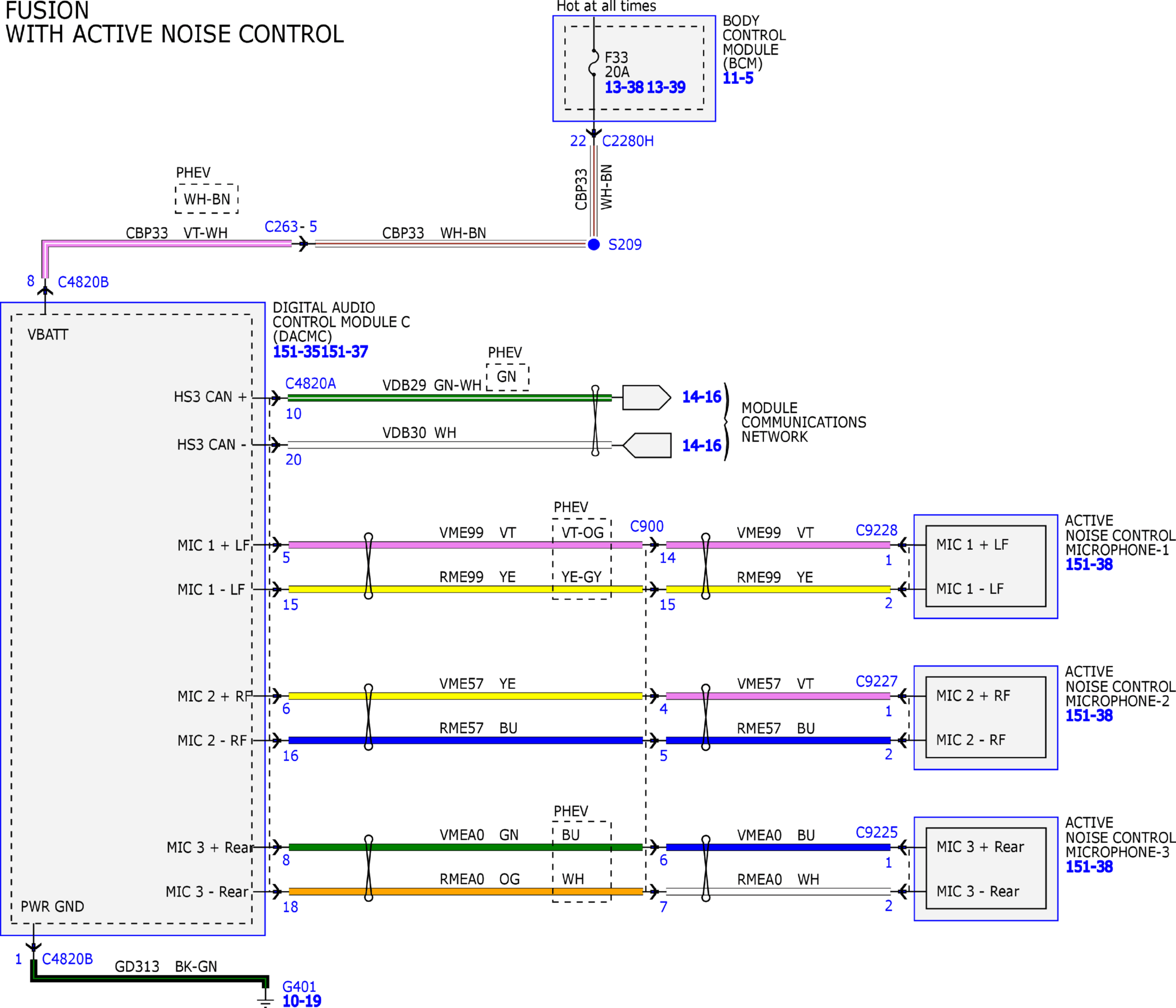

Fig 8: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (8 of 10)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (9 of 10)
Courtesy of FORD MOTOR COMPANY
Fig 10: Audio System/Navigation - With Touchscreen/Without Sony Wiring Diagram (10 of 10)
