Roof Opening Panel Shield Operating Cable and Guide: Removal
WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the roof opening panel shield (center) motor. REFER to: Roof Opening Panel Motor - Vehicles With: Panoramic Roof Opening Panel.
- 2.
Remove the roof opening panel shield. REFER to: Roof Opening Panel Shield - Vehicles With: Panoramic Roof Opening Panel.
- 3.NOTE: The header panel does not need repair after service.

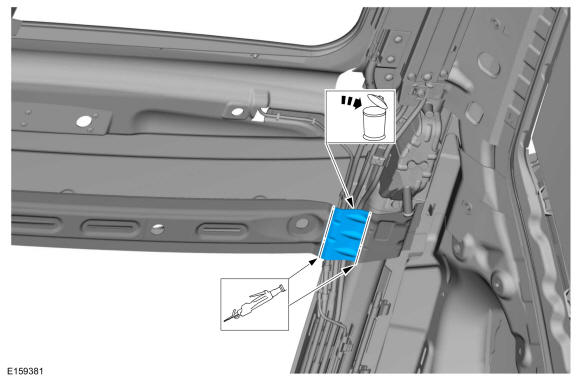

On both sides. Carefully cut and discard the portion of the header panel as shown in illustration.
- 4.NOTE: All drive and return cable housings must be repositioned in the original positions during installation.

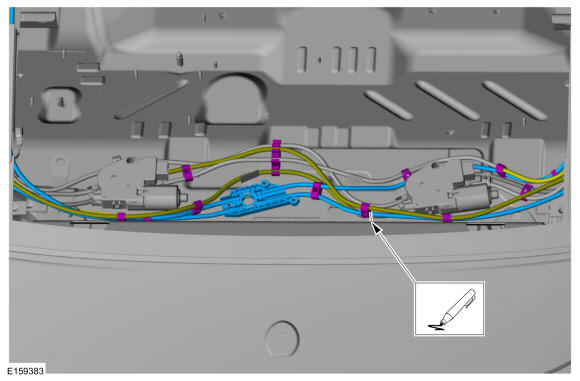

On both sides. Mark all cable housing tubes with clip/retainer locations and transfer to new cable housings for proper installation. Detach the cable housing tubes from the clip/retainers.
- 5.

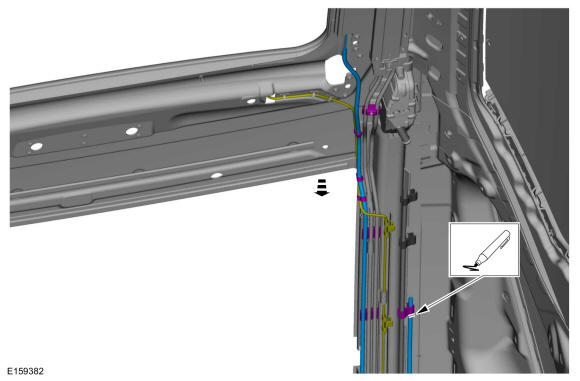

Mark all cable housing tubes with clip/retainer locations and transfer to new cable housings for proper installation. Remove the roof opening panel shield operating cable and guide.
