Roof Opening Panel Motor: Removal
WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:

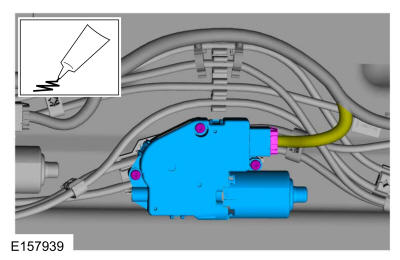

Shield motor shown in illustration, roof opening panel glass motor similar.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.
Remove the parcel shelf. REFER to: Parcel Shelf .
- 3.NOTE: If using original retainers, clean the thread locking adhesive from threads, then apply new thread locking adhesive.
Disconnect the roof opening panel motor electrical connector, remove the retainers and the roof opening panel motor.
Material
: Threadlock 262 / TA-26 (WSK-M2G351-A6)
Torque
: 58 lb.in (6.5 Nm)
