Roof Opening Panel Glass: Removal

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

2.

Fully open the roof opening panel glass.

Courtesy of FORD MOTOR COMPANY

3.

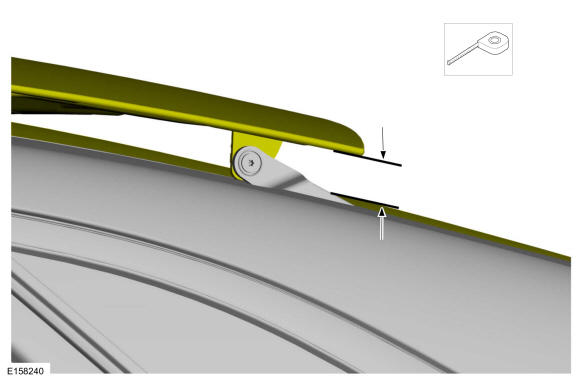

If installing a new roof opening panel glass, measure and record both sides for reference during installation.

Courtesy of FORD MOTOR COMPANY

4.

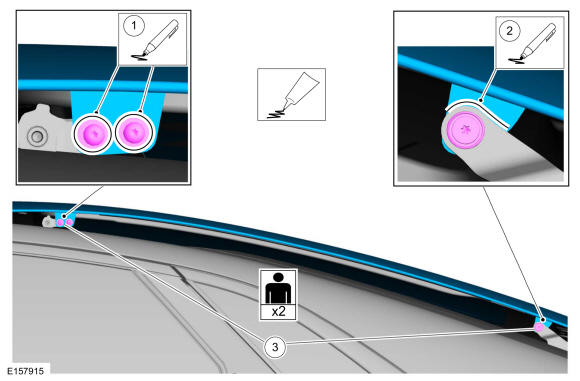

1. 1.

  If installing the original roof opening panel glass. Mark the glass location at the front.
1. 2.

  If installing the original roof opening panel glass. Mark the glass location at the rear.
1. 3.

  With the help of an assistant, remove the retainers and the roof opening panel glass.
  Material

  : Threadlock 262 / TA-26 (WSK-M2G351-A6)

  Torque

  : 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
