Roof Opening Panel Anti-Pinch Switch: Removal

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  1. 2.

    Fully open the roof opening panel glass.
GFD104779Courtesy of FORD MOTOR COMPANY

  1. 3.

    Remove the parcel shelf. REFER to: Parcel Shelf .

  1. 4.

    Disconnect the roof opening panel anti-pinch switch electrical connector.
GFD104843Courtesy of FORD MOTOR COMPANY

  1. 5.

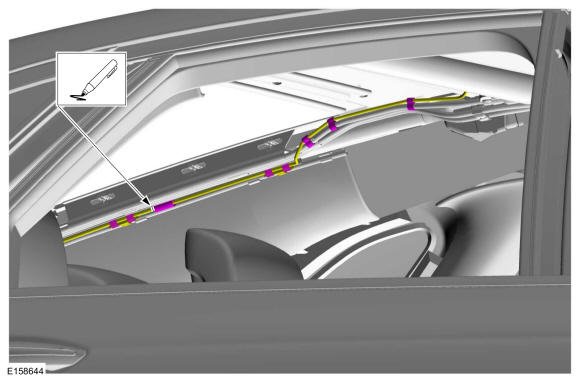

    Mark the location of all wiring harness tape and clip positions for installation.
GFD104844Courtesy of FORD MOTOR COMPANY

  1. 6.

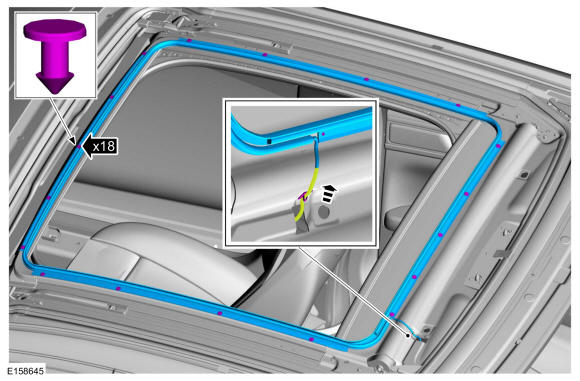

    Detach the wiring harness retainer and route the harness through the roof opening panel. Remove the retainers and the roof opening panel anti-pinch switch.
GFD104845Courtesy of FORD MOTOR COMPANY
