Rear Lifter Arm: Removal

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Open the roof opening panel 50 mm (2.0 in) past the vent position.

GFD104820

Courtesy of FORD MOTOR COMPANY

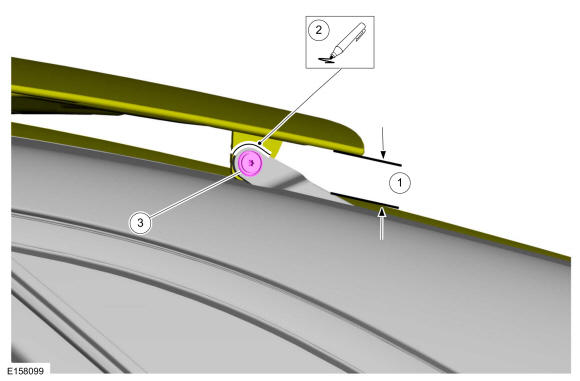

2.

On both sides.
1. 1.

  Record the roof opening panel glass to rear windshield glass as shown in illustration.
1. 2.

  Mark the roof opening panel glass location to aid in roof opening panel glass installation and remove the retainer.
1. 3.

  Remove the retainers.
  Material

  : Threadlock 262 / TA-26 (WSK-M2G351-A6)

  Torque

  : 58 lb.in (6.5 Nm)

GFD104821

Courtesy of FORD MOTOR COMPANY

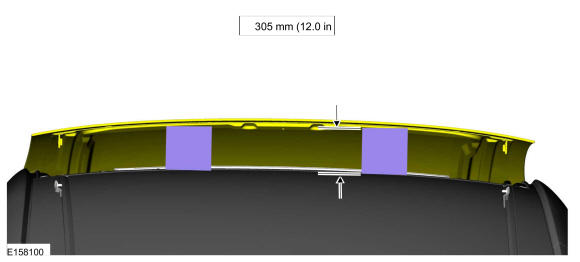

3.

Place the wooden blocks as shown in illustration.
Use the General Equipment: Wooden Block

Dimension

: 10 in (305 mm)

GFD104822

Courtesy of FORD MOTOR COMPANY

4.

Glass removed for clarity. Position the seals aside.

GFD104823

Courtesy of FORD MOTOR COMPANY

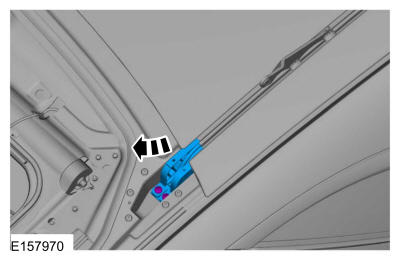

5.

Remove the retainers and the rear cam.
Material

: Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque

: 44 lb.in (5 Nm)

GFD104824

Courtesy of FORD MOTOR COMPANY

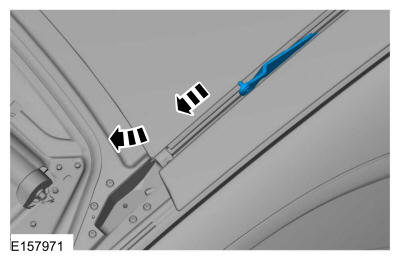

6.

Slide the rear lifter arm out and remove the rear lifter arm.

GFD104825

Courtesy of FORD MOTOR COMPANY
