Panoramic Roof Opening Panel Trim: Installation

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

1.

To install, reverse the removal procedure.

2.

NOTE: Rear trim panels do not have a seal.

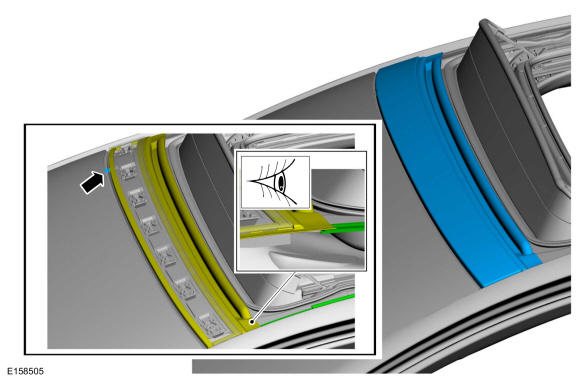

NOTE: Front trim panel seal is attached to the trim panel. Seals shown in illustration without trim panel for clarity.

For front trim panel only , after trim installation, remove tape from bottom of seal and apply pressure around the seal area and press firmly to secure to the frame.

Courtesy of FORD MOTOR COMPANY
