Front Lifter Arm: Installation

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

1.

To install, reverse the removal procedure.

2.

NOTE: The ribs on the shoe (see inset) must be on the bottom to slide properly in the frame channel.

NOTE: Air deflector may need to be held down in the closed position.

Air deflector removed for clarity.

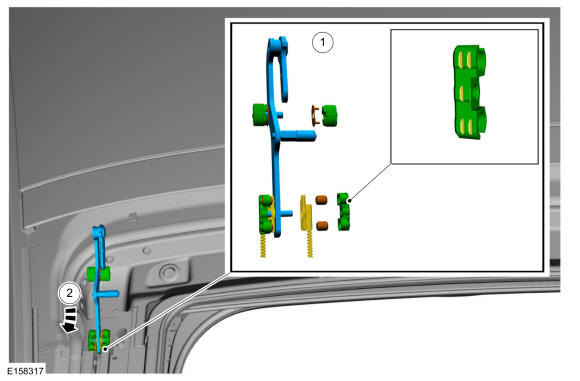

1. 1.

  Assemble the front lifter arm.
1. 2.

  Install the front lifter arm.

Courtesy of FORD MOTOR COMPANY

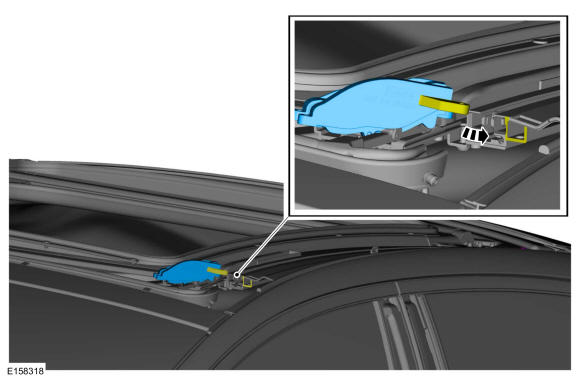

3.

Install the front cam.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: The lifter arms on both sides must be fully forward and down into the cam for proper timing of the drive cables.

On both sides. Using a rubber mallet, tap the front lifter arms into the cam drives.

Use the General Equipment: Rubber Mallet

Courtesy of FORD MOTOR COMPANY
