Air Deflector: Removal

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If using original retainers, clean the thread locking adhesive from threads, then apply new thread locking adhesive.

1.

Fully open the roof opening panel glass.

Courtesy of FORD MOTOR COMPANY

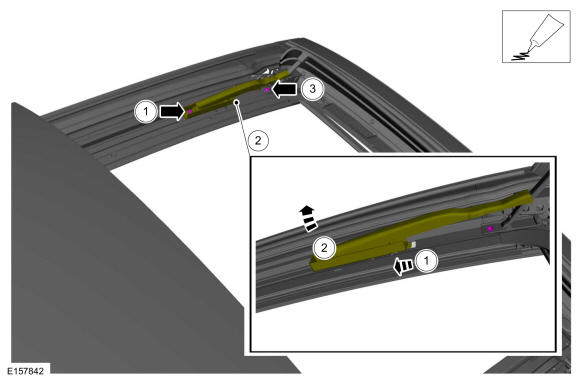

2.

NOTE: There are four short bolts that must be used for the brackets or damage to the headliner may result.

On both sides.
1. 1.

  Remove the rearward bracket retainer.
  Material

  : Threadlock 262 / TA-26 (WSK-M2G351-A6)

  Torque

  : 44 lb.in (5 Nm)
1. 2.

  Slide the bracket back and lift the arm upward.
1. 3.

  Remove the forward bracket retainer.

Courtesy of FORD MOTOR COMPANY

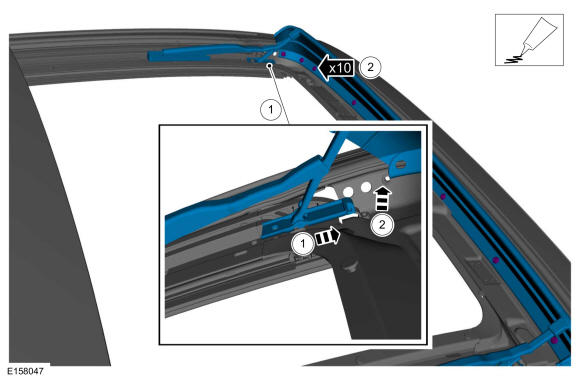

3.

On both sides. Detach the forward brackets, remove the retainers and the air deflector.
Material

: Threadlock 262 / TA-26 (WSK-M2G351-A6)

Torque

: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
