Timing Adjustment

Special Tool(s) / General Equipment

Adjustment

1. 1.


   WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.

   Refer to: Health and Safety Precautions .

1. 2.

   Remove the roof opening panel glass. REFER to: Roof Opening Panel Glass  - Vehicles With: Panoramic Roof Opening Panel.

1. 3.

   Remove both roof opening panel glass motors. REFER to: Roof Opening Panel Motor  - Vehicles With: Panoramic Roof Opening Panel.

1. 4.

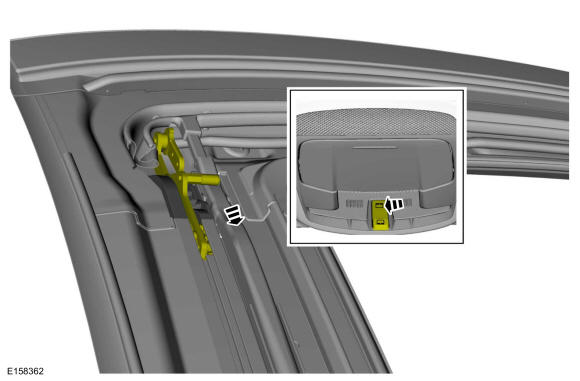

   On both sides. Slide the front lifter arm forward.

Courtesy of FORD MOTOR COMPANY

1. 5.


   NOTE: The front lifter arms on both sides must be fully forward and into the front of the cam to time the drive cables.

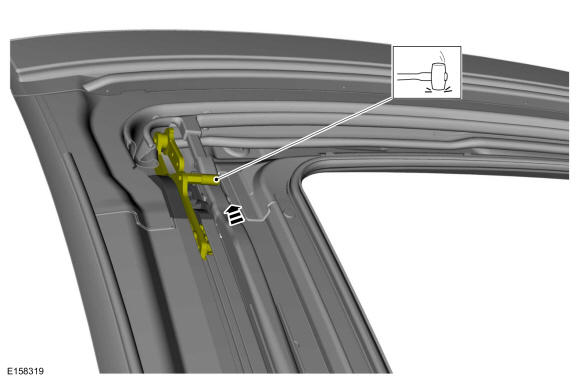

   On both sides. Using a rubber mallet, tap the front lifter arms into the cam drives.

   Use the General Equipment: Rubber Mallet

Courtesy of FORD MOTOR COMPANY

1. 6.

   Install both roof opening panel glass motors. REFER to: Roof Opening Panel Motor  - Vehicles With: Panoramic Roof Opening Panel.

1. 7.

   Move the front lifter arm rearward using the roof opening panel control switch.

Courtesy of FORD MOTOR COMPANY

1. 8.

   Install the roof opening panel glass. REFER to: Roof Opening Panel Glass  - Vehicles With: Panoramic Roof Opening Panel.
