Roof Opening Panel Manual Operation
WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
Activation
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.
Remove the parcel shelf. REFER to: Parcel Shelf .
- 3.NOTE: For manual operation of the glass motors, both motors must be moved together.

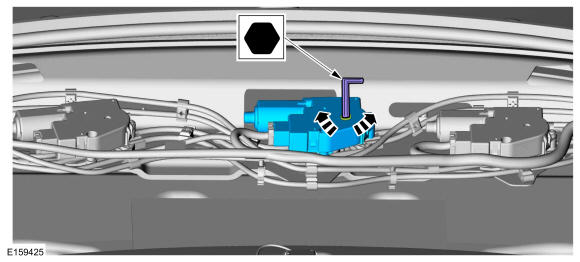

Shield motor shown in illustration, glass motors similar. Using a hex wrench, rotate the drive screw clockwise or counterclockwise to open or close the roof opening panel manually.
- 4.
Install the parcel shelf. REFER to: Parcel Shelf .
