Section 117 (Sunroof - Roof Opening Panel - Vehicles With: Panoramic Roof Opening Panel (Except Hybrid))
>>
Description And Operation
>>
Roof Opening Panel - Component Location
>>

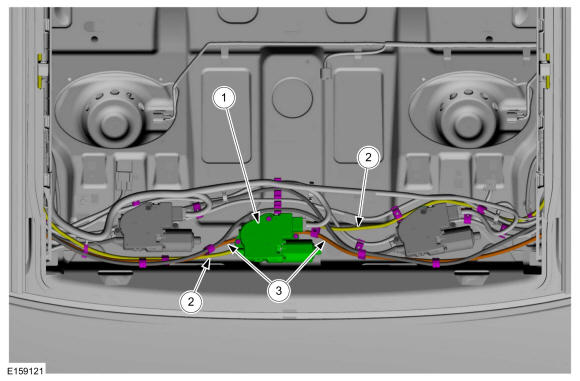

Roof Opening Panel Shield Motor (as viewed through the rear window glass)
Roof Opening Panel Shield Motor (as viewed through the rear window glass)
WARNING:
This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Roof opening panel shield motor
2
Roof opening panel shield drive cable housing
3
Roof opening panel shield return cable housing
