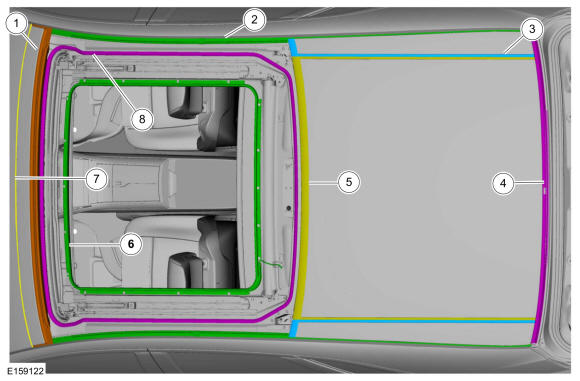

Roof Opening Panel Seals and Anti-Pinch Switch
WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Front trim panel seal (attached to front trim panel) |
| 2 |
Body side seal |
| 3 |
Track seal |
| 4 |
Decklid seal |
| 5 |
Rear glass seal |
| 6 |
Anti-pinch switch |
| 7 |
Windshield seal (attached to front trim panel) |
| 8 |
Main compression seal |
