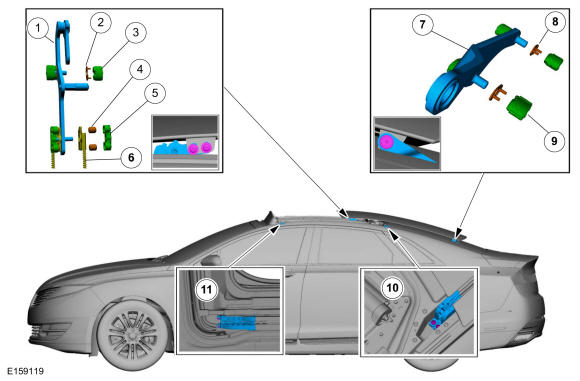

Roof Opening Panel Lifter Arms And Cams
WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Front lifter arm |
| 2 |
Front slider shoe |
| 3 |
Front slider |
| 4 |
Bushing |
| 5 |
Mechanism slider |
| 6 |
Drive cable |
| 7 |
Rear lifter arm |
| 8 |
Rear slider shoe |
| 9 |
Rear slider |
| 10 |
Rear cam |
| 11 |
Front cam |
