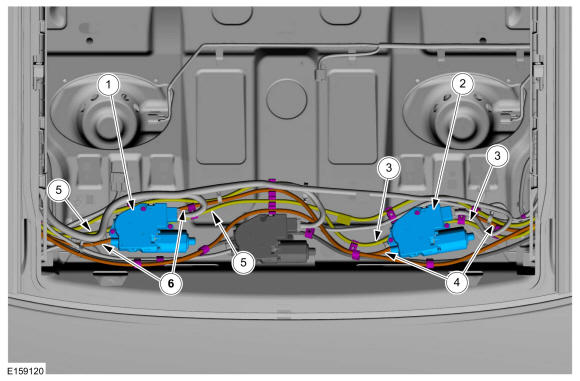

Roof Opening Panel Glass Motors (as viewed through the rear window glass)
WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|
| 1 | Secondary roof opening panel glass motor |
| 2 | Primary roof opening panel glass motor |
| 3 | Primary roof opening panel motor drive cable housing |
| 4 | Primary roof opening panel motor return cable housing |
| 5 | Secondary roof opening panel motor drive tubes |
| 6 | Secondary roof opening panel motor return cable housing |
