Roof Opening Panel Blind: Removal

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (HYBRID) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  1. 2.

    Remove the air deflector. REFER to: Air Deflector .

  1. 3.

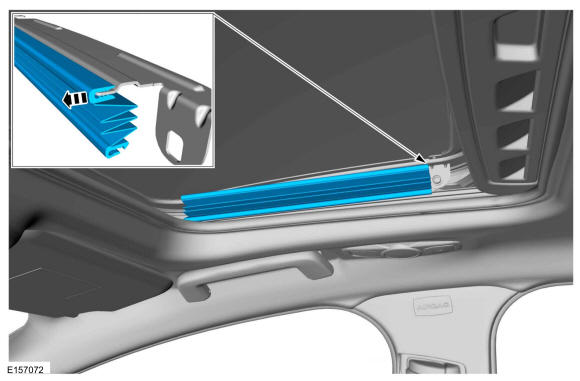

    On both sides. Detach and remove the top portion of the roof opening panel blind.
GFD107499Courtesy of FORD MOTOR COMPANY

  1. 4.

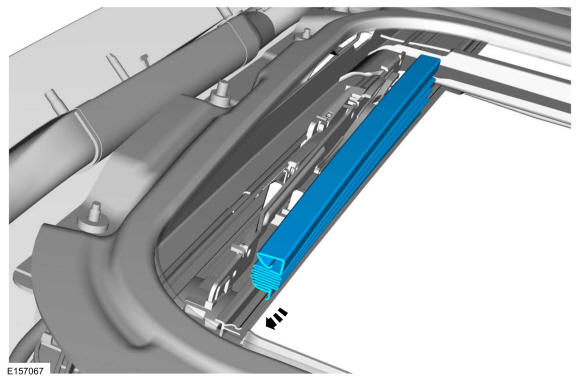

    On both sides. Slide the roof opening panel blind forward and up out of the guide track.
GFD107500Courtesy of FORD MOTOR COMPANY
