System Diagram - Non-Networked Illumination

WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

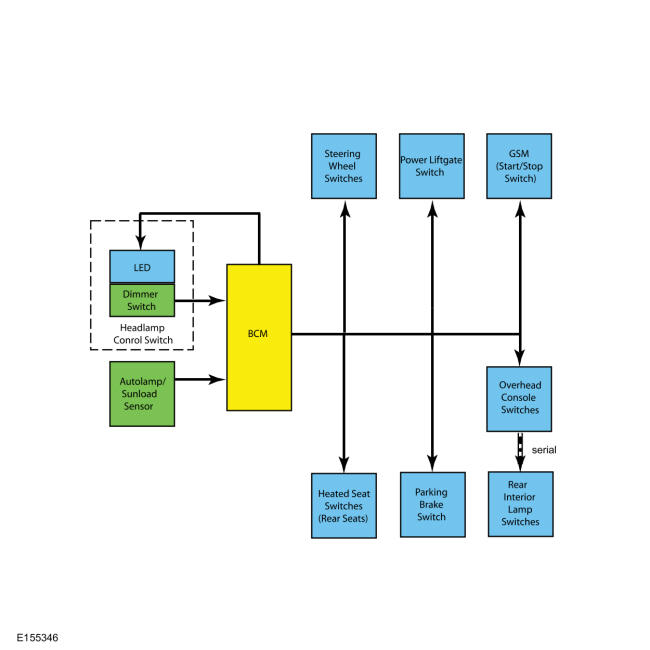

GFD103968Courtesy of FORD MOTOR COMPANY
