Brake Vacuum Sensor: Removal
WARNING: This page is about a different car, the 2015 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

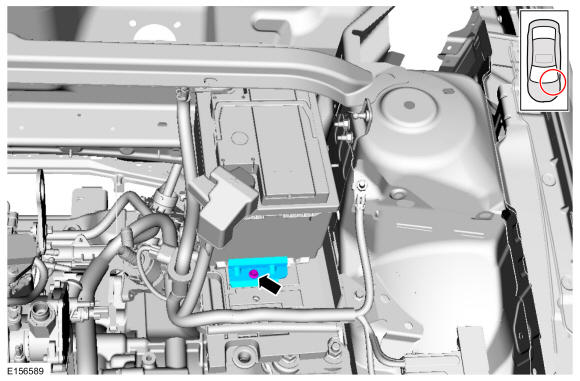

Remove the battery hold down bolt and plate.Torque: 89 lb.in (10 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 2.

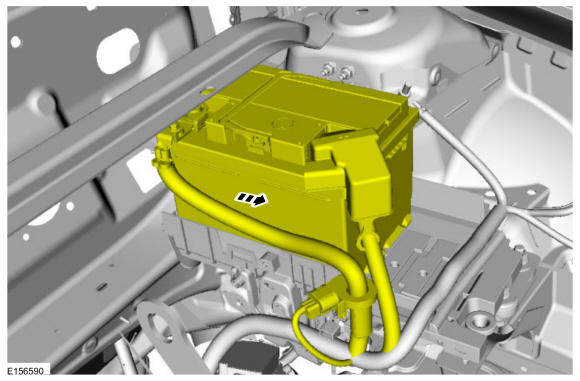

Position the battery forward.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

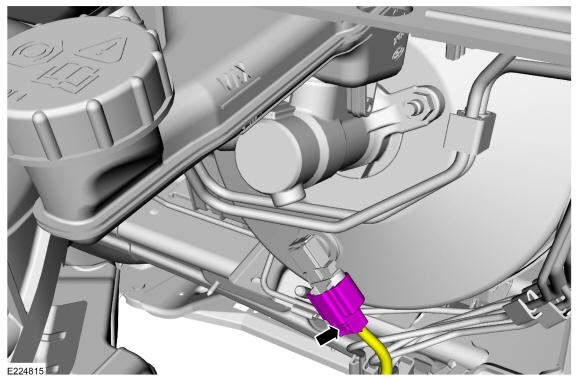

Disconnect the brake vacuum sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
NOTE:
When installing the brake vacuum sensor, make sure the sensor and electrical connector are not making contact with surrounding components or damage may occur.

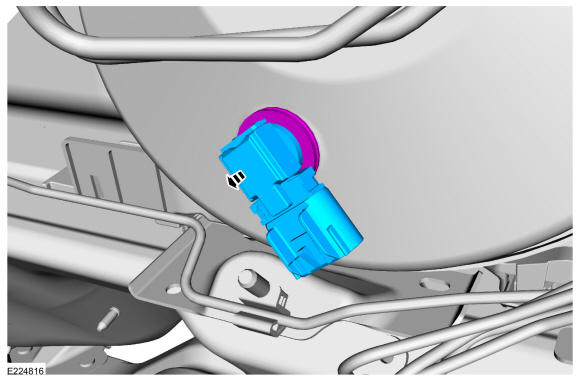

Remove the brake vacuum sensor.
 Courtesy of FORD MOTOR COMPANY
|
