The Communication Line Check
While in the self-diagnostic mode, the Communication Line Check starts after the LCD Segments Check.

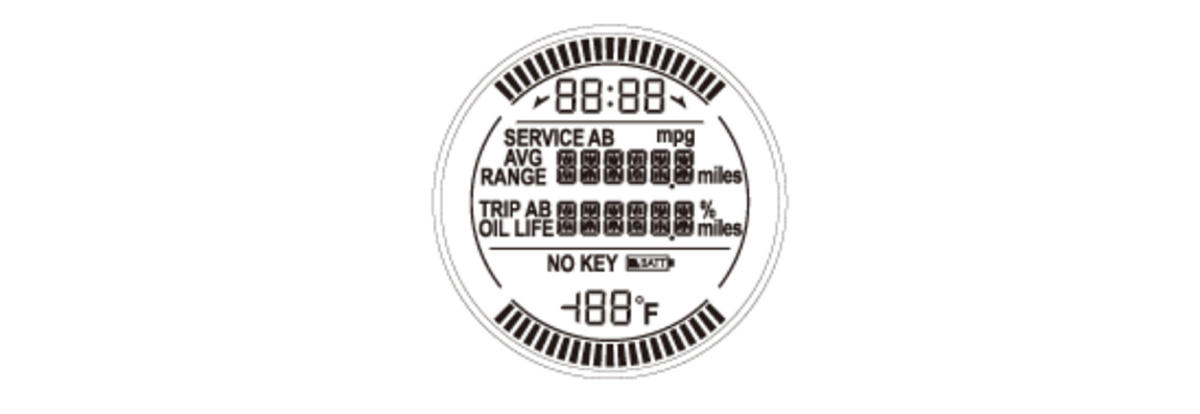

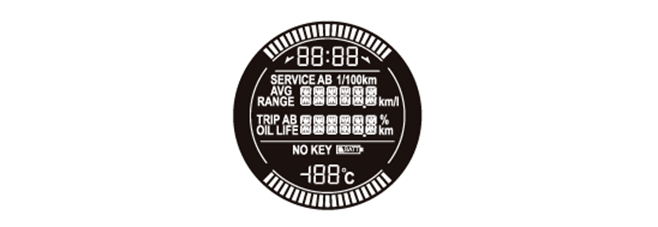

If the communication line is OK, all segments will be indicated on the information display. If there is a communication line error, the word "ERROR" will be indicated on the information display.
Error Code List
| Error code | Type of communication line (s) error |
|---|---|
| Error 1 | F-CAN communication |
| Error 2 | B-CAN communication |
| Error 12 | F-CAN and B-CAN communication |

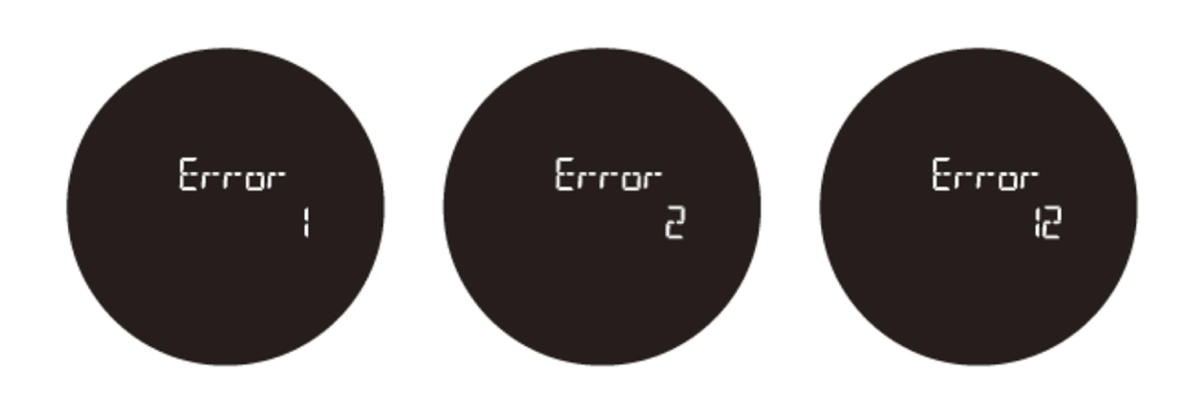

Indication Example
- If Error 1 is indicated, there is a malfunction in the communication line between the F-CAN and the gauge control module. The B-CAN is OK at this time. Check for DTCs in the F-CAN connected units and troubleshoot any DTCs.
- If Error 2 is indicated, there is a malfunction in the communication line between the B-CAN and the gauge control module. The F-CAN line is OK at this time.
- If Error 12 is indicated, there is a malfunction in the communication line between the gauge control module, the F-CAN, and the B-CAN. Check the DTCs in the F-CAN connected units and troubleshoot any DTCs.
