Fit EX, Standard Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Gauges - Testing & Troubleshooting
>>
Description
>>

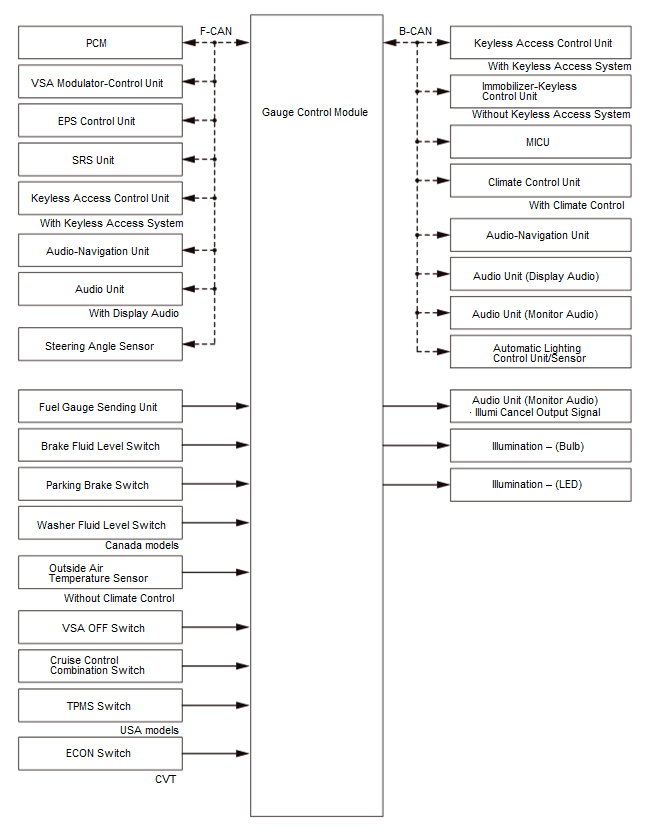

Gauges System Description - System Diagram
Gauges System Description - System Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
